GYTS GYTS53 Underground Armoured Optical Fiber Cable
Armoured Optical Fiber Cable GYTS GYTS53 Underground Fiber Cable
Features:
Choice of Fibre Type
Colour code of Fiber
High water resistance
High crush resistance
Choice Sheath Material
Low attenuation and dispersion
Good flexibility and bending performance
Appicable fields:
Duct/Underground
Optical Characteristics:
| Fiber Type | G.652 | G.655 | 50/125^m | 62.5/125^m | |
|
Attenuation (+20X) |
850nm | <3.0 dB/km | <3.3 dB/km | ||
| 1300nm | <1.0 dB/km | <1.0 dB/km | |||
| 1310nm | <0.36 dB/km | <0.40 dB/km | |||
| 1550nm | <0.22 dB/km | <0.23 dB/km | |||
| Bandwidth | 850nm | >500 MHz-km | >200 MHz-km | ||
| 1300nm | >500 MHz-km | >500 MHz-km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength cc | <1260nm | <1450 nm | |||
Structure and Technical Specifications
|
Fiber Count |
Nominal Diameter (mm) |
Nominal Weight (kg/km) |
Max Fiber Per Tube |
Max No. of (Tubes+fillers) |
Allowable Tensile Load (N) |
Allowable Crush Resistance (N/100mm) |
||
| Short Term | Long Term | Short Term | Long Term | |||||
| 2~36 | 10.3 | 109 | 6 | 6 | 1500 | 600 | 1000 | 300 |
| 38~72 | 11.5 | 145 | 12 | 6 | 1500 | 600 | 1000 | 300 |
| 74~96 | 13.5 | 175 | 12 | 8 | 1500 | 600 | 1000 | 300 |
| 98~120 | 14.8 | 209 | 12 | 10 | 1700 | 600 | 1000 | 300 |
| 122~144 | 16.6 | 249 | 12 | 12 | 2000 | 600 | 1000 | 300 |
| 146~216 | 16.7 | 254 | 12 | 18(2 layers) | 2000 | 600 | 1000 | 300 |
| 218~288 | 19.0 | 325 | 12 | 24(2 layers) | 2500 | 600 | 1000 | 300 |

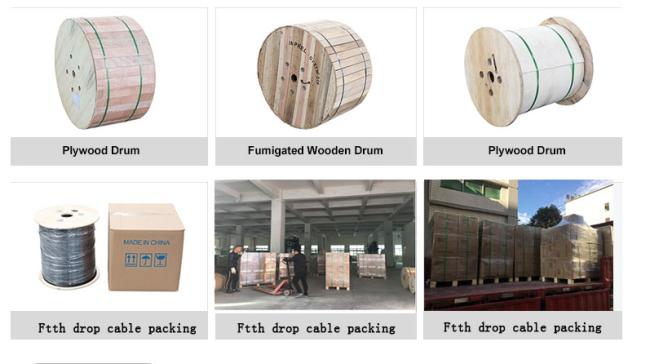

Packing:
FAQ:
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
