Armored Underground GYTA Duct Outdoor Fiber Optic Cable Aluminium Tape
Price:
Negotiable
MOQ:
1000m
Delivery Time:
2-4day
Brand:
jiqian
Product Description

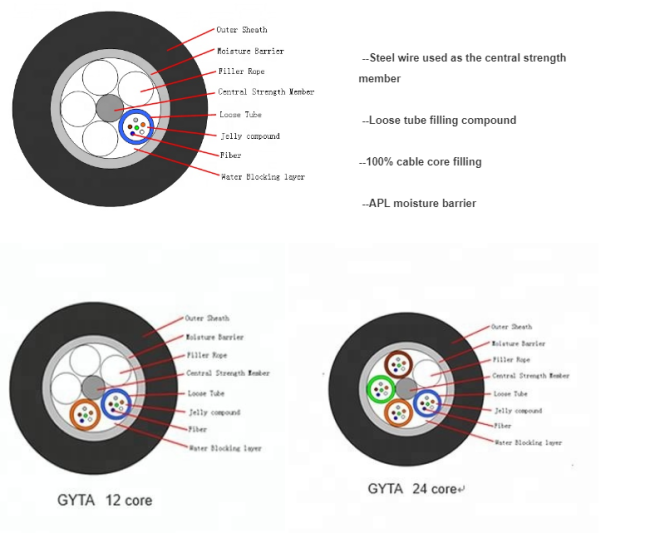

GYTA In the GYTA cable, single-mode/multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound.Tubes and fillers are stranded around the strength member into a circular cable core. An APL/PSP is applied around the core. Which is filled with the filling compound to protect it. Then the cable is completed with a PE sheath.
Characteristics:
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
|
Optical Characteristics
|
|||||
|
|
G.652
|
G.655
|
50/125μm
|
62.5/125μm
|
|
|
Attenuation
(+20℃) |
'@850nm
|
|
|
≤3.0 dB/km
|
≤3.0 dB/km
|
|
'@1300nm
|
|
|
≤1.0 dB/km
|
≤1.0 dB/km
|
|
|
'@1310nm
|
≤0.36 dB/km
|
≤0.40 dB/km
|
|
|
|
|
'@1550nm
|
≤0.22 dB/km
|
≤0.23 dB/km
|
|
|
|
|
Bandwidth
(Class A) |
'@850nm
|
|
|
≥500 MHz·km
|
≥200 MHz·km
|
|
'@1300nm
|
|
|
≥1000 MHz·km
|
≥600 MHz·km
|
|
|
Numerical Aperture
|
|
|
0.200±0.015NA
|
0.275±0.015NA
|
|
|
Cable Cut-off Wavelength λcc
|
≤1260nm
|
≤1480nm
|
|
|
|
|
Tensile Strength |
Long Term (N) |
1000 |
|
Short Term (N) |
3000 |
|
|
Crush Resistance |
Long Term (N) |
1000 |
|
Short Term (N) |
3000 |
|
|
Bending Radius |
Static (mm) |
10D |
|
Dynamic (mm) |
20D |
|
Fiber Count
|
Dia
(mm)
|
Weight
(kg/km)
|
Allowable Tensile Strength(N)
|
Allowable Crush Resistance
(N/100mm)
|
||
|
Short Term
|
Long Term
|
Short Term
|
Long Term
|
|||
|
2-30
|
9.5
|
86
|
≥1500
|
≥600
|
≥1000
|
≥300
|
|
32-60
|
10.2
|
99
|
||||
|
62-72
|
10.9
|
123
|
||||
|
74-84
|
12.2
|
148
|
||||
|
86-96
|
12.2
|
148
|
||||
|
98-120
|
14.0
|
183
|
||||
|
122-144
|
14.5
|
220
|
||||
|
146-216
|
16.1
|
229
|
||||
|
218-300
|
18.5
|
290
|
||||
FAQ:
1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!
2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available
Yes, we are factory in guangzhou china, welcome to visit us!
2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available
3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.
4.What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.
5.Delivery time?
Generally 3-7 working days, also it is according to qty.
6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.
