All Dielectric Anti Rodent Non Metallic Fiber Optic Cable GYFTY
Price:
Negotiable
MOQ:
1km
Delivery Time:
5-8 work days
Brand:
JQ/OEM
Product Description

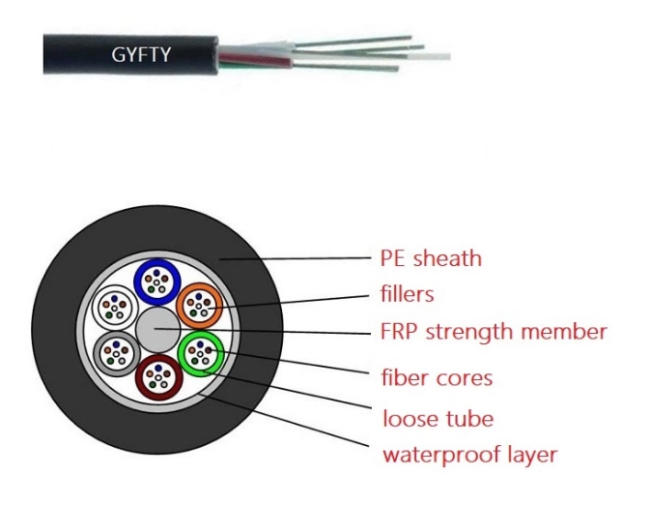

All Dielectric Anti Rodent Cable Non-Metallic Fiber Optic Cable GYFTY
Features
1. small diameter, lighter and softness;
2. reasoning designation,excellent water-blocking performance;
3. FRP as non-metallic central strength member;
4. good electromagnetism resistance ability.
2. reasoning designation,excellent water-blocking performance;
3. FRP as non-metallic central strength member;
4. good electromagnetism resistance ability.
5. jelly-filled, fiber contained loose tube and PP filler
6. water blocking tape, PE outer sheath
Application
Long-distance communication, local trunk line, CATV & computer networks system
Adopted to Outdoor distribution
Suitable for aerial duct and Direct Buried method
Optical Characteristics
|
|
|
G.652D |
50/125um |
625/125μm |
|
Attenuation |
@850nm |
|
≤3.0dB/km |
≤3.0dB/km |
|
(+20°C) |
@1300nm |
|
≤1.0dB/km |
≤1.0dB/km |
|
|
@1310nm |
≤0.36dB/km |
|
|
|
|
@1550nm |
≤0.22dB/km |
|
|
|
Bandwidth(ClassA) |
@850nm |
|
2500MHzkm |
2200MHz:km |
|
|
@1300nm |
|
21000MHz-km |
2600MHzkm |
|
NumericalAperture |
|
|
0.200+0.015NA |
0.275+0.015NA |
|
CableCut- offWavelengthλcc |
|
≤1260nm |
|
|
Cable Parameters
| Fiber count | Structure | Fibers per tube |
Loose tube diameter (mm) |
CSM diameter/pad diameter (mm) |
Nominal Thickness of outer jacket (mm) |
Cable diameter/ Height (mm) |
Cable weight (kg/km) |
| 4 | 1+5 | 4 | 1.8±0.1 | 1.4/1.4 | 1.6 | 8.8±0.2 | 62 |
| 6 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.6 | 8.8±0.2 | 62 |
| 8 | 1+5 | 8 | 1.9±0.1 | 1.4/1.4 | 1.6 | 8.8±0.2 | 62 |
| 12 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.6 | 9.0±0.2 | 65 |
| 24 | 1+5 | 6 | 1.9±0.3 | 1.4/1.4 | 1.6 | 9.2±0.2 | 68 |
| 36 | 1+6 | 12 | 2.2±0.1 | 1.6/1.6 | 1.6 | 9.2±0.2 | 68 |
| 48 | 1+5 | 12 | 2.2±0.1 | 1.6/1.6 | 1.6 | 9.2±0.2 | 68 |
| 72 | 1+6 | 12 | 2.2±0.1 | 2.0/2.0 | 1.6 | 10.6 | 80 |
| 96 | 1+8 | 12 | 2.2±0.1 | 2.2/3.5 | 1.6 | 12.0 | 103 |
| 144 | 1+12 | 12 | 2.2±0.1 | 2.2/6.4 | 1.8 | 15.0 | 180 |

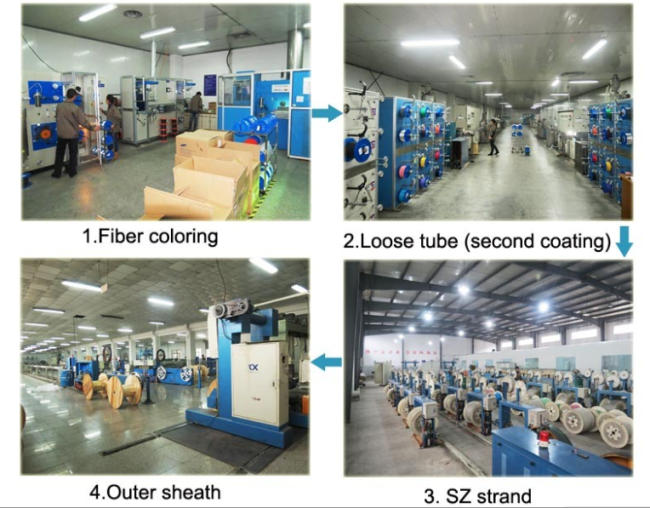

Producion line

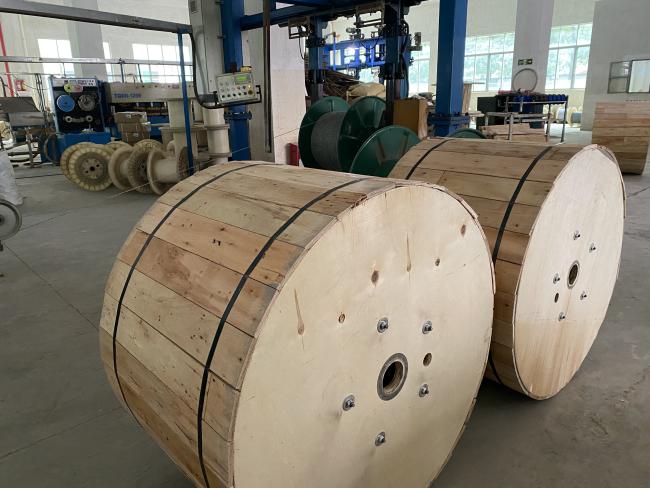

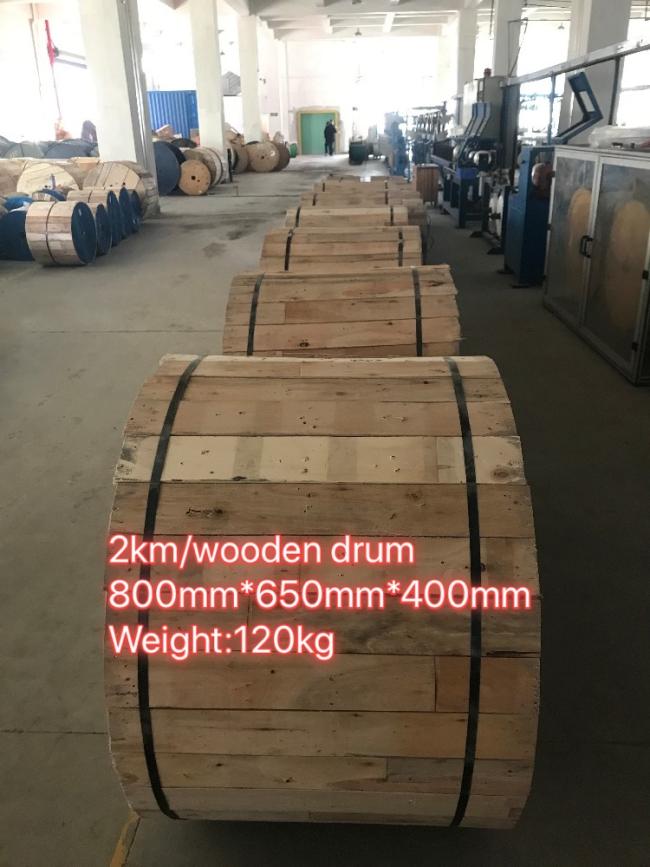

Packing detail
FAQ
1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!
2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.
3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .
5.Can you accept the OEM service?
5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
