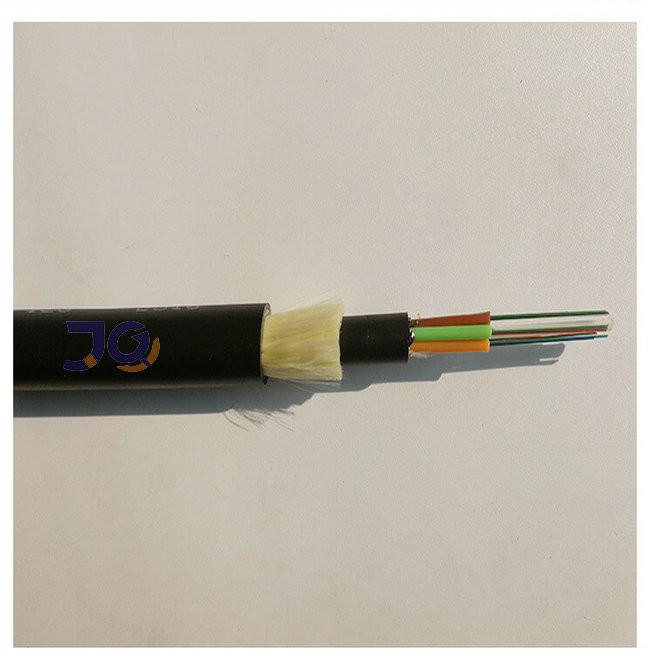

Customized Black G652D FRP ADSS Fiber Optic Cable
Price:
Negotiable
MOQ:
1km
Delivery Time:
5-8 work days
Brand:
JQ/OEM
Product Description
All-Dielectric self-supporting aerial ADSS 144 Cores outdoor Fiber Optic Cable
ADSS-144B1-PE-100
Benefits
- Fiber Count up to 216f
- The dry water blocking materials can easily be removed without the use of cable cleaning solvents, yielding significant labor cost savings
- Suitable for all types of aerial lines
- Rapid deployment
- Installs on live power lines
- Available for long, medium and short spans
Fiber Types
- G.651 multi-mode fiber
- G.652D single-mode fiber
- G.655 NZDS fiber for DWDM applications
Full range of protections
- Water Blocked
Full range of applications
- Outdoor
- Aerial
Optional protections
- Track resistant
|

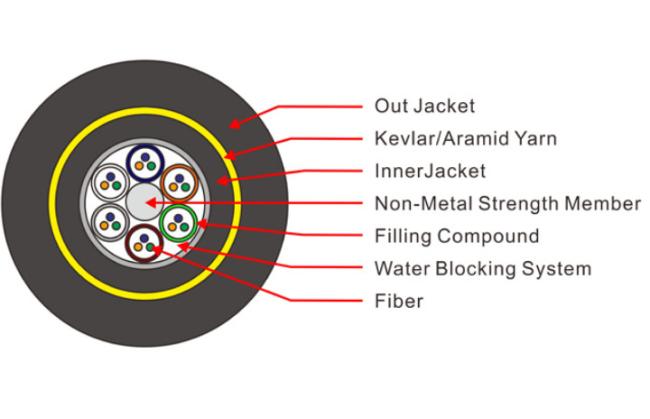

Cable structure |
product name | ADSS-144B1-PE-100 |
|
Center strengthen core FRP |
3.0mm | |
|
Loose tube (filling gel) |
2.2±0.1mm | |
|
Outsheath thickness PE |
1.8±0.2mm | |
|
Cable diameter |
15.2±0.3mm | |
|
cable weight |
175±10%kg/km | |
|
Loose tube(pcs) |
12 | |
|
Each tube contains fibers |
12cores | |
|
Loose tube color |
Blue,Orange,Green,Brown,Gray,Natural, Red,Black, Yellow,Purple,Pink,Aqua |
|
|
Optical fiber color |
Blue,Orange,Green,Brown,Gray,Natural, Red,Black, Yellow,Purple,Pink,Aqua |
Optical Cores Characteristics:
| G.652D | 50/125μm | 62.5/125μm | OM3-300 | ||
| Attenuation (+20℃) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ≤3.0 dB/km | |
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ≤1.0 dB/km | ||
| @1310nm | ≤0.36 dB/km | ||||
| @1550nm | ≤0.22 dB/km | ||||
| Bandwidth(Class A) | @850nm | ≥500 MHz·km | ≥600 MHz·km | ≥600 MHz·km | |
| @1300nm | ≥1000 MHz·km | ≥1000 MHz·km | ≥1000 MHz·km | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelength λcc | ≤1260nm | ||||
Package Detail

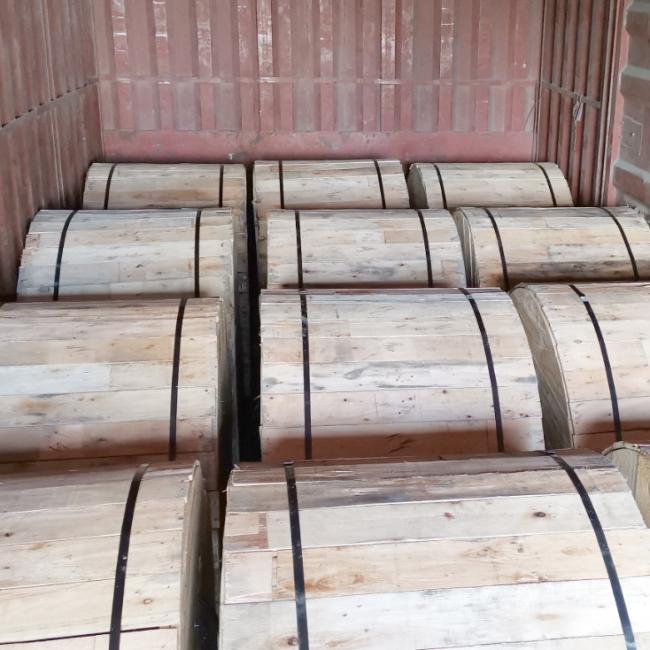

Export Wooden drum,Normal shipping length of the cable will be 1~4km.
Other length is also available if required by buyer.
Mark:Usually we only attach the test report on the packaging, but your request is available too.
For example:
A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length
Shipping:
By sea/by air or express delivery,it depends on the order quantity
Lead time:
| Quantity(km) | 1-300 | Above 300 |
| Earliest time(day) | 7-10 | Negotiable |
