Aluminium Wires G652D Loose Tube Stranded Fiber Optic Gyta Cable
Price:
Negotiable
MOQ:
1000m
Delivery Time:
2-4day
Brand:
JQ
Product Description

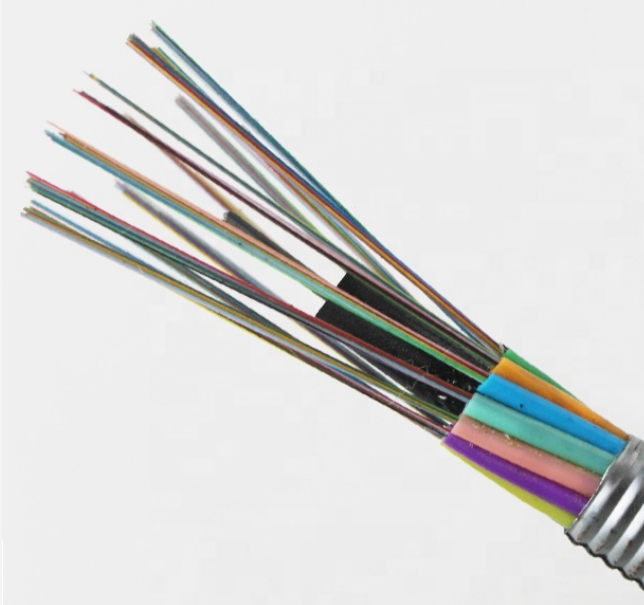

The fibers, 125μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.
Characteristics:
1.Good mechanical and temperature performance
2.High strength looes tube that is hydrolysis resistant
3.Special tube filling compound ensure a critical protection of fiber
4.Specially designed compact structure is good at preventing loose tubes from shrinking
Standards and Certificate:
Fiber optical cable complies with Standard YD/T 769-2003,IEC60794-1
Certificate:CE ROHS ISO900
Product Paramenters
|
Cable Type
|
Double-Armored Outdoor
|
|
Construction
|
Stranded Loose Tube
|
|
Inner/Outer Jacket
|
PE (Black)
|
|
Cable Diameter
|
12.5mm
|
|
Armor Layer
|
Corrugated Steel Tape and Aluminum Tape
|
|
Tensile Strength (long/short term)
|
1000/3000N
|
|
Bending Radius (long/short term)
|
10D/20D(mm)
|
|
Fiber Count
|
2-96 cores
|
|
Fiber Type
|
Singlemode G.652D
|
|
Central Strength Member
|
Steel Wire
|
|
Weight
|
200kg/km
|
|
Application
|
Buried and Duct
|
|
Crush Load (long/short term)
|
1000/3000 (N/100mm)
|
|
Operating/Storage Temperature
|
-40 to +60C
|
FAQ:
1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!
2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available
3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.
4.What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.
5.Delivery time?
Generally 3-7 working days, also it is according to qty.
6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.
