FTTH Central Tube FRP Strength Dielectric 12 Core Adss Fiber Optic Cable

Price Negotiable

Price: Negotiable

MOQ: 2km

Delivery Time: 5-8 work days

Brand: JQ/OEM

Product Description

FTTH Outdoor Central Tube FRP Strength Round Optical Cable All Dielectric 2-12 Core Fiber Optic Cable GYFXY

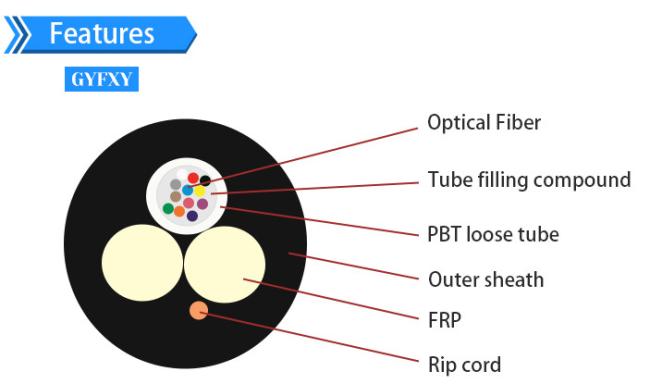

Non-Armored Uni-Tube optical cable with fibers placed in loose buffer tube.The cable core is protected with jelly to prevent water intrusion and migration, and coverwith a black polyethylene out jacket. Two embedded FRP or metallic wire provide desire tension.

Feature

Small Size and Ligth Weight

Two FRP as strength member to provide good tensile performance

Gel Filled or gel free , good waterproof performance

Low price ,high fiber capacity

applicable for short span aerial and duct installation

Optical Characteristics

Items		Unit	Specification
Items		Unit	G652D
Mode Field Diameter	1310nm	um	9.2±0.4
Mode Field Diameter	1550nm	um	10.4±0.5
Cladding Diameter		um	124.8±0.7
Cladding Non-Circularity		%	≤0.7
Core-Cladding Concentricity Error		um	≤0.5
Coating Diameter		um	245±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		um	≤12
Cable Cutoff Wavelength		nm	acc≤1260
Attenuation(max.)	1310nm	dB/km	≤0.36
Attenuation(max.)	1550nm	dBkm	≤0.22

Technical parameter

Cable Core	Unit	2F	4F	6F	8F	10F	12F
No. Of Tubes		1	1	1	1	1	1
No. Of fibers	core	2	4	6	8	10	12
Fiber Counts in tube	core	2	4	6	8	10	12
Cable Diameter	mm	7.0mm±0.2			0.8±0.2
Cable Weight	Kg/km	40±10			45±10
Allowable tensile Strength	N	Span=80,1.5*P
Allowable crush resistance	N	1000N
Operation temperature	℃	-20℃ to +65℃
