Double Sheath Armored 48 Cores GYTY53 Direct Burial Fiber Optic Cable
Underground Direct Buried Double Sheath Armored 24 36 48 Cores Optical Cable GYTY53

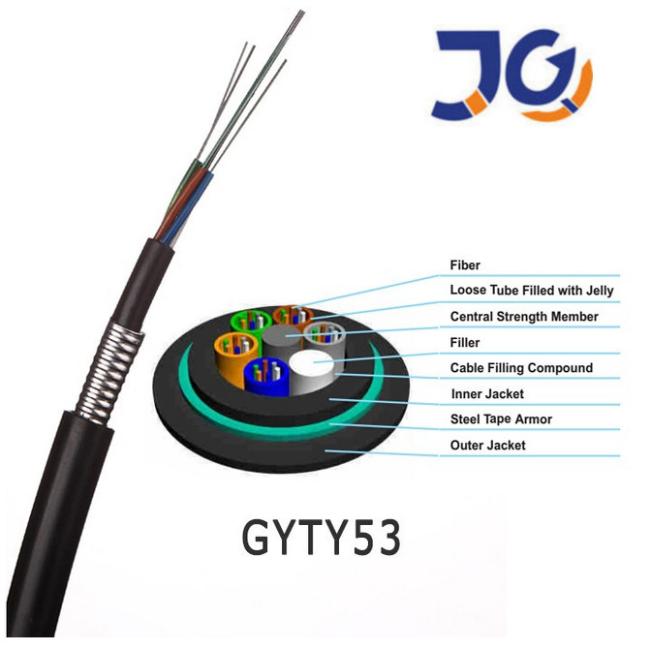

The Underground Direct Buried Fiber Optic Cable GYFTY53 are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including direct buried. With fiber counts up to 288 and S-Z strand designs.
Characteristics
· Good mechanical and temperature performance
· High strength looes tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· The following measures are taken to ensure the cable watertight:
- Steel wire used as the central strength member
- Loose tube filling compound
- 100% cable core filling- APL moisture barrier
- PSP enhancing moisture-proof Water-blocking materialStandard
GYTY53 cable complies with Standard YD/T 901-2001as well as IEC 60794
Storage/Operating Temperature
-40℃ to + 70℃
Application
Underground Direct burial
Cable performance
| Item | Parameters | |
|
Loose tube |
Material | PBT |
| Color | All colors display | |
| Filler | Material | PE |
| Color | Black | |
| CSM | Material | Steel wire |
| Inner jacket | Material | MDPE |
| Color | Black | |
| Outer armoured | Material | Plastic coated steel strip |
| Outer jacket | Material | MDPE |
| Color | Black | |
| Min. bending radius | Static | 12.5 times cable diameter |
| Dynamic | 25 times cable diameter | |
|
Repeating bending |
Load:150N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage. |
|
| Tensile performance | Short term | 1500N |
| Crush | Short term | 3000N/100mm |
| Torsion | Load:150N; number of cycles:10; twist angle:±180° No obvious addition attenuation, no fiber break and no cable damage. | |
Dimensions of cable constructions
|
Fiber count |
Structure | Fibers per tube |
Loose tube diameter (mm) |
diameter/pad diameter (mm) |
Thickness of Inner jacket (mm) |
Thickness of outer jacket (mm) |
Cable diameter (mm) |
Cable weight (kg/km) |
| 12 | 1+6 | 6 | 1.8 ±0.1 | 2.2 /2.2 | 0.9±0.1 | 1.6±0.1 | 12.4 ±0.5 | 138 |
| 24 | 1+6 | 6 | 1.8 ±0.1 | 2.2 /2.2 | 0.9±0.1 | 1.6±0.1 | 12.4 ±0.5 | 140 |
| 48 | 1+6 | 12 | 2.0±0.1 | 2.3 /2.3 | 0.9±0.1 | 1.6±0.1 | 12.9 ±0.5 | 152 |
| 96 | 1+8 | 12 | 2.0±0.1 | 2.6/3.5 | 0.9±0.1 | 1.6±0.1 | 14.1 ±0.5 | 182 |
| 144 | 1+12 | 12 | 2.0±0.1 | 3.0 /6.3 | 0.9±0.1 | 1.6±0.1 | 16.9 ±0.5 |
256 |
