Layer Communication Duct Fiber Optic Cable 96 Cores KFRP

Price Negotiable

Price: Negotiable

MOQ: 1KM

Delivery Time: 3-5 days, it depends on your quantity.

Brand: Jiqian

Product Description

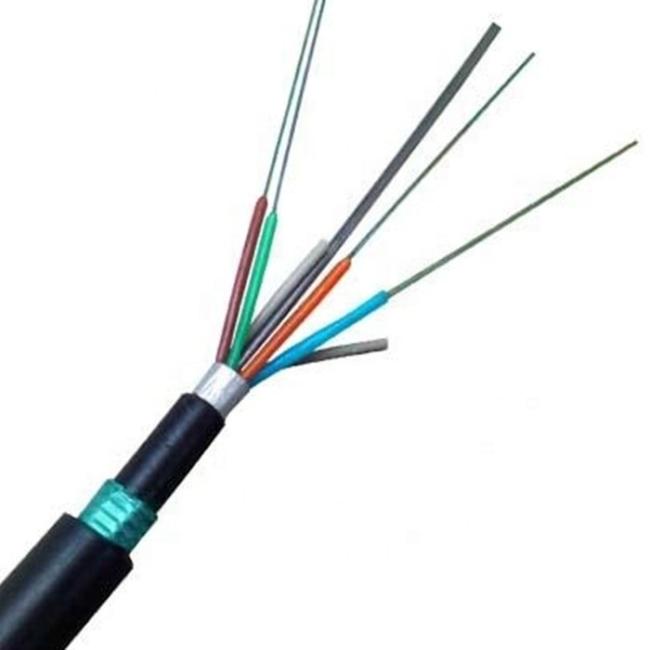

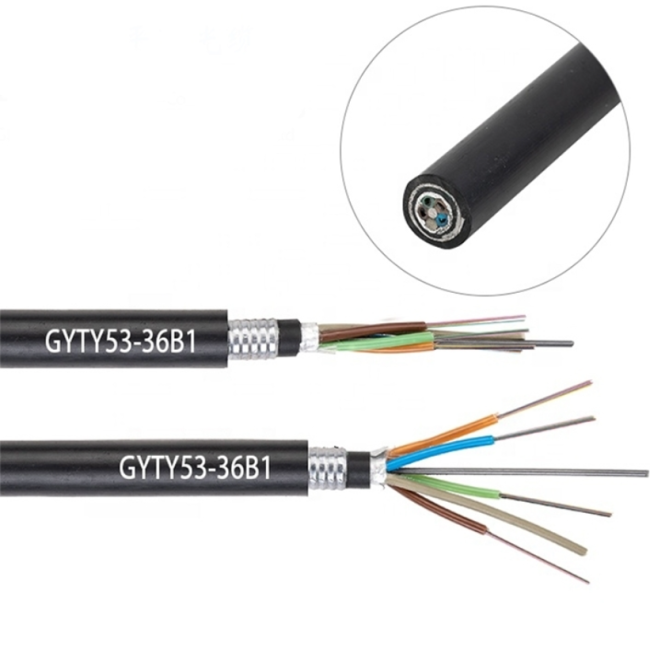

Duct Layer Communication Cable Double Sheath Armored 6 12 24 48 96 Core Optical Fiber Cable GYTA53

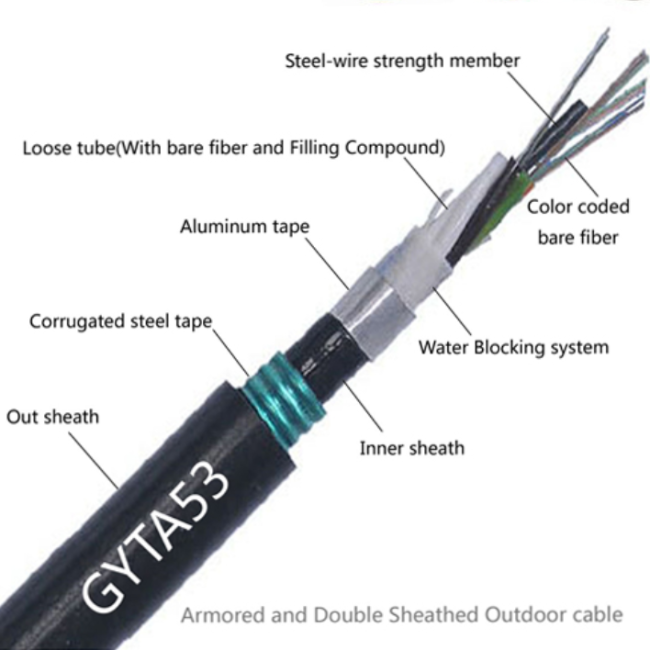

Structure Feature

1.Loose tube (or some with filers) stranded around the central strength member to form the cable core

2.The cable core longitudinally bound by aluminum polyethylene laminate , further bonded to the PE inner jacket, moisture barrier

3. Corrugated steel tape laminated with polyethylene on both sides

4.The PE outer jacket consisted of medium density polyethylene extruded under vacuum condition

Product Feature

1.Steel wire strength filler protect tube fiber.

2.Good ultra violet radiation resistant property.

3.Double sheath and Double armored .

4.Good moisture resistance.

Technical Parameter


			Item

			Properties and Requirements

			Fiber Count

			2-144

			Min Bending Radius

			Dynamic

			25✖diameter of cable

			Static

			12.5✖diameter of cable

			Temperature Range

			-40°C~+60°C

			Nominal Weight(kg/km)

			Depends on Different Specifications

			Laying method

			Direct Buried

Data Sheet


			Cable Count

			Out Sheath Dia.

			Weight

			Minmum Allowable Tensile Strength(N)

			Minmum Allowable Crush Load (N/100nm)

			Minimum Bending Radius(MM)

			Storage Temperature

			(MM)

			(kg)

			Short Term

			Long Term

			Short Term

			Long Term

			Short Term

			Long Term

			(°C)

			24

			14.5

			155

			3000

			1000

			3000

			1000

			20D

			10D

			-40~+60

			36

			14.5

			155

			3000

			1000

			3000

			1000

			20D

			10D

			-40~+60

			42

			14.5

			155

			3000

			1000

			3000

			1000

			20D

			10D

			-40~+60

			48

			15.5

			210

			3000

			1000

			3000

			1000

			20D

			10D

			-40~+60

			60

			15.5

			210

			3000

			1000

			3000

			1000

			20D

			10D

			-40~+60

			72

			15.5

			210

			3000

			1000

			3000

			1000

			20D

			10D

			-40~+60

			96

			16.5

			275

			3000

			1000

			3000

			1000

			20D

			10D

			-40~+60

			144

			19.6

			245

			3000

			1000

			3000

			1000

			20D

			10D

			-40~+60

Packaging Details

1.Wooden reel, 1000m/reel,2000m/reel,3000m/reel,customer's requirements are also welcomed;

2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet,then sealed by strong wooden battens.


Delivery

For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

Certificate

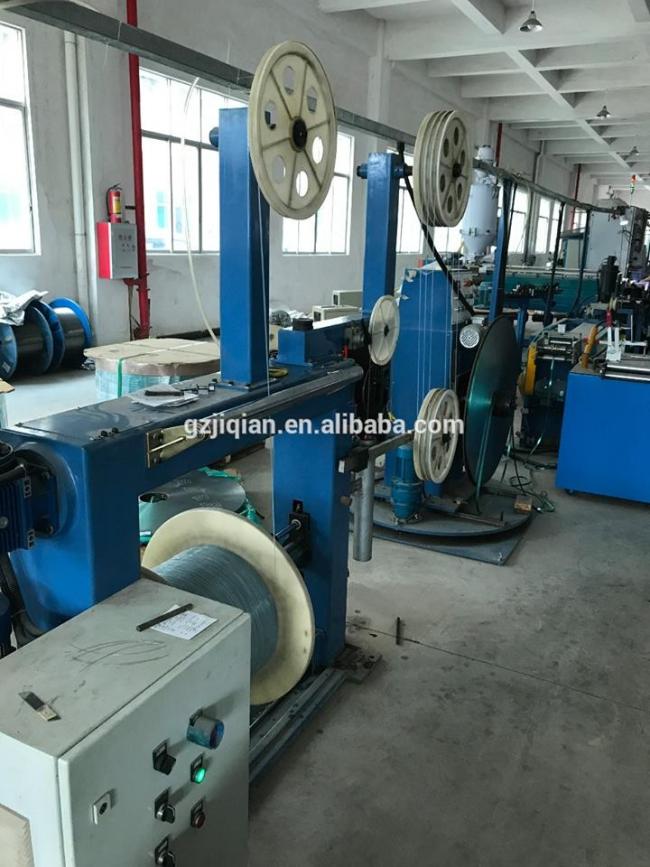

Factory Picture
