Factory Price Central Loose Tube Unitube Single Mode 6 12 24 48 Core Optique Cable GYXTW

Structure Feature:

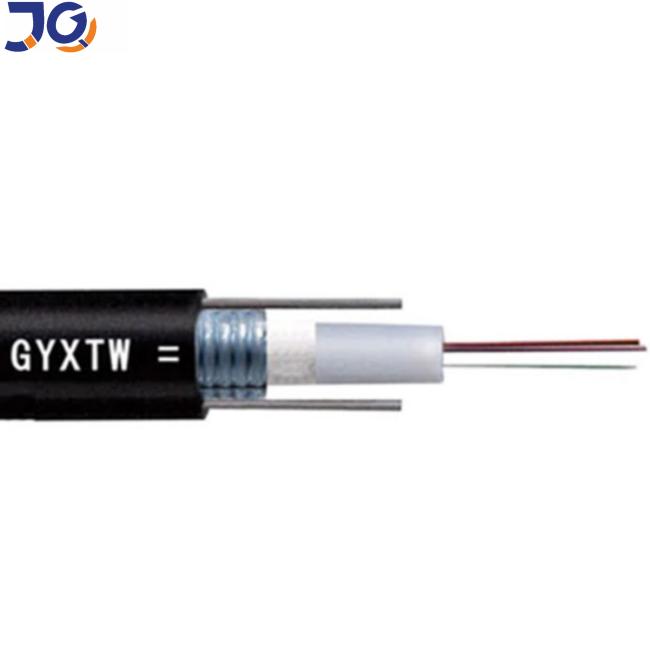

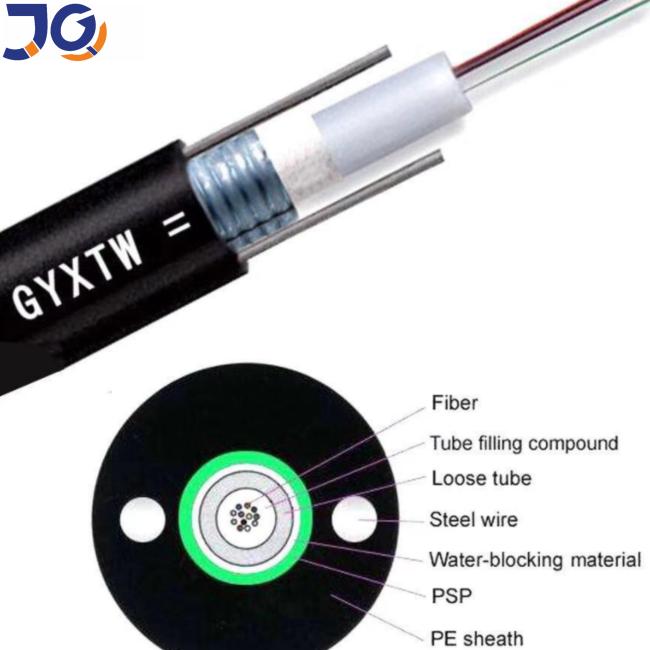

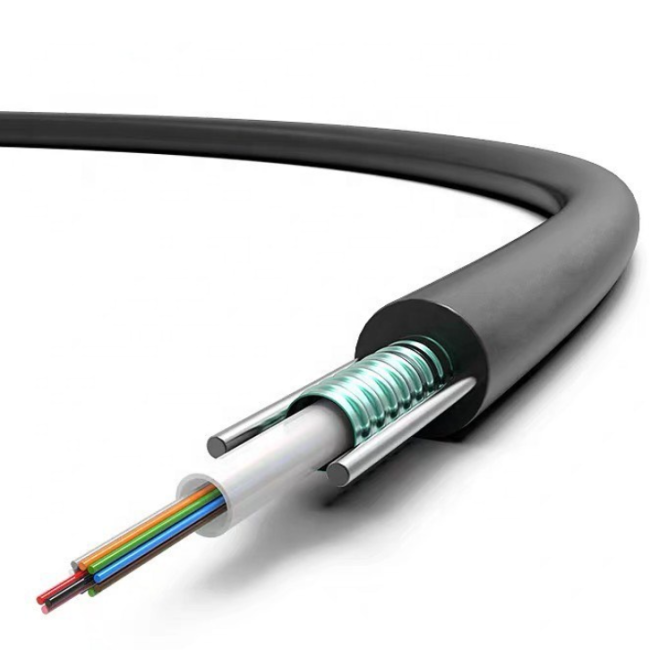

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

Product features:

1.Small outer diameter, light weight and convenient construction

2.Stable fiber excess length control

3.After the cable is formed, the additional attenuation of the fiber is almost zero, and the dispersion value does not change

4.Excellent environmental performance

Optical Characterstics

Technical Parameters:

Packaging Details
1.Wooden drum, 1000m/drum, 2000m/drum, 3000m/drum, customer's requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet, then sealed by strong wooden battens.

Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

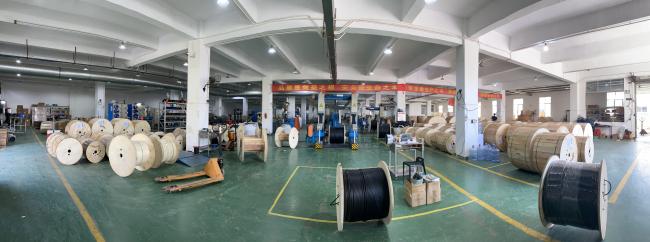

Factory Show

We are a factory.  Welcom to visit our factory.

Certificate

Our Services

1.Advanced production and testing equipment
2.Professional manufacturer, 100% tested.
3.Full compliance with ISO 9001:2015 quality management system
4.Our company has experienced professional team
5.Provide reliable solutions and satisfactory services
6.Warmly services with careful attentions.
7.Can provide your specific inquiry within 24 hours.Advanced production and testing equipment
