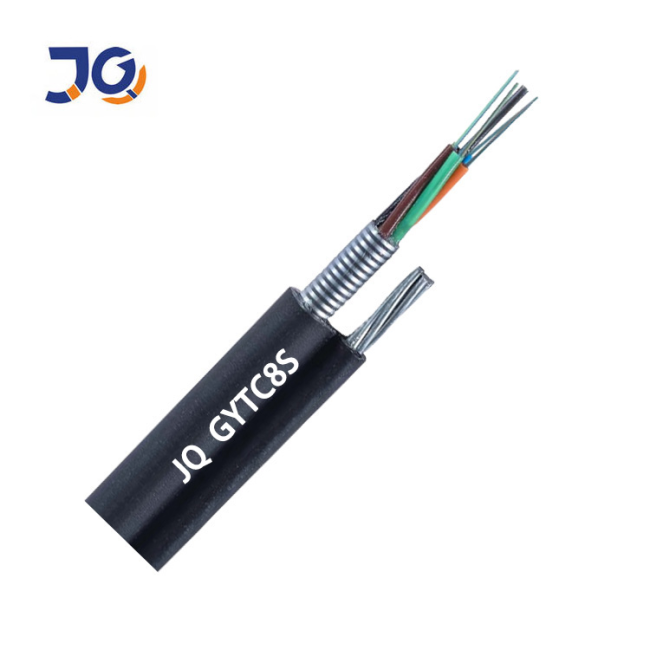

Optical Fiber 12 Cores Gytc8s Figure 8 Electrical Cable
Manufacturing Outdoor Optical Fiber Figure 8 Cable 12 Cores Fiber Optic Cable Gytc8s

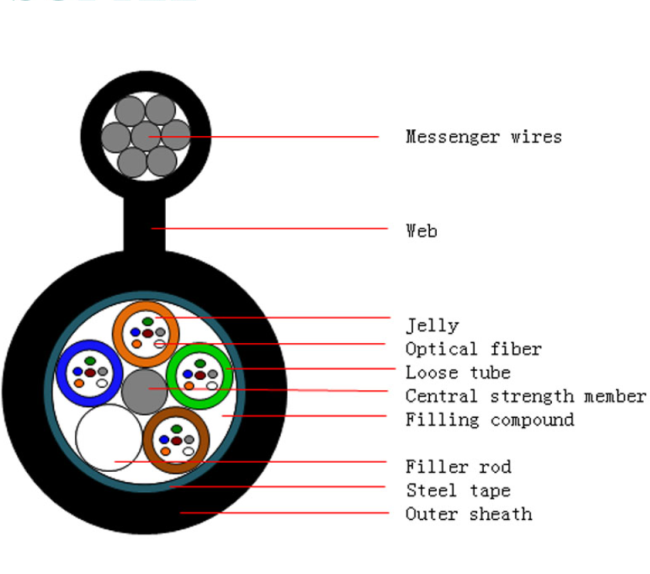

Structure :
- Loose tube
- Filling compound
- Aluminum (steel) tape coated with PE jacket
- Self-supporting by high grade zinc-galvanized stranded steel wires
Features:
- Low attenuation and dispersion, special control of exceed length and layer stranding technology ensures the good transmission performance in varying environment.
- Good water blocking material prevents the cable from longitudinal water penetration.
- Aluminum (steel) tape coated with PE sheath provides excellent water blocking performance.
- High grade zinc-galvanized stranded steel wires as self-supporting element enhance the tensile resistance.
There are twelve fiber color code.They are A grade fiber.
Dimensional Characteristics
|
Designation
|
Max. number
|
Steel wire/ stand
|
Stranded
|
Nominal cable
|
Nominal cable
|
|
Of fibers per tube
|
Diameter (mm)
|
units
|
diameter (mm)
|
weight (kg/km)
|
|
|
GYTC8S 2-36
|
6
|
2.3
|
6
|
11.6X25.5
|
270
|
|
GYTC8S
38-72
|
12
|
2.3
|
6
|
13.2X28.5
|
310
|
|
GYTC8S
74-96
|
12
|
2.3
|
8
|
14.9X33.0
|
390
|
|
GYTC8S
98-120
|
12
|
2.3
|
10
|
16.8X33.0
|
390
|
|
GYTC8S
122-144
|
12
|
2.3
|
12
|
18.8X35.0
|
440
|
We are the factory, having quality control.
We privide you factory price.You can save costs, having good quality.
Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed
We go to exhibitions. We have rich foreign trade experience, you can save purchasing time.
Don't hesitate to contact me. Whatsapp:+86 18122383351
FQA
Q1.Are you the real manufacturer?
We are the real manufacturer with 10 year’s history.
Q2.What’s the MOQ?
The MOQ of Fiber Optic cable is 1km.
Q3.What’s delivery time?
The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
Q4.How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways not on the end.
Q5. Can you supply customized products and logo?
Yes. We supply OEM service.
Q6.What’s your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
