Aerial 2km Single Mode 48 Cores GYTA Fiber Optic Cable

Price Negotiable
Price: Negotiable
MOQ: 1KM
Delivery Time: 3-5 working days ,it depends on your order
Brand: Jiqian
Product Description

Aerial Outdoor 1km 2km Price Per Meter Single Mode 2 4 6 8 12 16 24 48 Cores GYTA Fiber Optic Cable


Feature :

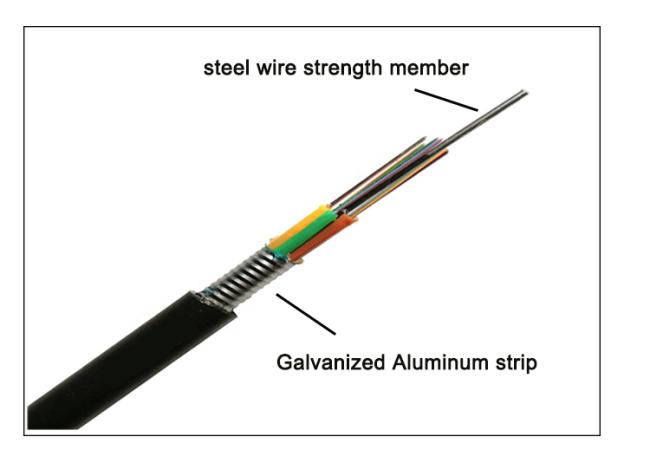

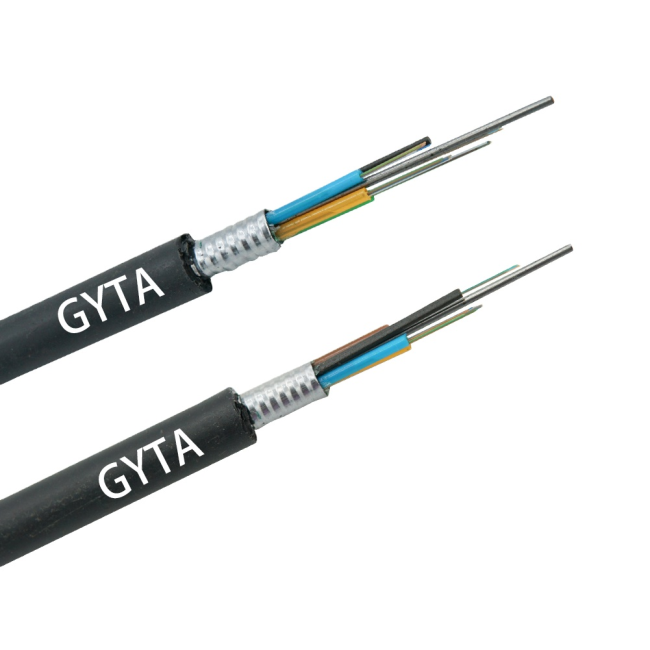

  • GYTA armored fiber optic cables feature loose tube wrapped with a layer of PSP longitudinally, excellent crush-resistant performance.
  • Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight.
  • The cable is completed with a single polyethylene (PE) sheath.
  • It's suitable for installation in aerial or duct environment for communication between bureaus, metropolitan network, access network and is especially suitable for the situation where high-density fibers is expected.
  •

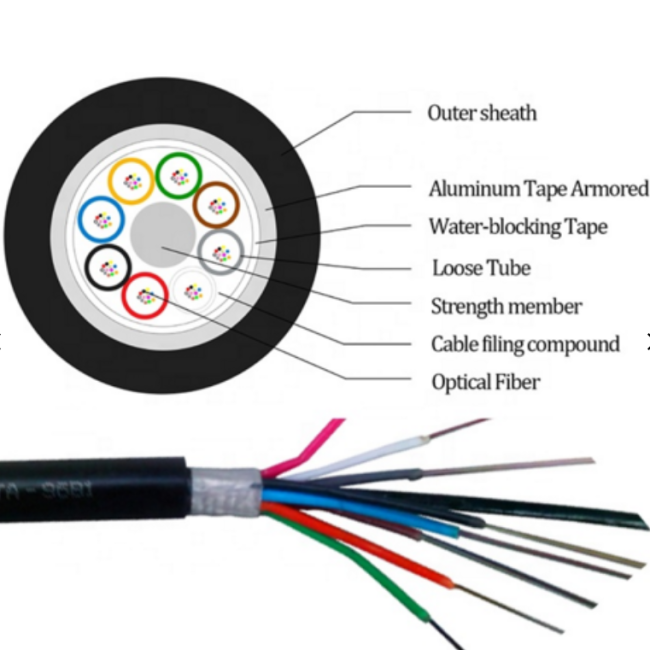

Detailed Images



1.Up to288 fibers.

2.Loose tube gel-filled construction for superior fiber protection.

3.Moisture barrierwith aluminum polyethylene laminate.

4.UV and moisture-resistant design.




















There are twelve fiber color code.They are A grade fiber.





Technical parameters.



cable count
out sheath
diameter
[MM]
weight
[KG]
Minimumum
allowable
Tensile
strength(N)
Minimum
allowable
Crush load
(N/100mm)
Min bending
radius
(MM)
Suitable
temperature



short/long term
short/long term
short/long term
(℃)
2--30
9.6
86
1500/600
1000/300
20D/10D
--40+60
32--36
10.2
107
1500/600
1000/300
20D/10D
--40+60
39--60
10.9
109
1500/600
1000/300
20D/10D
--40+60
62--72
11.6
138
1500/600
1000/300
20D/10D
--40+60
74--96
13.2
163
1500/600
1000/300
20D/10D
--40+60
98--120
14.7
195
1500/600
1000/300
20D/10D
--40+60
122--144
16.2
228
1500/600
1000/300
20D/10D
--40+60

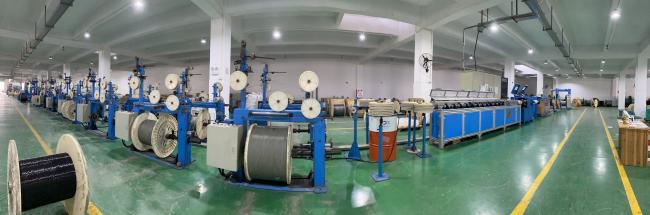

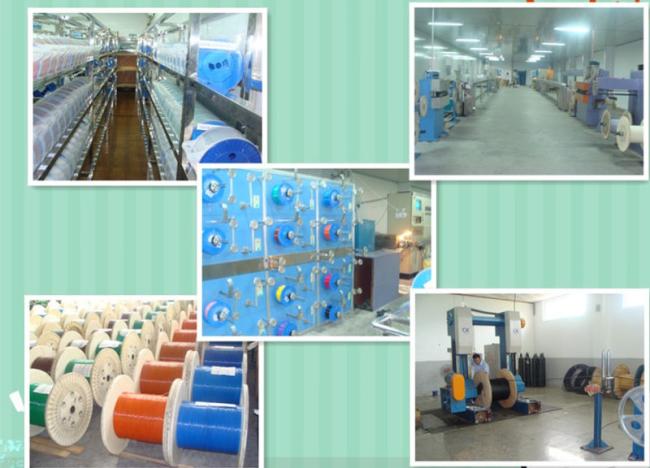

We are the factory, having quality control.

We privide you factory price.You can save costs, having good quality.



Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed



We go to exhibitions. We have rich foreign trade experience, you can save purchasing time.

Don't hesitate to contact me. Whatsapp:+86 18122383351





FQA



Q1.Are you the real manufacturer?
We are the real manufacturer with 10 year’s history.


Q2.What’s the MOQ?
The MOQ of Fiber Optic cable is 1km.


Q3.What’s delivery time?
The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.


Q4.How to Store the Optical Fiber Cable Properly?

Store the drum indoor before using, the drum should place sideways not on the end.


Q5. Can you supply customized products and logo?
Yes. We supply OEM service.


Q6.What’s your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
