China Factory Price Outdoor 48 96 144 Core Underground Communication Cable Double Sheath GYFTA53 Fiber Optic Cable 1km

Product Description

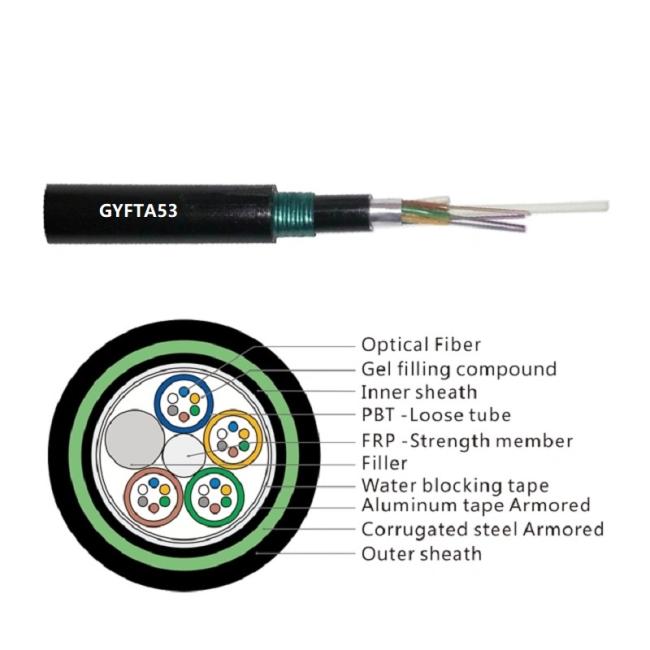

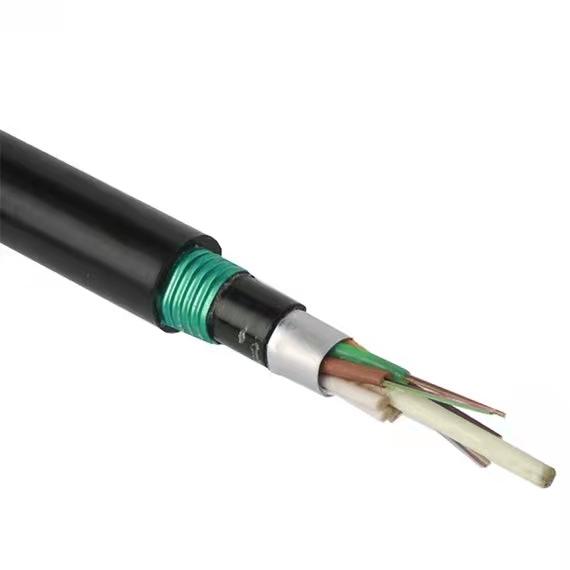

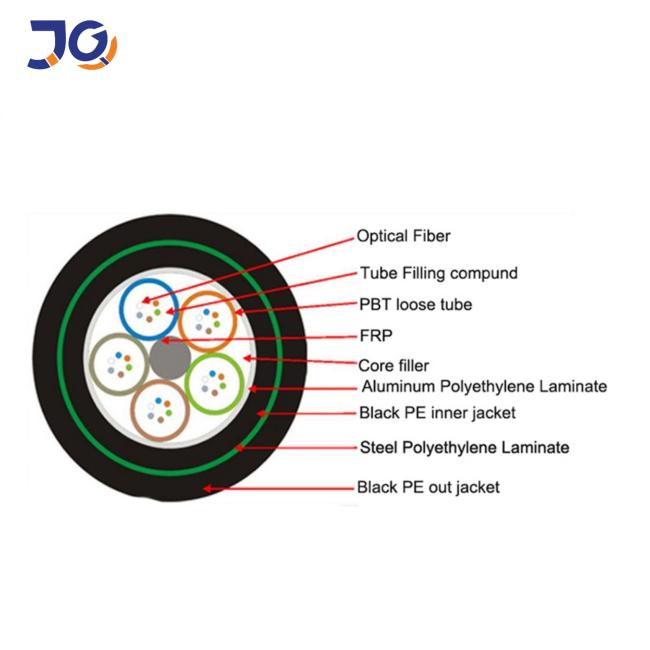

The fibers, ∅250µm colored fibers, are positioned in a loose tube made of a high modulus plastic.

The tubes are filled with a water-resistant filling compound.

A Fiber Reinforced Plastic (FRP) locates in the center of core as non-metallic strength member.

Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.

An Aluminum Ployethylene Laminate (APL) is applied around the cable core.

Then the cable core is covered with a thin polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress.

After a corrugated steel tape armor is applied, the cable is completed with a PE outer sheath.

Features:

• Good mechanical and temperature performance;
• High strength loose tube that is hydrolysis resistant;
• Special tube filling compound ensure a critical protection of fiber;
• Special designed compact structure is good at preventing loose tubes from shrinking;
• PE sheath protects cable from ultraviolet radiation;
• The following measures are taken to ensure the cable water tight: FRP used as central strength member; 100% cable core filling; loose tube filling compound; APL moisture barrier; PSP enhancing moisture barrier; Water-blocking material.

Applicable fields:

Direct buried



Technical Parameters:

Fiber Count	Tubes	Fillers	Cable Weight (kg/km)	Bending Radius (mm)		Tensile Strength (N)		Cruch Resistance (N/100mm)
				Static	Dynamic	Long term	Short term	Long term	Short term
2-6	1	7	255	10D	20D	600	1500	1000	3000
8-12	2	6	255	10D	20D	600	1500	1000	3000
14-18	3	5	255	10D	20D	600	1500	1000	3000
20-24	4	4	255	10D	20D	600	1500	1000	3000
26-30	5	3	255	10D	20D	600	1500	1000	3000
32-36	6	2	255	10D	20D	600	1500	1000	3000
38-42	7	1	255	10D	20D	600	1500	1000	3000
44-48	8	0	255	10D	20D	600	1500	1000	3000
50-60	5	3	320	10D	20D	600	1500	1000	3000
62-72	6	2	320	10D	20D	600	1500	1000	3000
74-84	7	1	320	10D	20D	600	1500	1000	3000
86-96	8	0	320	10D	20D	600	1500	1000	3000
98-108	9	1	380	10D	20D	600	1500	1000	3000
110-120	10	0	380	10D	20D	600	1500	1000	3000
122-132	11	1	415	10D	20D	600	1500	1000	3000
134-144	12	0	415	10D	20D	600	1500	1000	3000



Optical Parameters:

There are twelve fiber color code.They are A grade fiber.

We are the factory, having quality control.

We privide you factory price.You can save costs, having good quality.

Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed

We go to exhibitions. We have rich foreign trade experience, you can save purchasing time.

Don't hesitate to contact me. Whatsapp:+86 18122383351

FQA

Q1.Are you the real manufacturer?
We are the real manufacturer with 10 year’s history.

Q2.What’s the MOQ?
The MOQ of Fiber Optic cable is 1km.

Q3.What’s delivery time?
The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

Q4.How to Store the Optical Fiber Cable Properly?

Store the drum indoor before using, the drum should place sideways not on the end.

Q5. Can you supply customized products and logo?
Yes. We supply OEM service.

Q6.What’s your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
