Aerial ADSS 24 Fibers 100m Span Single Mode Fiber Optic Cable Outdoor

Outdoor 48 96 144 Core Aramid Yarn Pe At Sheath Non-metallic 100m SpanFibre Optic Cable

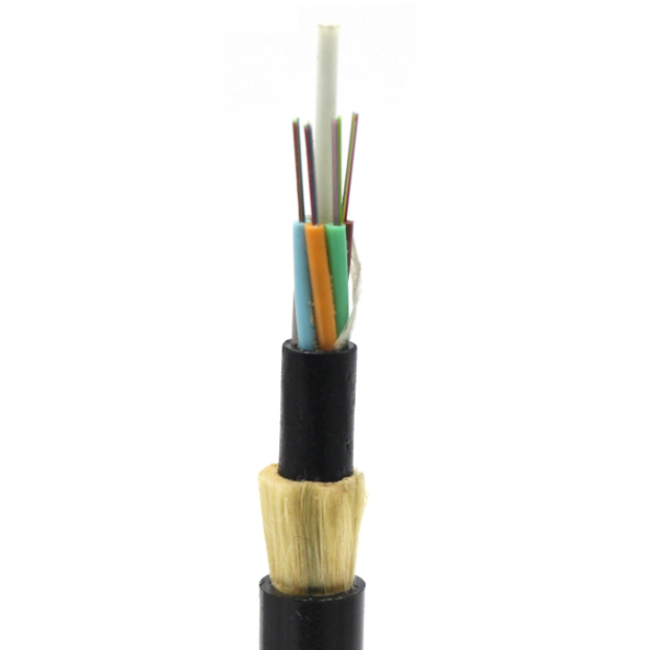

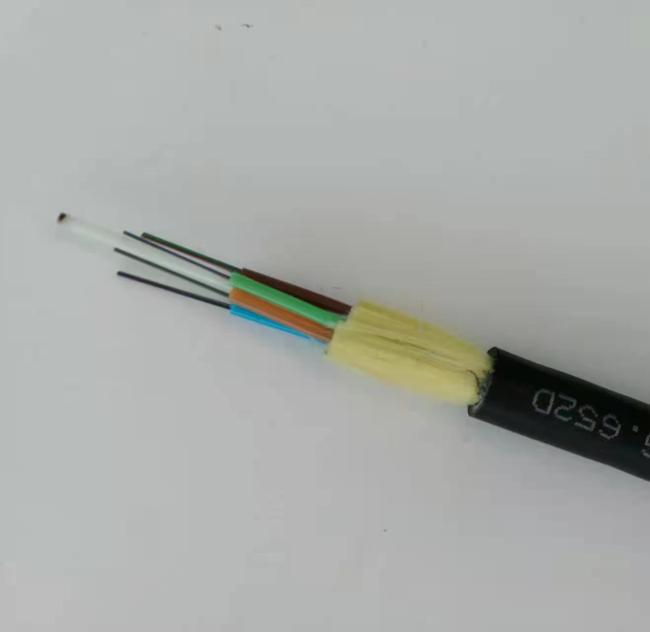

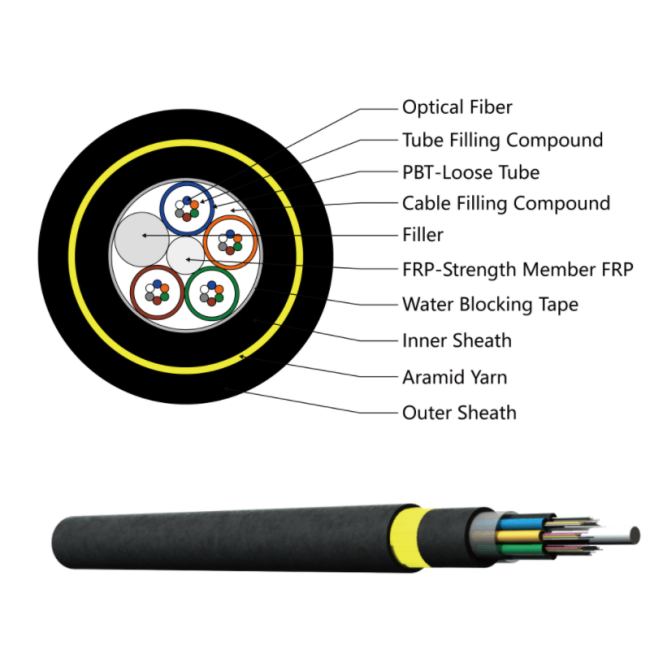

Structure Feature:

1.ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics.
2.The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP(Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.
3.After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath.
4.After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

Product Feature

---Can be installed without shutting off the power
---Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
---Large span lengths
---Good performance of tensile strength and temperature
--- Arc-erosion-resistant AT jecket
---The design life span is 30 years

There are twelve fiber color code.They are A grade fiber.

More Products

We are the factory, having quality control.

We privide you factory price.You can save costs, having good quality.

Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed

We go to exhibitions. We have rich foreign trade experience, you can save purchasing time.

Don't hesitate to contact me. Whatsapp:+86 18122383351

FQA

Q1.Are you the real manufacturer?
We are the real manufacturer with 10 year’s history.

Q2.What’s the MOQ?
The MOQ of Fiber Optic cable is 1km.

Q3.What’s delivery time?
The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

Q4.How to Store the Optical Fiber Cable Properly?

Store the drum indoor before using, the drum should place sideways not on the end.

Q5. Can you supply customized products and logo?
Yes. We supply OEM service.

Q6.What’s your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
