GYTC8S Self-supported Outdoor Aerial Cable 8 Core G652d Figure 8 Fiber Optical Cable

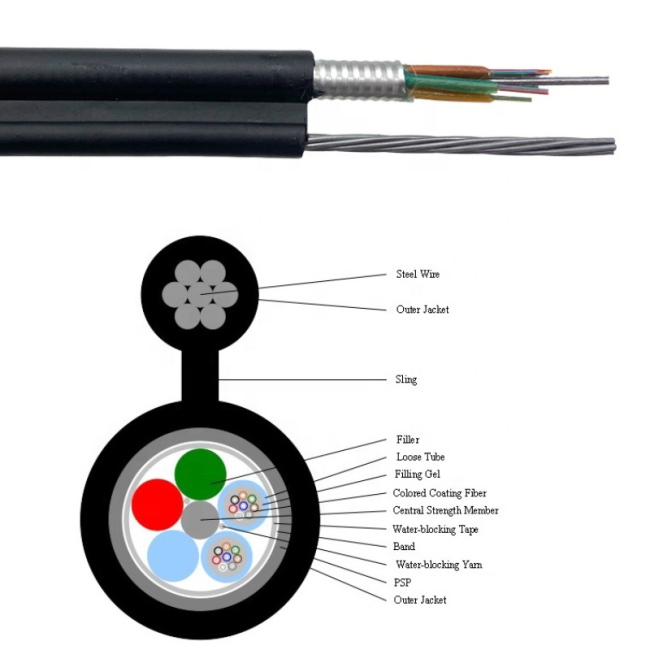

Structural feature:

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic.

The tubes are filled with a water-resistant filling compound.

A steel wire locates in the center of core as a metallic strength member.

Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.

Acorrugated steel is applied around the cable core, which is filled with the filling compound to protect it from water ingress.

This part of cable accompanied with the strand wires, as the supporting part are completed with double polyethylene(PE)sheath to be figure 8 structure.

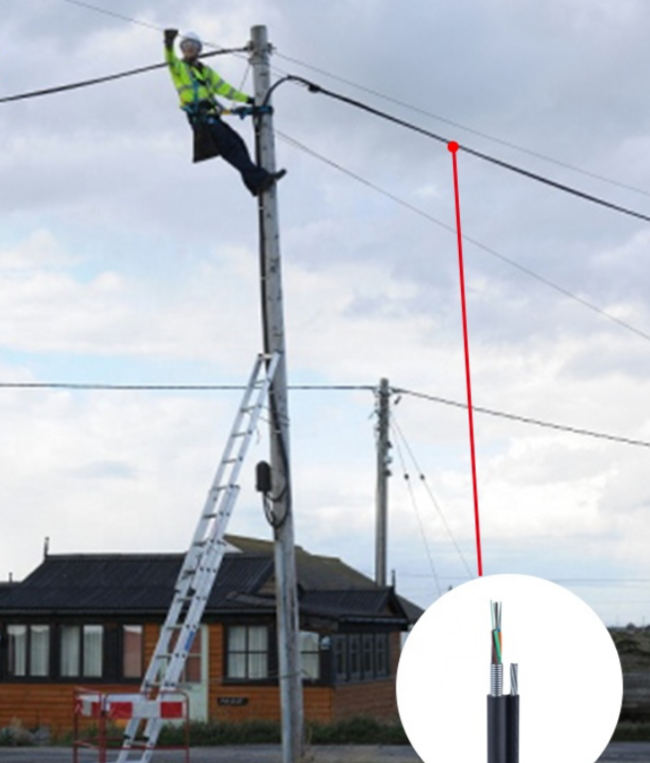

Method of installation are easily.

Product features:

• Low attenuation and dispersion, special control of exceed length and layer stranding technology ensures the good transmission performance in varying environment.
• Good water blocking material prevents the cable from longitudinal water penetration.
• Aluminum (steel) tape coated with PE sheath provides excellent water blocking performance.
• High grade zinc-galvanized stranded steel wires as self-supporting element enhance the tensile resistance.

Optical Characterstics

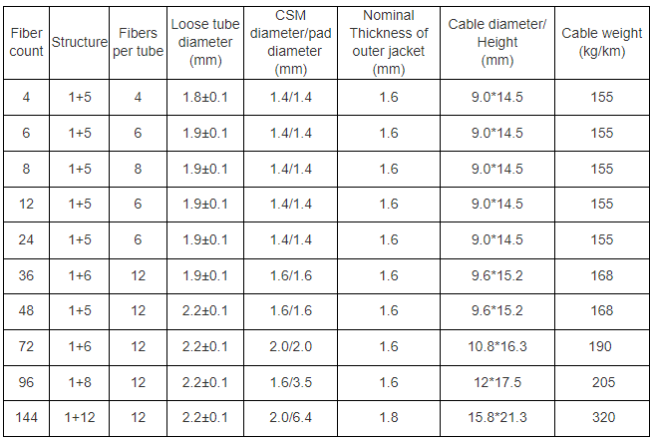

Technical Parameters:

Package & Delivery

Wooden drum:1KM 2KM 3KM 4KM for one roll

Shipping: By sea/by air or express delivery, it depends on the order quantity


Factory Show

We are a factory.  Welcom to visit our factory.

Certificate

FAQ:

1. Are you a manufacturer?
Yes. We are a company integrating industry and trade. Our factory is located in Guangzhou, Guangdong Province, China.

2.How can you guarantee quality?
We conduct three inspections from raw materials to finished products, and then to the factory. 25-year guarantee period.

3.What product do you sell?
There are fiber optic cable, FTTH drop cable, communication cables, outdoor/indoor fiber cable.

4 .What service can you provide?
One-to-one service, fast response.
