1. Good mechanical and temperature performance
2.Metallic armor to protect cable from rodent attack and mechanical damage.
3.Embedded steel wire provide desirable tensile strength and crush resistance.
4.Compact, easy to install.
5.UV and waterproof design.
G652D Central Loose Tube Monomodo Communication Fiber Cable 12 Cores
Price:
Negotiable
MOQ:
1KM
Delivery Time:
3-5 days, it depends on your quantity
Brand:
Jiqian
Product Description

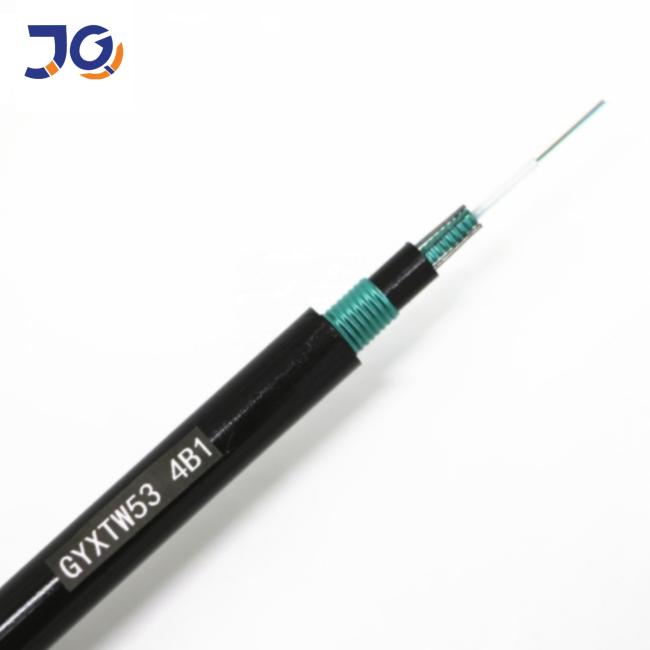

Outdoor Central Loose Tube G652d Monomodo Fibra Optica 8 12 24 Core Communication Fiber Optic Cable GYXTW53
Product Structure

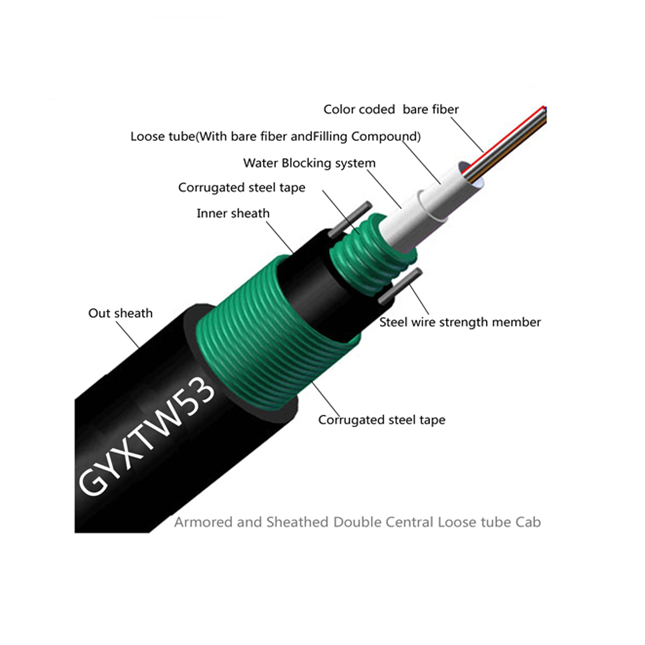

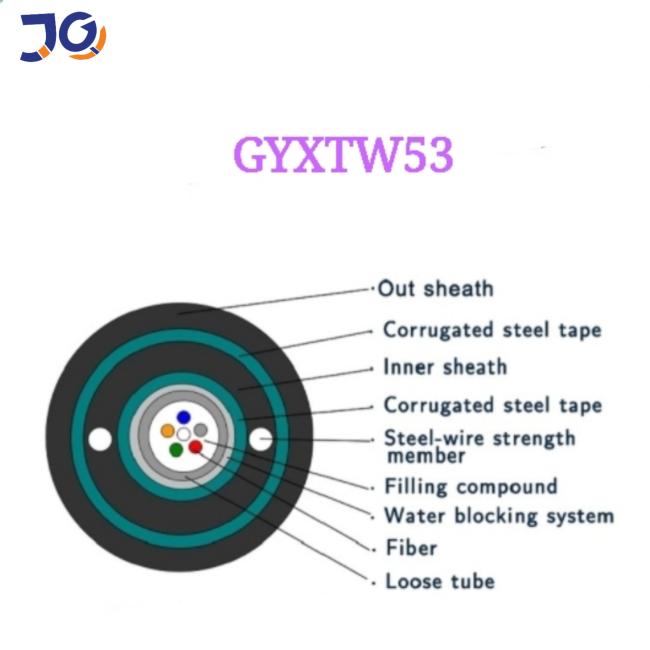

250μm's fibers are positioned in the central of a loose tube which is made of high modulus plastics and filled with water-resistant filling compound. The tube is wrapped with a layer of the plastic coated steel strip(PSP). Except the tube filling compound, PSP, water-blocking material, it also has two steel wires in two sides to enhance the crush resistance and flexibility. At last, the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.
Feature:
Application
Ordering Information
| Fiber Count | Outer Diameter (mm) | Loose Tube Diameter (mm) | Cable Weight (kg/km) | Bend Radius | |
| Short (mm) | Long (mm) | ||||
| 2 | 12.0 | 2.8 | 165.0 | 20D | 10D |
| 4 | 12.0 | 2.8 | 165.0 | 20D | 10D |
| 6 | 12.0 | 2.8 | 165.0 | 20D | 10D |
| 8 | 12.0 | 2.8 | 165.0 | 20D | 10D |
| 12 | 12.0 | 2.8 | 165.0 | 20D |
10D |
Packaging Details
1.Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet, then sealed by strong wooden battens.
Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
