288 Cores Outdoor Armoured Cable Duct Optical Fibre Cable GYTA
Price:
Negotiable
MOQ:
1000m
Delivery Time:
2-4day
Brand:
jiqian
Product Description
GYTA Armored Loose Tube Single Jacket/Single Armor fiber optic cables are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including duct and underground conduit.
Fiber Parameters | Unit | Specification | |
G.652D | |||
Mode Field Diameter | 1310nm | μm | 9.2±0.4 |
1550nm | μm | 10.4±0.5 | |
Cladding Diameter | μm | 124.8±0.7 | |
Cladding Non-Circularity | % | ≤0.7 | |
Core-Cladding Concentricity Error | μm | ≤0.5 | |
Coating Diameter | μm | 245±5 | |
Coating Non-Circularity | % | ≤6.0 | |
Cladding-Coating Concentricity Error | μm | ≤12.0 | |
Cable Cutoff Wavelength | nm | λcc≤1260 | |
Attenuation(max.) | 1310nm | dB/km | ≤0.4 |
1550nm | dB/km | ≤0.3 | |

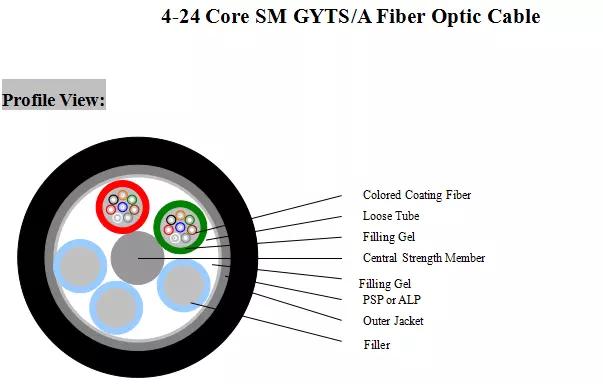

Cable Parameters: | Specifications | |
Fiber Count | 4-24 | |
Colored Coating Fiber | Dimension | 250µm±15µm |
Color | Blue,Orange,Green,Brown,Gray, White,Red,Black,Yellow,Purple,Pink,Aqua | |
Loose Tube | Dimension | 2.1mm±0.05mm |
Material | PBT | |
Color | Red,Blue Natural,Natural,Natural | |
Central Strength Member | Diameter | 1.5mm |
Material | steel | |
Outer Jacket | Dimension | 9.0mm±0.2mm |
Material | PE | |
Color | Black | |
Mechanical and Environmental Characteristics: | Unit | Specifications |
Tension(Long Term) | N | 600 |
Tension(Short Term) | N | 1500 |
Crush(Long Term) | N/10cm | 300 |
Crush(Short Term) | N/10cm | 1000 |
Min. Bend Radius(Dynamic) | mm | 20D |
Min. Bend Radius(Static) | mm | 10D |
Installation Temperature | ℃ | -20~+60 |
Operating Temperature | ℃ | -40~+70 |
Storage Temperature | ℃ | -40~+70 |
FAQ:
1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!
Yes, we are factory in guangzhou china, welcome to visit us!
2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available
3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.
4.What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.
5.Delivery time?
Generally 3-7 working days, also it is according to qty.
6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.
