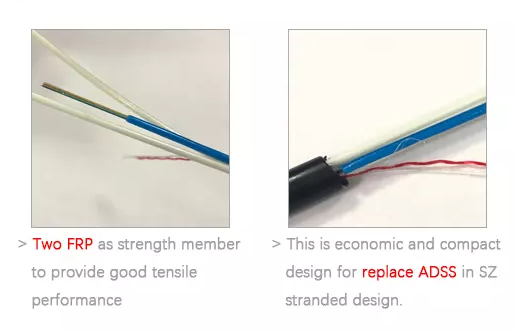

1:Embedded FRP as two strength members provide desirable tensile strength.
2:Compact, light weight ,easy to install.
3:UV and moisture-resistant design![]()
![]()
![]()
2:Compact, light weight ,easy to install.
3:UV and moisture-resistant design

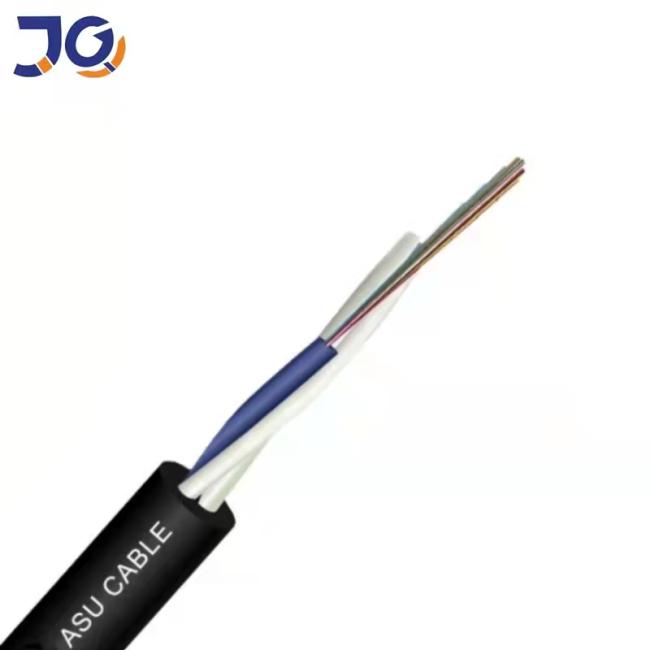

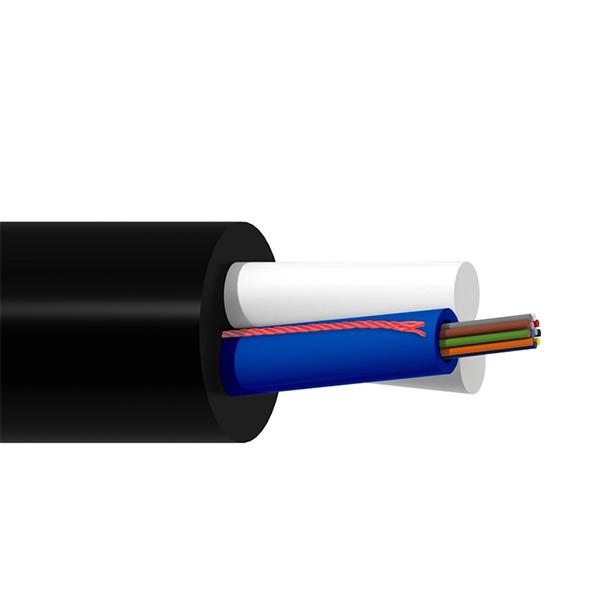

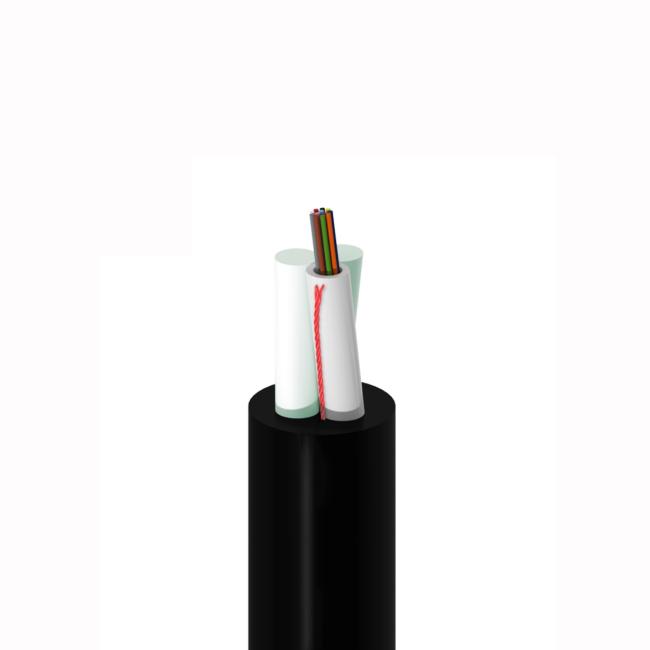

ASU 80
The ASU80 optical cables are self-supporting in spans of up to 80 meters.
The ASU80 optical cables are self-supporting in spans of up to 80 meters.
Therefore, they are indicated for cable passage in urban centers,
as within cities the poles are usually, on average, 40 meters apart, which guarantees a good support for this cable.
ASU 100
ASU100 optical cables are self-supporting in spans of up to 100meters.
Therefore, they are indicated for cable routing in rural areas, where the poles are usually between 90 and 100 meters apart.
Technical Data
| ASU Fiber Counts | 12 core | |
|
Sheath Reinforcement |
Material | FRP*2 |
| Dia(±0.05mm) | 2.0mm | |
|
Loose Tube |
Material | PBT |
| Diameter(±0.05mm) | 2.0mm | |
| Thickness(±0.03mm) | 0.35mm | |
|
Outer Sheath |
Material | MDPE/HDPE |
| Thickness(±0.03mm) | 1.6mm(nominal) | |
| Color | Black | |
| Cable Diameter(norminal) | 7.0mm | |
Packaging Details
1.Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet, then sealed by strong wooden battens.
Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
Factory Picture
We still have more.Please feel free to contact me. Whatsapp:+86 18122383351
