Underground Outdoor Fiber Optic Cable PE Jacketed
China manufacturer Underground Aerial Duct GYTA Outdoor Armored Fiber Optic Cable
Details Images

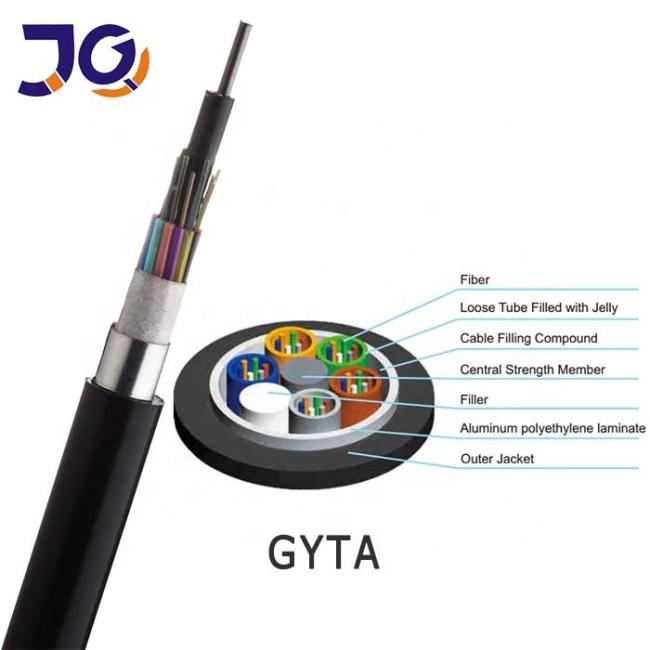

Feature:
1.Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4.Specially designed compact structure is good at preventing loose tubes from shrinking
5.PE sheath protects cable from ultraviolet radiation
6.The following measures are taken to ensure the cable watertight:
7.Steel wire used as the central strength member 8.Loose tube filling compound
9.100% cable core filling
10.APL moisture barrier
Dimensions of Cable Constructions
| Fiber count | Structure | Fibers per tube |
Loose tube diameter (mm) |
CSM diameter/pad diameter (mm) |
Nominal Thickness of outer jacket (mm) |
Cable diameter/ Height (mm) |
Cable weight (kg/km) |
| 4 | 1+5 | 4 | 1.8±0.1 | 1.4/1.4 | 1.4 | 9.0±0.3 | 80 |
| 6 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.4 | 9.0±0.3 | 80 |
| 8 | 1+5 | 8 | 1.9±0.1 | 1.4/1.4 | 1.4 | 9.0±0.3 | 80 |
| 12 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.4 | 9.0±0.3 | 80 |
| 24 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.4 | 9.0±0.3 | 85 |
| 36 | 1+6 | 12 | 2.2±0.1 | 1.6/1.6 | 1.6 | 9.7±0.3 | 100 |
| 48 | 1+5 | 12 | 2.2±0.1 | 1.6/1.6 | 1.6 | 9.7±0.3 | 105 |
| 60 | 1+5 | 12 | 2.2±0.1 | 1.6/1.6 | 1.6 | 9.7±0.3 | 110 |
| 72 | 1+6 | 12 | 2.2±0.1 | 2.0/2.0 | 1.6 | 10.6±0.3 | 122 |
| 96 | 1+8 | 12 | 2.2±0.1 | 1.6/3.5 | 1.6 | 12.0±0.3 | 160 |
| 144 | 1+12 | 12 | 2.2±0.1 | 2.0/6.4 | 1.8 | 15.6±0.3 | 240 |
| 216 | 1+6+12 | 12 | 2.2±0.1 | 2.2/2.2 | 1.8 | 16.0±0.3 | 270 |
| 288 | 1+9+15 | 12 | 2.2±0.1 | 2.2/4.3 | 2.0 | 18.2±0.3 | 282 |
There are twelve fiber color code.They are A grade fiber.
All products will have been strictly quality checked in house before packing.
All products will be well packed before shipment.
We are the factory, having quality control.
We privide you factory price.You can save costs, having good quality.
Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed
We go to exhibitions. We have rich foreign trade experience, you can save purchasing time.
Don't hesitate to contact me. Whatsapp:+86 18122383351
FQA
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
A:The MOQ of Fiber Optic cable is 1km.
3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
