144 Core GYTS Armored Underground Duct Cable , Gyts Fiber Optic Cable
Underground Duct 48 96 144 Core GYTS Cummunication Cable Single Mode Armored Fiber Optic Cable
Details Images
Description:

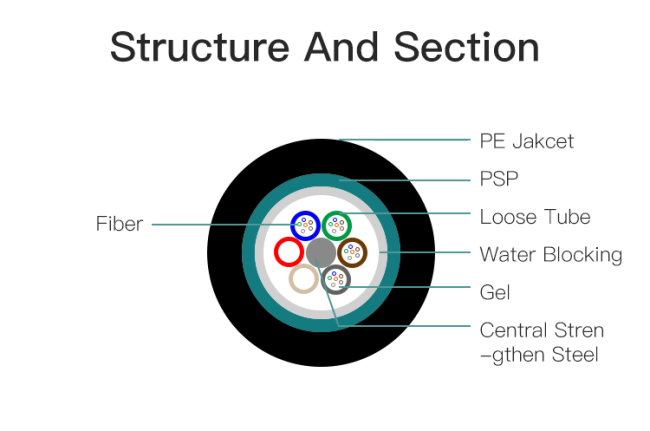

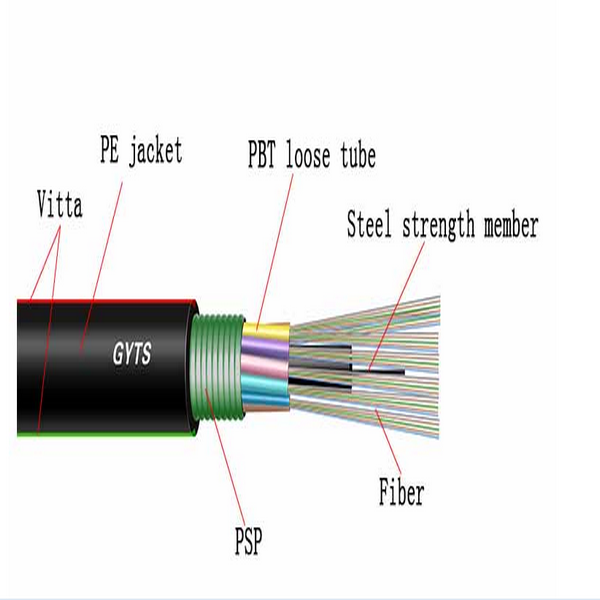

In the GYTS cable, single mode/multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound.
Tubes and fillers are stranded around the strength member into a circular cable core.

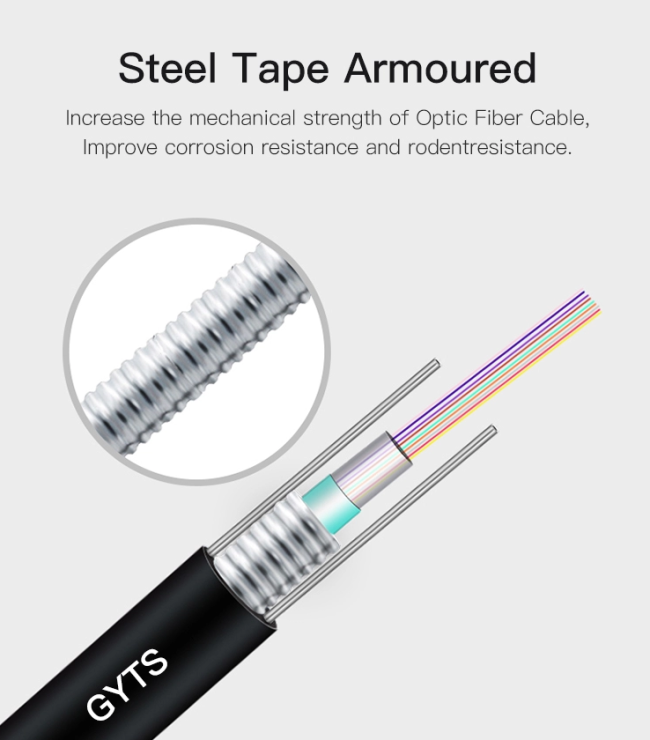

An PSP is applier around the core. Which is filled with the filling compound to protect it.
Then the cable is completed with a PE sheath.
Characterisics
1.Excellent mechanical and temperature performance guaranteed by the accurate excess Fiber length Critical protection to fibers
2.The following measures are taken to ensure the water blocking performance of the cable.

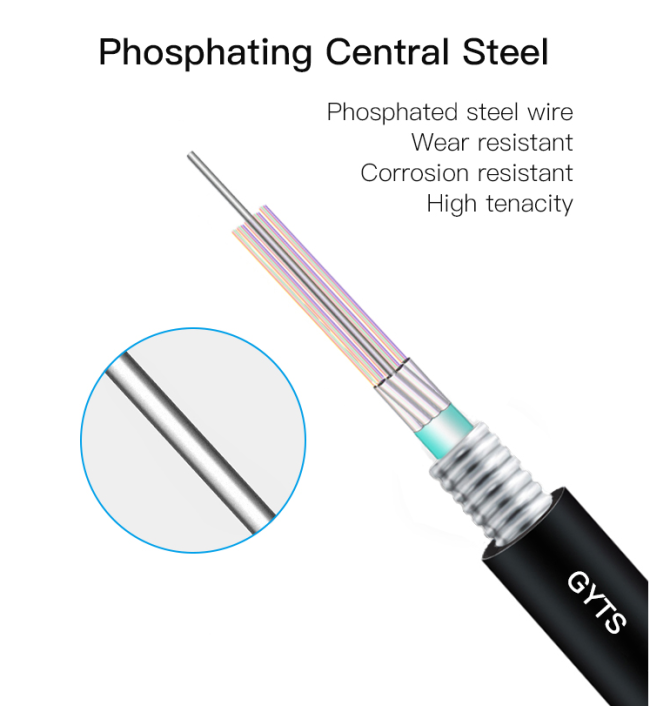

- Single steel wire used as the central strength member
- Special water-blocking filling compound in the loose tube.
- 100% cable core filling
Dimensions of Cable Constructions
| Fiber count | Structure | Fibers per tube |
Loose tube diameter (mm) |
CSM diameter/pad diameter (mm) |
Nominal Thickness of outer jacket (mm) |
Cable diameter/ Height (mm) |
Cable weight (kg/km) |
| 4 | 1+5 | 4 | 1.8±0.1 | 1.4/1.4 | 1.4 | 9.0±0.3 | 80 |
| 6 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.4 | 9.0±0.3 | 80 |
| 8 | 1+5 | 8 | 1.9±0.1 | 1.4/1.4 | 1.4 | 9.0±0.3 | 80 |
| 12 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.4 | 9.0±0.3 | 80 |
| 24 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.4 | 9.0±0.3 | 85 |
| 36 | 1+6 | 12 | 2.2±0.1 | 1.6/1.6 | 1.6 | 9.7±0.3 | 100 |
| 48 | 1+5 | 12 | 2.2±0.1 | 1.6/1.6 | 1.6 | 9.7±0.3 | 105 |
| 60 | 1+5 | 12 | 2.2±0.1 | 1.6/1.6 | 1.6 | 9.7±0.3 | 110 |
| 72 | 1+6 | 12 | 2.2±0.1 | 2.0/2.0 | 1.6 | 10.6±0.3 | 122 |
| 96 | 1+8 | 12 | 2.2±0.1 | 1.6/3.5 | 1.6 | 12.0±0.3 | 160 |
| 144 | 1+12 | 12 | 2.2±0.1 | 2.0/6.4 | 1.8 | 15.6±0.3 | 240 |
| 216 | 1+6+12 | 12 | 2.2±0.1 | 2.2/2.2 | 1.8 | 16.0±0.3 | 270 |
| 288 | 1+9+15 | 12 | 2.2±0.1 | 2.2/4.3 | 2.0 | 18.2±0.3 | 282 |
There are twelve fiber color code.They are A grade fiber.
All products will have been strictly quality checked in house before packing.
All products will be well packed before shipment.
We are the factory, having quality control.
We privide you factory price.You can save costs, having good quality.
Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed
We go to exhibitions. We have rich foreign trade experience, you can save purchasing time.
Don't hesitate to contact me. Whatsapp:+86 18122383351
FQA
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
A:The MOQ of Fiber Optic cable is 1km.
3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
