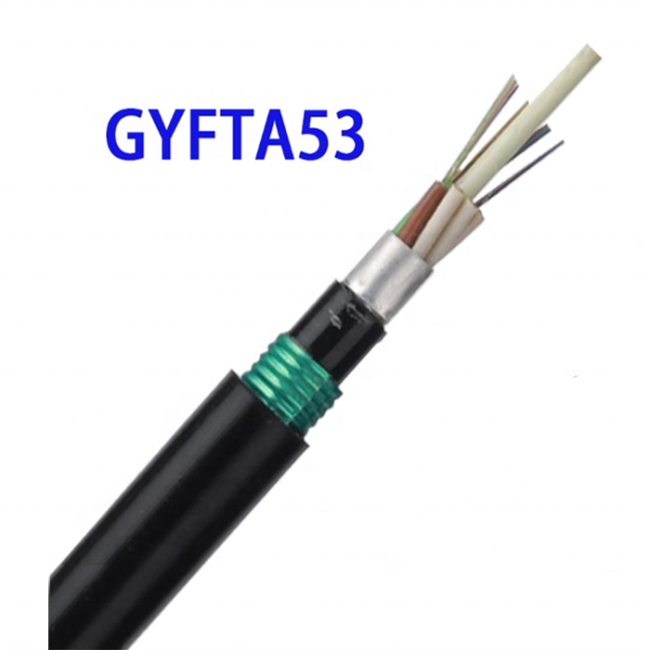

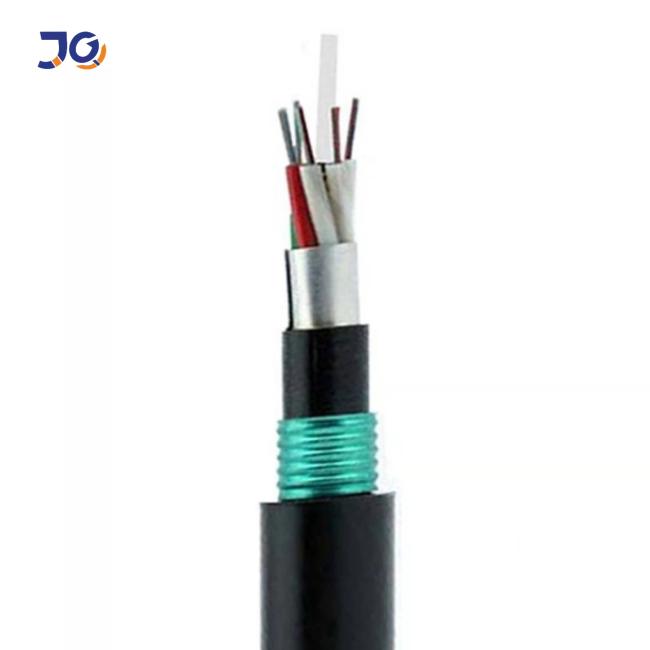

Direct Buried 12 24 48 96 144 Core Stranded Loose Tube Non Metallic Armored Fiber Optic Cable GYFTA53

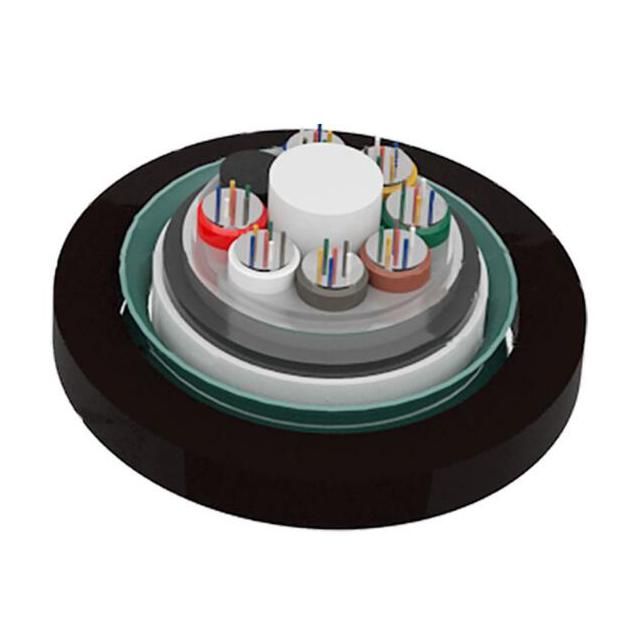

The GYFTA53 cable is constructed by inserting a 250μm fiber into a loose tube made of a high-modulus material filled with a water-repellent compound.

The center of the core is a non-metallic reinforcing core (FRP).

For some cores, a non-metallic reinforcing core is required to be extruded with a layer of polyethylene (PE).

The loose tube (and the filling rope) is twisted around the central reinforcing core into a compact and round core, and the gap in the core is filled with a water blocking filler.

The plastic coated aluminum strip (APL) is longitudinally wrapped and then extruded with a polyethylene inner sheath.

The double-sided coated steel strip (PSP) is longitudinally wrapped and extruded into a polyethylene outer sheath to form a cable.

Standards

The GYFTA53 fiber optic cable complies with YD/T 901 and IEC 60794-1 standards.

Features

• Has good mechanical properties and temperature characteristics • The loose tube material itself has good hydrolysis resistance and high strength • The tube is filled with a special grease to protect the fiber • Good pressure resistance and softness • The following measures are taken to ensure the waterproof performance of the cable: - Single non-metallic center reinforcement core - The loose tube is filled with special waterproof compound - Full core filling - Plastic coated aluminum tape (APL) moisture barrier - Double-sided coated steel strip (PSP) improves the moisture resistance of the cable - Good water blocking material prevents longitudinal leakage of cable

Applicable fields:



Direct buried



Optical Parameters:

There are twelve fiber color code.They are A grade fiber.

OTDR testing

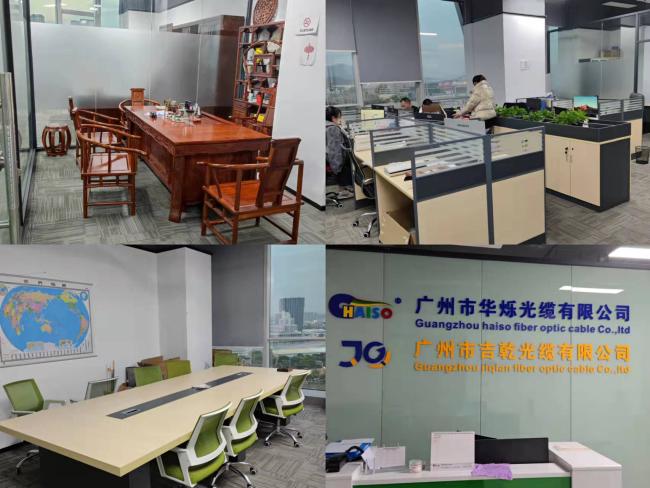

Company Picture

We are the factory, having quality control.

We privide you factory price.You can save costs, having good quality.

Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed

We go to exhibitions. We have rich foreign trade experience, you can save purchasing time.

Don't hesitate to contact me. Whatsapp:+86 18122383351

FQA

Q1.Are you the real manufacturer?
We are the real manufacturer with 10 year’s history.

Q2.What’s the MOQ?
The MOQ of Fiber Optic cable is 1km.

Q3.What’s delivery time?
The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

Q4.How to Store the Optical Fiber Cable Properly?

Store the drum indoor before using, the drum should place sideways not on the end.

Q5. Can you supply customized products and logo?
Yes. We supply OEM service.

Q6.What’s your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
