Central Loose Tube Single Mode Gyxtc8y 4 Core Fiber Cable
Price:
Negotiable
MOQ:
1KM
Delivery Time:
3-5 days, it depends on your quantity
Brand:
Jiqian
Product Description

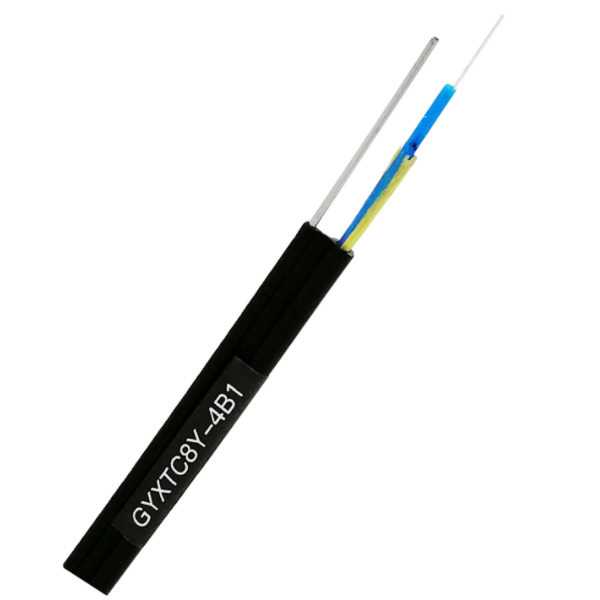

Aerial Central Loose Tube Single Mode 4 Core Fiber Optical Cable Gyxtc8y

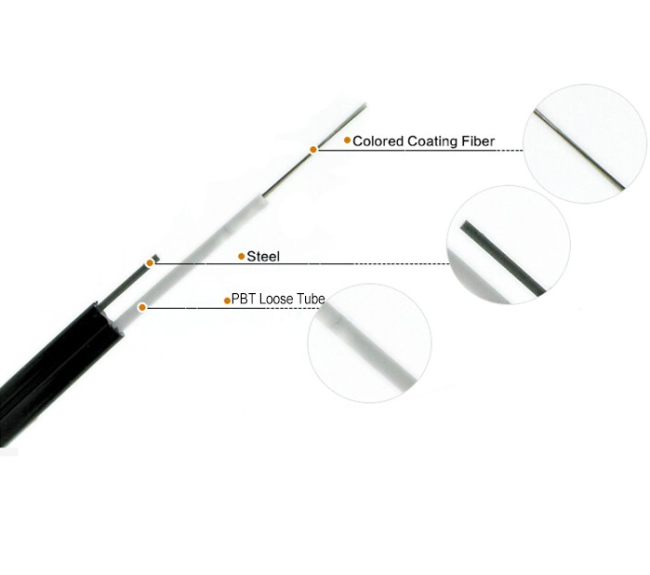

Strcture
GYXTC8Y fiber optic cable is a metal reinforcing member,loose jacket, central loose tuue type,steel-polyethylene bonded jacket,8-shaped self-supporting outdoor optical communicationcable.

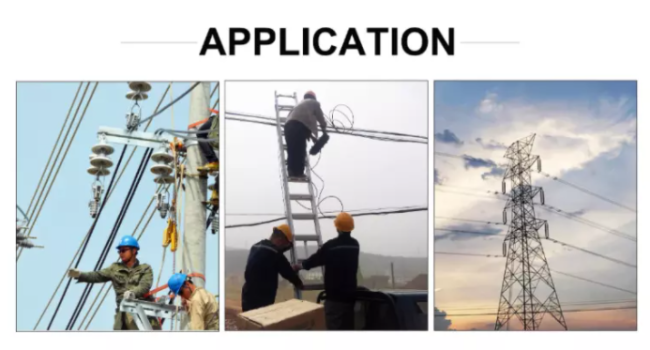

Applications:
Technical Parameters
| Fiber count | Structure | Fibers per tube |
Loose tube diameter (mm) |
CSM diameter/pad diameter (mm) |
Nominal Thickness of outer jacket (mm) |
Cable diameter/ Height (mm) |
Cable weight (kg/km) |
| 4 | 1+5 | 4 | 1.8±0.1 | 1.4/1.4 | 1.6 | 9.0*14.5 | 155 |
| 6 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.6 | 9.0*14.5 | 155 |
| 8 | 1+5 | 8 | 1.9±0.1 | 1.4/1.4 | 1.6 | 9.0*14.5 | 155 |
| 12 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.6 | 9.0*14.5 | 155 |
| 24 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.6 | 9.0*14.5 | 155 |
| 36 | 1+6 | 12 | 1.9±0.1 | 1.6/1.6 | 1.6 | 9.6*15.2 | 168 |
| 48 | 1+5 | 12 | 2.2±0.1 | 1.6/1.6 | 1.6 | 9.6*15.2 | 168 |
| 72 | 1+6 | 12 | 2.2±0.1 | 2.0/2.0 | 1.6 | 10.8*16.3 | 190 |
| 96 | 1+8 | 12 | 2.2±0.1 | 1.6/3.5 | 1.6 | 12*17.5 | 205 |
| 144 | 1+12 | 12 | 2.2±0.1 | 2.0/6.4 | 1.8 | 15.8*21.3 | 320 |
Packaging Details
1.Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet, then sealed by strong wooden battens.
1.Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet, then sealed by strong wooden battens.
