Uniloose Tube Steel Tape Armored Gyxtw Cable PE Jacket
MOQ:
1kilometer
Delivery Time:
2-4days
Brand:
Jiqian/OEM
Product Description
outdoor single mode unitube G652D 4 6 8 12 16 24 core armoured fiber optical cable with steel wire fibra optic gyxtw
Cable structure and parameter
| Fiber count |
Outer diameter |
Steel wire diameter |
Min.Bending Radius (Dynamic/Static) |
Max.Crush Resistance | Weight (approx.) |
| mm | mm | D | N/100mm² | kg/km | |
| 2,4,6,8 | 8.3 | 1.0 | 20/10 | 3000 | 66 |
| 10,12 | 9.0 | 1.0 | 20/10 | 3000 | 82 |
Fiber parameter
| Item | Unit | Specification | |
| Fiber Type | G.652D | ||
|
Mode field diameter |
1310nm | mm | 9.2±0.4 |
| 1550nm | mm | 10.4±0.8 | |
| Cladding diameter | mm | 125.0±1 | |
| Cladding non-circularity | % | ≤1.0 | |
| Core/cladding concentricity error | mm | ≤0.5 | |
| Coating diameter | mm | 245±5 | |
| Coating non-Circularity | % | ≤6.0 | |
| Coating/cladding concentricity error | mm | ≤12.0 | |
| Cable cut-off wavelength | nm | ≤1260 | |
|
Attenuation Coefficient |
1310nm | dB/km | ≤0.36 |
| 1550nm | dB/km | ≤0.22 | |
| Proof stress level | kpsi | ≥100 | |
Cable bending radius: 10 x cable diameter (static)
20 x cable diameter (dynamic)
Application temperature range
| Operating temperature range | -40℃ to +60℃ |
| Storage / Transport temperature range | -40℃ to +60℃ |
| Installation temperature range | -20℃ to +60℃ |

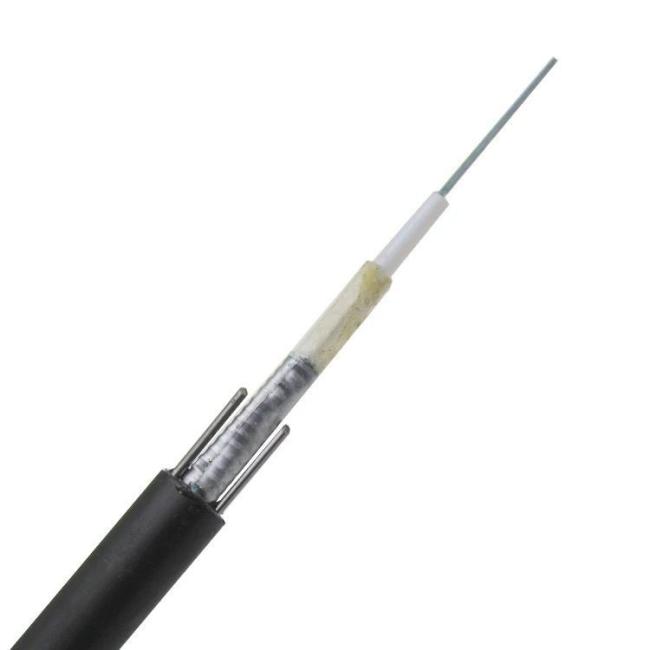

Cable Structure
