Duct 48 96 144 Core GCYFTY Communication Air Blown Microduct Fiber Cable
Price:
Negotiable
MOQ:
1KM
Delivery Time:
3-5 days, it depends on your quantity
Brand:
Jiqian
Product Description

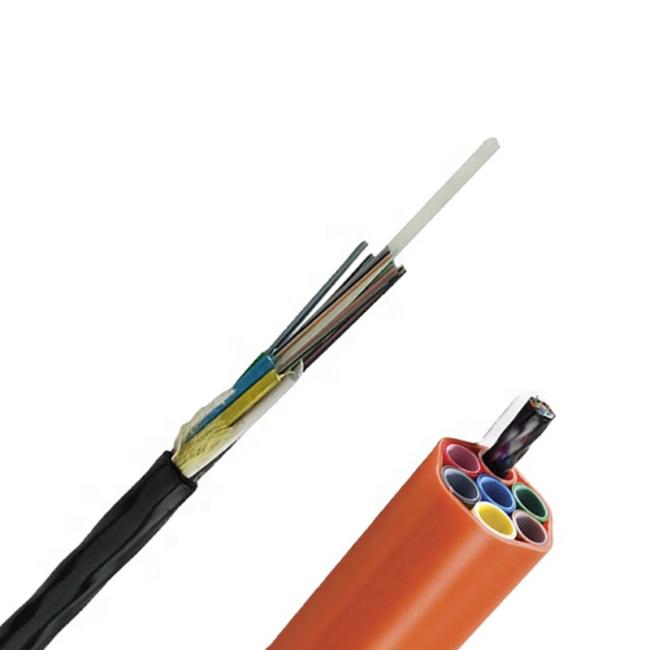

Duct 48 96 144 Core GCYFTY Communication Air Blown Micro Cable
Description

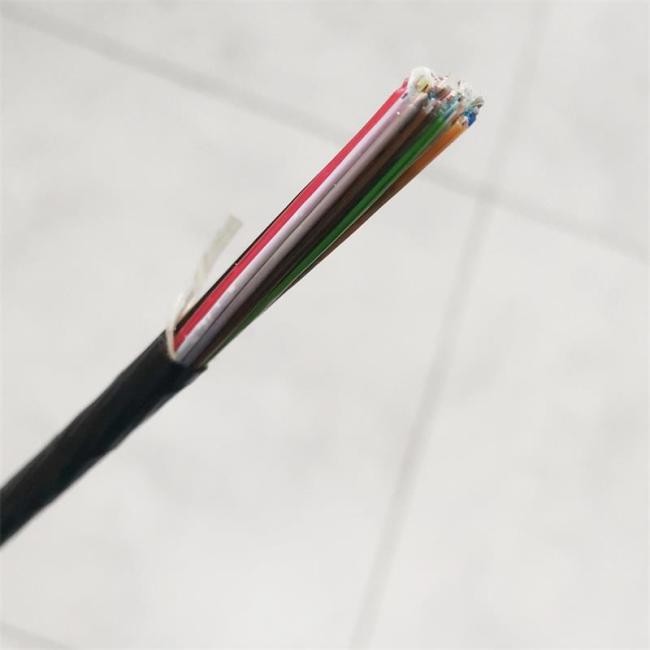

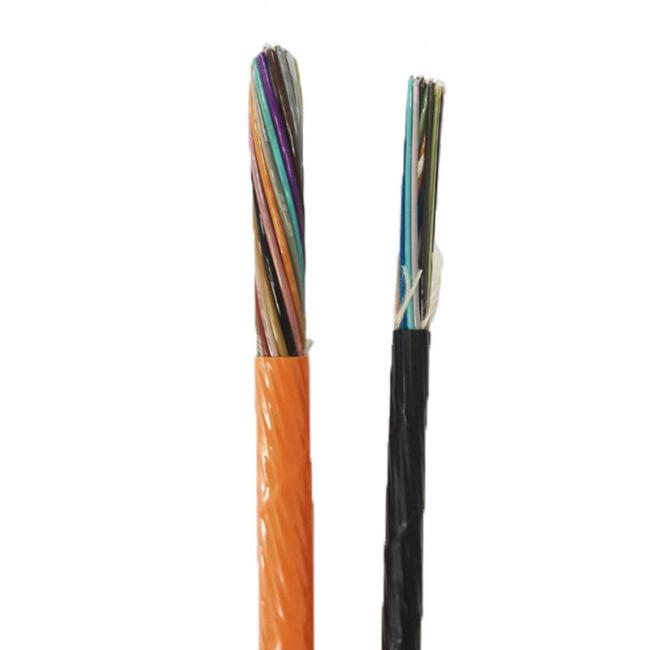

The fibers,250um, are positioned in a loose tube made of a high modules plastic.
The tubes are filled with a water-resistant filling compound.
A fiber reinforce(FRP) located in the center of core as a non-metallic strength member.
The tubes(or fillers) are stranded around the strength member into a compact and circular core.
The cable core is protective from water ingress by water-blocking yarn.
The cable is completed with a HDPE sheath.
Application
This product is suitable for FTTX, access network and backbone network.
Technical requirements of fiber
| No | Items | Test Standard | Test Method |
| 1 | Core non-circularity | ≤ 6% |
ITU-T G.652 |
| 2 | Cladding diameter | 125.0±0.7μm | |
| 3 | Core/cladding concentricity error | ≤ 0.6μm | |
| 4 | Cladding non-circularity | ≤ 1.0% | |
| 5 | Coating diameter | 245±10μm | |
| 6 | Coating/cladding concentricity error | ≤ 12μm | |
|
7 |
Attenuation coefficient |
1310nm≤0.35dB/km | |
| 1550nm≤0.21dB/km | |||
| 9 | Zero dispersion slope | ≤ 0.092ps/(nm2·km) | |
| 10 | Zero dispersion wavelength | 1300~1324nm | |
| 11 | Polarization mode dispersion | ≤ 0.20 ps/√km |
ITU-T G.652 |
| 12 | Mode field diameter | 1310nm:9.0±0.4μm | |
| 13 | Cut-off wavelength | 1170~1330nm | |
|
14 |
Chromatic dispersion |
1288~1339nm≤3.4ps(nm·km) | |
| 1550nm≤18 ps/(nm·km) | |||
| 1625nm≤22 ps/(nm·km) |
Packaging Details
1.Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet, then sealed by strong wooden battens.
Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
