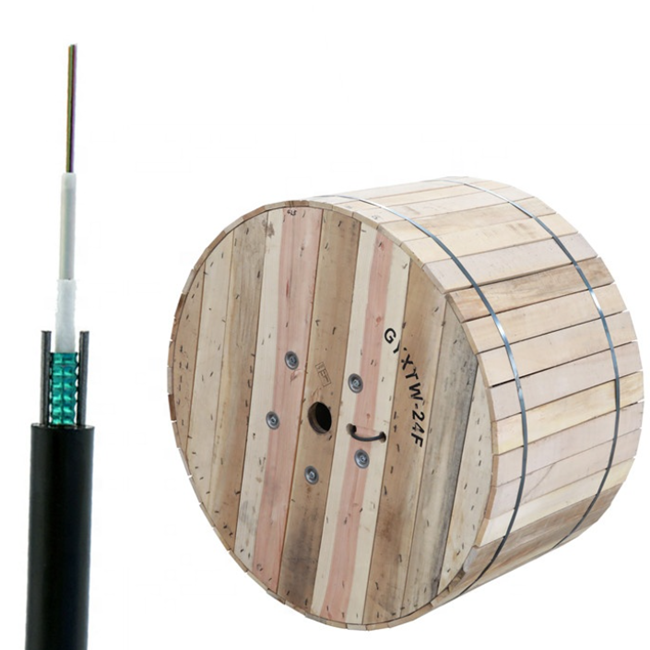

Steel Tape Armored 24 Core Single Mode Outdoor Fiber Optic Cable gyxtw MOQ 1KM

Name: Steel Tape Armored 24 Core Single Mode Outdoor Fiber Optic Cable gyxtw MOQ 1KM
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.

Price Negotiable

Price: Negotiable

MOQ: 1 kilometer

Delivery Time: 3-5days

Brand: JQ/OEM

Product Description

Outdoor duct armoured steel 12 24 48 96 core G652D Fiber Optic Cable anti rodent cable GYXTW

Characteristics

Good mechanical and temperature performance

High strength loose tube that is hydrolysis resistant

Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
Two parallel steel wires ensure tensile strength

Small diameter, light weight and friendly installation

Dimensions of Cable Constructions

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter (mm)	Nominal Thickness of outer jacket (mm)	Cable diameter/ Height (mm)	Cable weight (kg/km)
4	1+5	4	1.8±0.1	1.4/1.4	1.4	8.5±0.3	75
6	1+5	6	1.85±0.1	1.4/1.4	1.4	8.5±0.3	75
8	1+5	8	1.9±0.1	1.4/1.4	1.4	8.5±0.3	75
12	1+5	6	1.85±0.1	1.4/1.4	1.4	8.5±0.3	75
24	1+5	6	1.85±0.1	1.4/1.4	1.4	8.5±0.3	75
36	1+6	12	1.95±0.1	1.5/1.5	1.6	8.8±0.3	85
48	1+5	12	1.95±0.1	1.5/1.5	1.6	9.3±0.3	90
60	1+5	12	1.95±0.1	1.6/1.6	1.6	9.3±0.3	90
72	1+6	12	1.95±0.1	2.0/2.0	1.6	9.6±0.3	95
96	1+8	12	1.95±0.1	1.4/3.2	1.6	11.5±0.3	120
144	1+12	12	1.95±0.1	2.0/5.7	1.8	14.2±0.3	185
216	1+6+12	12	1.95±0.1	2.0/2.0	1.8	14.5±0.3	200
288	1+9+15	12	1.95±0.1	2.0/3.7	1.8	16.2±0.3	240

Product Description

Packing

Packing
1/2/3/4km or customized length export wooden drum
FAQ
1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and productionfor fiber optic cable. Our factory is in Guangzhou city,welcome to visit us!
2.About the quality?
We will delivery before tested every fibers when finished production.
3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .
5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
