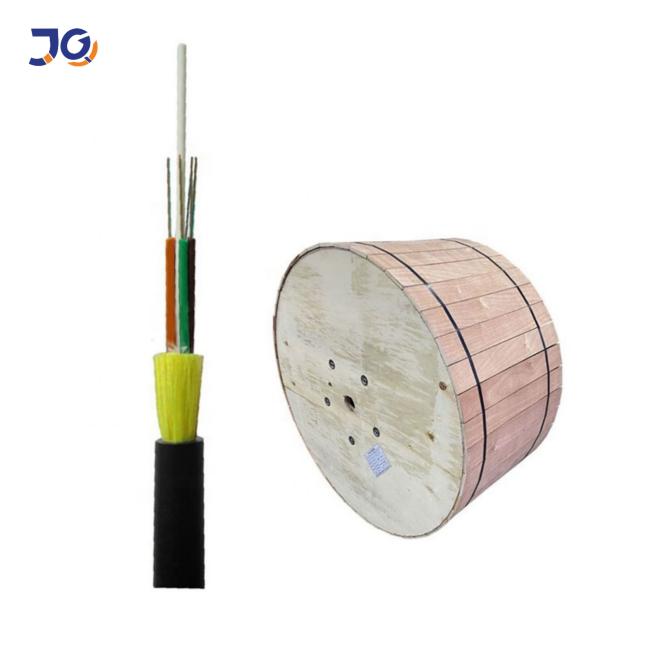

Overhead Single Jacket All Dielectric Self Supporting ADSS Span 200m 12 24 48 Core Fibra Optic Cable
Overhead Single Jacket All Dielectric Self Supporting ADSS Span 200m 12 24 48 Core Fibra Optic Cable

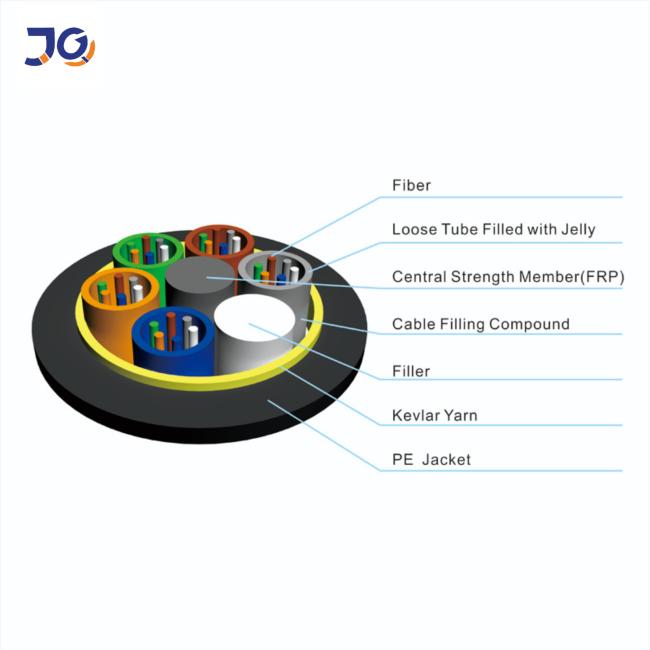

The fibers, are positioned in a loose tube made of a high modulus plastic.
The tubes are filled with a water-resistant filling compound.
A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member.

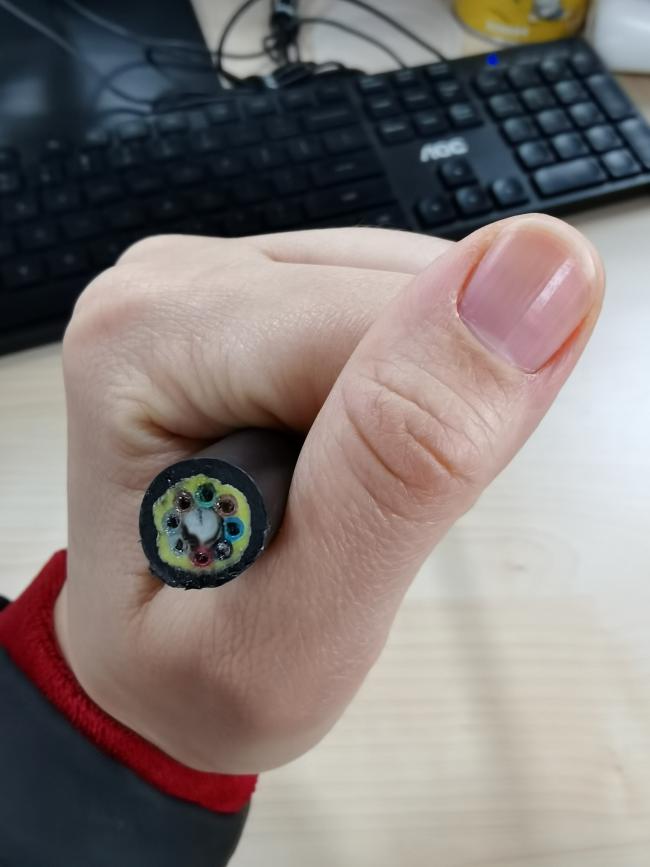

The tubes (and fillers) are stranded around the strength member into a compact and circular core.
The cable core is filled with filling gel to protect it from water ingress.
The kevlar yarn surrounded the cable core as the reinforce strength member, then the cable is completed with a PE sheath.
Dimensions of Cable Constructions
| Fiber count | Structure | Fibers per tube |
Loose tube diameter (mm) |
CSM diameter/pad diameter (mm) |
Nominal Thickness of outer jacket (mm) |
Cable diameter/ Height (mm) |
Cable weight (kg/km) |
| 4 | 1+6 | 4 | 1.9±0.1 | 2.0/2.0 | 1.6 | 9.8±0.2 | 82 |
| 6 | 1+6 | 6 | 2.0±0.1 | 2.0/2.0 | 1.6 | 9.8±0.2 | 82 |
| 8 | 1+6 | 4 | 1.9±0.1 | 2.0/2.0 | 1.6 | 9.8±0.2 | 82 |
| 12 | 1+6 | 6 | 2.1±0.1 | 2.0/2.0 | 1.6 | 9.8±0.2 | 82 |
| 24 | 1+6 | 6 | 2.1±0.1 | 2.0/2.0 | 1.6 | 9.8±0.2 | 85 |
| 36 | 1+6 | 12 | 2.2±0.1 | 2.0/2.0 | 1.6 | 10.0±0.2 | 85 |
| 48 | 1+6 | 12 | 2.2±0.1 | 2.0/2.0 | 1.6 | 10.0±0.2 | 88 |
| 72 | 1+6 | 12 | 2.2±0.1 | 2.0/2.0 | 1.6 | 10.5±0.3 | 98 |
| 96 | 1+8 | 12 | 2.2±0.1 | 2.0/3.4 | 1.7 | 11.8±0.3 | 123 |
| 144 | 1+12 | 12 | 2.2±0.1 | 3.0/7.2 | 1.7 | 15.2±0.3 | 175 |
Package & Delivery
Wooden drum:1KM 2KM 3KM 4KM for one roll
Shipping: By sea/by air or express delivery, it depends on the order quantity
Factory Show
We are a factory. Welcom to visit our factory.
Certificate
FAQ:
1. Are you a manufacturer?
Yes. We are a company integrating industry and trade. Our factory is located in Guangzhou, Guangdong Province, China.
2.How can you guarantee quality?
We conduct three inspections from raw materials to finished products, and then to the factory. 25-year guarantee period.
3.What product do you sell?
There are fiber optic cable, FTTH drop cable, communication cables, outdoor/indoor fiber cable.
