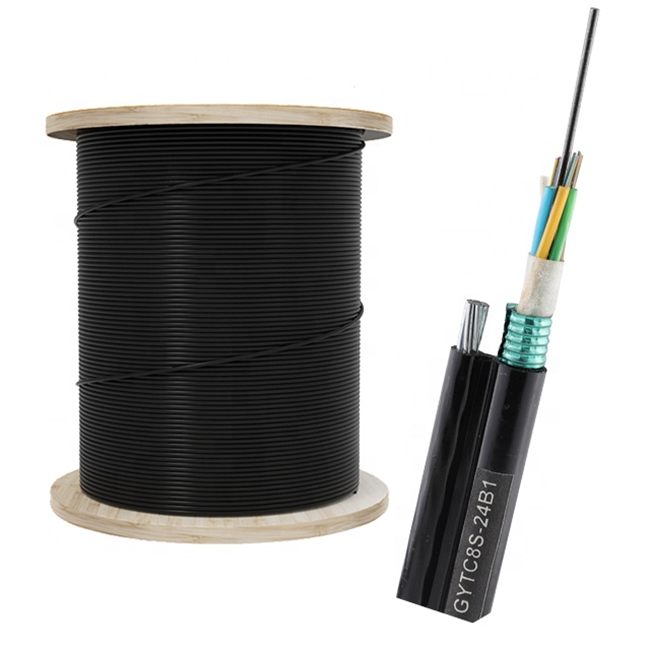

GYTC8S Figure 8 Single Mode Fiber Optic Cable Armored Aerial Self - Supporting
GYTC8S armored aerial self-supporting figure 8 single mode fiber optic cable
Dimensions of Cable Constructions
|
Fiber count |
Structure |
Fibers per tube |
Loose tube diameter (mm) |
CSM diameter/pad diameter (mm) |
Nominal Thickness of outer jacket (mm) |
Cable diameter/ Height (mm) |
Cable weight (kg/km) |
| 4 | 1+5 | 4 | 1.8±0.1 | 1.4/1.4 | 1.6 | 9.0*14.5 | 140 |
| 6 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.6 | 9.0*14.5 | 140 |
| 8 | 1+5 | 8 | 1.9±0.1 | 1.4/1.4 | 1.6 | 9.0*14.5 | 140 |
| 12 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.6 | 9.0*14.5 | 140 |
| 24 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.6 | 9.0*14.5 | 140 |
| 36 | 1+5 | 12 | 1.9±0.1 | 1.5/1.5 | 1.6 | 9.0*14.5 | 140 |
| 48 | 1+5 | 12 | 1.95±0.1 | 1.5/1.5 | 1.6 | 9.3*14.8 | 146 |
| 72 | 1+6 | 12 | 1.95±0.1 | 2.0/2.0 | 1.6 | 9.6*15.1 | 155 |
| 96 | 1+8 | 12 | 1.95±0.1 | 1.6/3.2 | 1.6 | 11.6*16.4 | 180 |
| 144 | 1+12 | 12 | 1.95±0.1 | 2.0/6.2 | 1.8 | 14.6*20 | 250 |
Characteristic
Steel wire strands have extremely high tensile strength, which is convenient for self-supporting overhead laying and reduces installation costs
With good mechanical properties and temperature characteristics
Material of loose tube has good hydrolysis resistance and high strength
The loose tube is filled with special gel, which protect the optical fiber
Take the following measures to ensure the waterproof performance of the optical cable:
-Single metallic wire center reinforced core
-Filled with special Water-blocking material in loose tube
-Complete cable core filling
- Moisture-proof layer of plastic-coated steel
Descriptions
Loose tube style, figure-8 optical fiber cable, Jelly compound, optical fiber cable with metallic central strength member of steel wire.
Filling compound and water-proof tape amoured with corrugated steel tape incorporation steel messenger wire suitable for overhead installation as pole to pole or pole to premises.
High strenght, tracking-resistant sheath.
Feature
Low dispersion and attenuation.
Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental characteristics.
The armoring of corrugated steel tape makes cable have nice moisture resistance and crush resistance performance.
Small cable diameter, light cable weight, self-supporting, easily to install.
Cable Structure
