4 Cores Unitube Light Armored GYXTW Aerial Fiber Optic Cable
Price:
Negotiable
MOQ:
1000m
Delivery Time:
2-4day
Brand:
jiqian
Product Description
4 Cores Unitube Light Armored GYXTW Aerial Fiber Optic Cable
GYXTW Optical Cable 4/ 6 / 8/12 Core Outdoor Single Mode Optical Fiber Cable

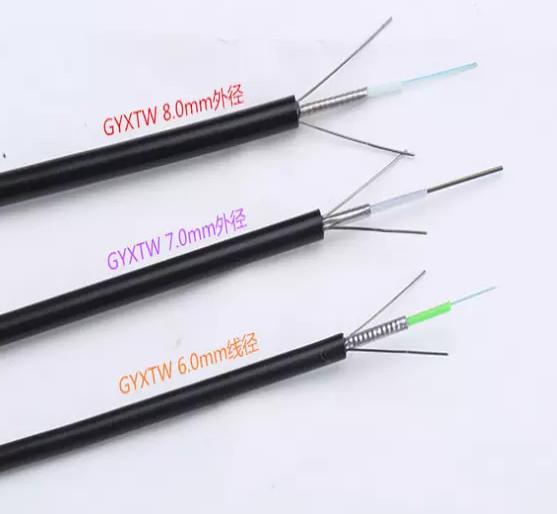

In the GYXTW cable, single-mode/multimode fibers are positioned in the loose tube, which is made of high modulus plastic materials and filled with filling compound. PSP is longitudinally applied around the loose tube, and water-blocking materials are distributed into interstices between them to guarantee the compactness and longitudinal water-blocking performance. Two parallel steel wires are placed at both sides of the cable core while PE sheath is extruded over it.
Characteristics:
|
1.Excellent mechanical and temperature performance guaranteed by the accurate excess fiber length
|
|
2.Critical protection to fibers, based on the excellent hydrolysis resistance and strength performance of tube material and special filling compound filled in the tube
|
|
3.Special compact structure to avoid the loose tube shrinkage
|
|
4.Excellent crush resistance and flexibility
|
|
5.PSP enhances the cable crush-resistance, impact-resistance and moisture-proof
|
|
6.Two parallel steel wires ensure tensile strength. Small diameter, light weight and installation friendliness with long delivery length
|
|
7. Excellent ultraviolet prevention with PE sheath
|
Product Parameter:
|
No. |
Items |
Unit |
Specification
|
|
|
G.652D
|
||||
|
1 |
Mode Field Diameter |
1310nm
|
μm
|
9.2±0.4
|
|
1550nm
|
μm
|
10.4±0.5
|
||
|
2
|
Cladding Diameter
|
μm
|
124.8±0.7
|
|
|
3
|
Cladding Non-Circularity
|
%
|
≤0.7
|
|
|
4
|
Core-Cladding Concentricity Error
|
μm
|
≤0.5
|
|
|
5
|
Coating Diameter
|
μm
|
245±5
|
|
|
6
|
Coating Non-Circularity
|
%
|
≤6.0
|
|
|
7
|
Cladding-Coating Concentricity Error
|
μm
|
≤12.0
|
|
|
8
|
Cable Cutoff Wavelength
|
nm
|
λcc≤1260
|
|
|
9 |
Attenuation (max.) |
1310nm
|
dB/km
|
≤0.36
|
|
1550nm
|
dB/km
|
≤0.24
|
||
|
Transmission Characteristics
|
|||||
|
|
|
G.655
|
G.655
|
50/125μm
|
62.5/125μm
|
|
Max Attenuation
(dB/km) (+20℃) |
850 nm
|
|
|
3.0
|
3.3
|
|
1300 nm
|
|
|
1.0
|
1.0
|
|
|
1310 nm
|
0.36
|
0.4
|
|
|
|
|
1550 nm
|
0.24
|
0.23
|
|
|
|
|
Cable Cute-off Wavelength (nm)
|
≤1260
|
≤1450
|
|
|
|
Cable Parameters:
|
Cable Count
|
Out sheath
|
Weight
|
Minimum allowable Tensile Strength
|
minimum allowable Crush Load
|
Minimum Bending Radius
|
Storage
|
|||
|
Diameter
|
(N)
|
(N/100mm)
|
(MM)
|
temperature
|
|||||
|
(MM)
|
(KG)
|
short term
|
long term
|
short term
|
long term
|
short term
|
long term
|
(℃)
|
|
|
2
|
8.3
|
78
|
1500
|
600
|
1000
|
300
|
20D
|
10D
|
20
|
|
4
|
8.3
|
78
|
1500
|
600
|
1000
|
300
|
20D
|
10D
|
20
|
|
6
|
8.3
|
78
|
1500
|
600
|
1000
|
300
|
20D
|
10D
|
20
|
|
8
|
8.3
|
78
|
1500
|
600
|
1000
|
300
|
20D
|
10D
|
20
|
|
10
|
8.3
|
78
|
1500
|
600
|
1000
|
300
|
20D
|
10D
|
20
|
|
12
|
8.3
|
78
|
1500
|
600
|
1000
|
300
|
20D
|
10D
|
20
|
Mechanical and Environmental Characteristics:
|
Items
|
Unit
|
Specifications
|
|
|
Tensio (Long Term)
|
N
|
600
|
|
|
Tension (Short Term)
|
N
|
1500
|
|
|
Crush (Long Term)
|
N/10cm
|
300
|
|
|
Crush (Short Term)
|
N/10cm
|
1000
|
|
|
Min. Bend Radius (Dynamic)
|
mm
|
20D
|
|
|
Min. Bend Radius (Static)
|
mm
|
10D
|
|
|
Installation Temperature
|
℃
|
-20~+60
|
|
|
Operating Temperature
|
℃
|
-40~+70
|
|
|
Storage Temperature
|
℃
|
-40~+70
|
|
Product Packing :
1). 4km/reel
2). 5km/reel Color Box and OEM Package available.
20" Container Full Load: 400km.
40" Container Full Load: 800km.
FAQ:
1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!
2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available
3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.
4.What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.
5.Delivery time?
Generally 3-7 working days, also it is according to qty.
6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.
