Single Jacket Span 100cm ADSS Fiber Optic Cable Anti - Rodent
Price:
Negotiable
MOQ:
1km
Delivery Time:
2-4days
Brand:
jiqian
Product Description
Single jacket Span 100mcAnti-rodent Fibra Optica Cable Outdoor ADSS

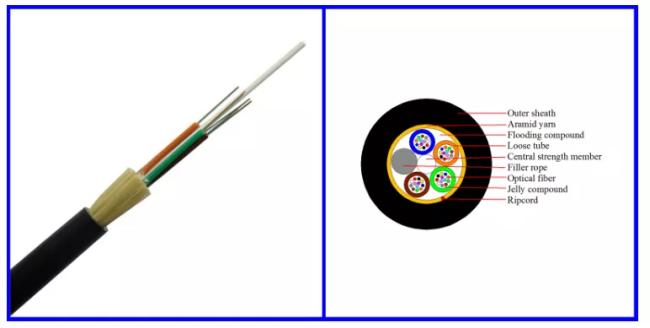

ADSS cable is loose tube stranded.Fibers,250μm,are positioned into a loose tube made of high modulus plastics.The tubes are filled with a water-resistant filling compound.The tubes(and fillers) are stranded around a FRP(Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.After the cable core is filled with filling compound,it is covered with thin PE(polyethylene)inner sheath.After stranded layer of aramid yarns are applied over the inner sheath as strength member,the cable is completed with PE or AT(anti-tracking)outer sheath
Applications
Suitable for network in high electromagnetic interfering places.
Suitable for aerial.
Long distance and local area network communication.
Structure and Technical Specifications ADSS-SJ(50-150M)
| Ref. Outer Diameter (mm) |
Ref. Weight (kg/km) |
Rec. Daily Max. (kN) |
Max Allowable Working Tension (kN) |
Break Strength (kN) |
Strength Member CSA (mm2) |
Modulus of (kN/mm2) |
Heat Expansion Coefficient (x10- 6/K) |
Suitable Span (NESC Standard,m) |
||||
| PE Jacket | AT Jacket | A | B | C | D | |||||||
| 11 | 110 | 120 | 1.0 | 2.5 | 8 | 3.0 | 6.6 | 2.1 | 120 | 80 | 100 | 80 |
| 11.5 | 115 | 125 | 1.5 | 4 | 10 | 4.5 | 7.3 | 1.8 | 180 | 120 | 150 | 120 |
| 12 | 120 | 130 | 2.5 | 6 | 15 | 7.5 | 8.3 | 1.5 | 250 | 150 | 290 | 150 |
Structure and Technical Specifications ADSS-DJ(50-750M)
| Ref. Outer Diameter (mm) |
Ref. Weight (kg/km) |
Rec. Daily Max. (kN) |
Max Allowable Working Tension (kN) |
Break Strength (kN) |
Strength Member CSA (mm2) |
Modulus of (kN/mm2) |
Heat Expansion Coefficient (x10- 6/K) |
Suitable Span (NESC Standard,m) |
||||
| PE Jacket | AT Jacket | A | B | C | D | |||||||
| 12.5 | 125 | 136 | 1.5 | 4 | 10 | 4.6 | 7.6 | 1.8 | 160 | 100 | 140 | 100 |
| 13.0 | 132 | 142 | 2.25 | 6 | 15 | 7.6 | 8.3 | 1.5 | 230 | 150 | 200 | 150 |
| 13.3 | 137 | 148 | 3.0 | 8 | 20 | 10.35 | 9.45 | 1.3 | 300 | 200 | 290 | 200 |
| 13.6 | 145 | 156 | 3.6 | 10 | 24 | 13.8 | 10.8 | 1.2 | 370 | 250 | 350 | 250 |
| 13.8 | 147 | 159 | 4.5 | 12 | 30 | 14.3 | 11.8 | 1.0 | 420 | 280 | 400 | 280 |
| 14.5 | 164 | 177 | 5.4 | 15 | 36 | 18.4 | 13.6 | 0.9 | 480 | 320 | 460 | 320 |
| 14.9 | 171 | 185 | 6.75 | 18 | 45 | 22.0 | 16.4 | 0.6 | 570 | 380 | 550 | 380 |
| 15.1 | 179 | 193 | 7.95 | 22 | 53 | 26.4 | 18.0 | 0.3 | 670 | 460 | 650 | 460 |
| 15.5 | 190 | 204 | 9.0 | 26 | 60 | 32.2 | 19.1 | 0.1 | 750 | 530 | 750 | 510 |
FAQ:
1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!
2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available
3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.
4.What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.
5.Delivery time?
Generally 3-7 working days, also it is according to qty.
6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.
7.Which brand of fiber do you use?
Corning,YOFC,Fiberhome,etc
