Outdoor GYXTW Communication Cables Central Loose Tube 16 Core Fiber Optic Cable

Name: Outdoor GYXTW Communication Cables Central Loose Tube 16 Core Fiber Optic Cable
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.

Price Negotiable

Price: Negotiable

MOQ: 1KM

Delivery Time: 3-5 days, it depends on your quantity

Brand: Jiqian

Product Description

Outdoor GYXTW Communication Cables Central Loose Tube 16 Core Fiber Optic Cable​
Armored Uni-Tube Single Jacket/Single Armor fiber optic cable with fibers placed in loose buffer tube. The cable core is protected with a corrugated steel tape armor and cover with a black polyethylene outjacket. Two embedded steel wire provide desire tension.

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic.
The tubes are filled with a water-resistant filling compound.

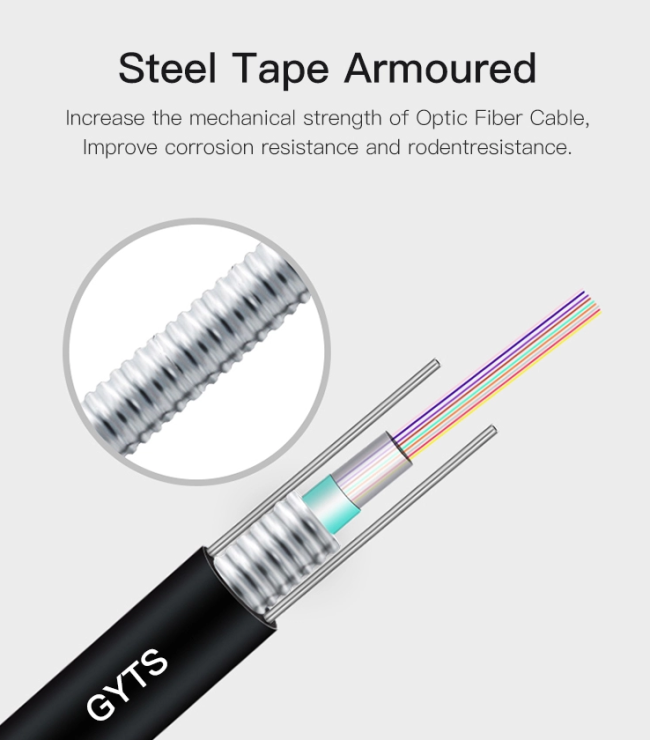

The tube is wrapped with a layer of corrugated steel tape longitudinally. Between the corrugated
steel tape and the loose tube water-blocking material is applied to keep the cable compact
and watertight. Two parallel steel wires are placed at the two sides of the steel tape.
The cable is completed with PE sheath

Product Description

			Product Name

			GYTS Outdoor Fiber Optic Cable

			Jacket Material

			PE

			Structure

			Stranded Loose Tube Steel Tape Cable

			Package

			2km/drum or customized

Mechanical and Environmental Characteristics

			Item
			Unit
			Specifications

			Tension(Long Term)
			N
			600

			Tension(Short Term)
			N
			1500

			Crush(Long Term)
			N/10cm
			300

			Crush(Short Term)
			N/10cm
			1000

			Min. Bend Radius(Dynamic)
			mm
			20D

			Min.Bend Radius(Static)
			mm
			10D

			Installation Temperature
			℃
			-40～+60

			Operating Temperature
			℃
			-40～+70

			Storage Temperature
			℃
			-40～+70

			Repeating bending
			Load:250N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage.

			Torsion
			Load:250N; number of cycles:10; twist angle:±90° No obvious addition attenuation, no fiber break and no cable damage.

			Impact
			Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attenuation, no fiber break and no cable damage.


Packaging Details

1.Wooden reel, 1000m/reel,2000m/reel,3000m/reel,customer's requirements are also welcomed;

2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet,then sealed by strong wooden battens.

Delivery

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
