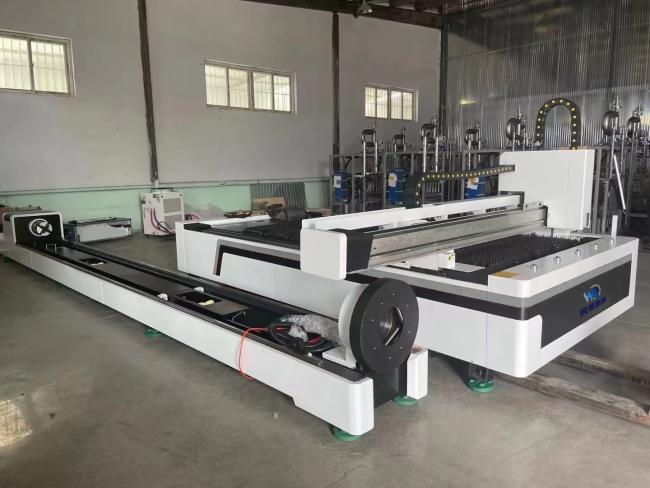

6020 Plate Tube Integrated Machine Metal Fiber Laser Cutting Machine
Optional Side Potation Axis
The standard length is 3000mm/ 6000mm/ 9000m side rotation axis device, which can process square tubes, round tubes, oval tube, rectangular tube, irregular tube and other metal tube.
Clamp design: The electric clamp design is used on both sides, which can automatically adjust the center. The adjustable range of the diagonal is 20-220mm.
Automatic support installation: It adopts intelligent tube bracket design, which can solve the deformation problem during the cutting process of long tubes.
It can process both metal plates and metal pipes, one affordable laser cutter for two purposes, saving space and cost, and improving production efficiency.
| Model | HN-3015/HN-2040/HN-2060 |
| Working are | 3000mm*1500mm |
| Miximum length of pipe(Options) | 3000mmor6000mm |
| Limits of pipe(Customized) | Circular tube: Φ20mm~Φ120mm;Square tube: Φ20mm~80mm |
| Laser type | Fiber laser generator |
| Laser power(optional) | 500~2000W |
| Transmission system | Double serve motor ＆gantry＆rack＆pinion |
| Pipe cutting system(optional) | Yes |
| Maximum speed | 100m/min |
| Maximum accelerated speed | 1.0G |
| Position accuracy | ±0.15mm/1000mm |
| Reposition accuracy | ±0.02mm/1000mm |
| Graphic format supported | CAD,DXF(etc) |
| Working environment | Temp:0-40℃,humidity:≤80%,No condensation |
| Total power | 10KW |
| Power supply | 380V/50Hz/60Hz |
| Overall dimension(include cutting machine in 3 meters long) | 4350mm*3200mm*1740mm |
| Overall dimension(include cutting machine in 6 meters long) | 7650mm*3200mm*1740mm |

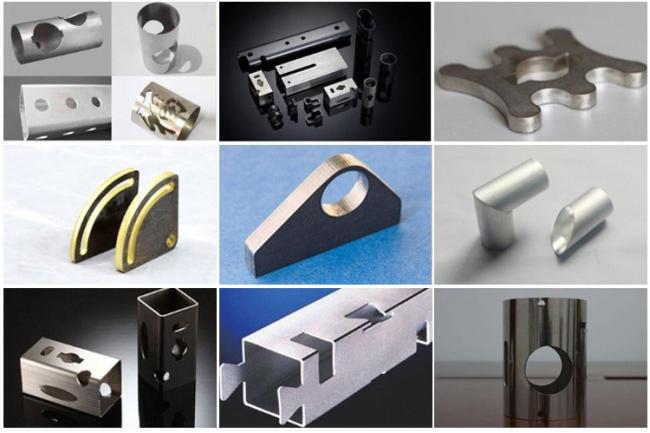

Product application
Fiber laser cutting equipment is suitable for metal cutting of stainless steel plates (tubes), low carbon steel plates (tubes), alloy steel plates, spring steel plates (tubes), iron plates (tubes), galvanized plates, aluminum plates (tubes), copper plates (tubes), Brass plates, bronze plates, gold-plated plates, silver plates (tubes), metal plates, pipes, etc.

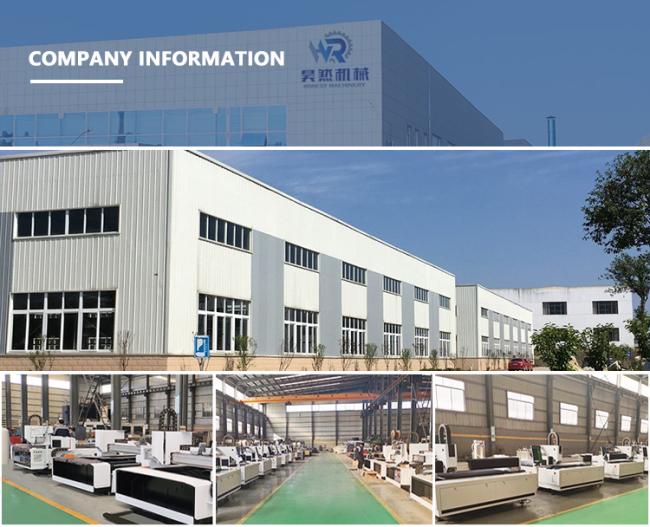

Factory introduction
Shandong honest Machinery Co., Ltd. is a provincial key enterprise specializing in the R & D of CNC equipment. It integrates development, production and sales.
The company has a series of optical fiber laser cutting machines, plasma cutting machines, CNC engraving machines and other products, which are widely used in metal, machinery, mold, advertising, wood processing, stone processing and other industries. The equipment is sold all over the provinces and autonomous regions of the country, and exported to Russia, Mongolia, Mongolia and other countries. With advanced manufacturing technology, large-scale production and high-quality product quality, Professional user training and timely after-sales service are the basis to ensure customer satisfaction.
Integrity products have been widely used in advertising industry, woodworking industry, craft gifts, building models, electronics, CAD / CAM industrial mold industry, decoration, clothing, packaging and printing, logo, seal and other industries; Due to its unique cost performance, it has completely replaced imported similar products in various domestic application fields.
Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 3-20 working days after payment.
Certifications
All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us.
Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
