High Power Speed Cnc Sheet Metal Double Table Fiber Laser Cutting Machine
Product Information:
The fiber laser cutting machines are similar to pantographs but, instead of the rotating spindle, they mount a head with a system of lenses that focus the laser beam in a single point of decimal dimensions, to facilitate and optimize the cut. They are machines that, moving on 3 or more axes, allow the cutting of various metals through a diode laser source transmitted on an optical fiber system with a yield of about 100 times higher than gas sources.
Applications primarily suited for sheet metal processing,such as various metal products processing industries,agricultural machinery industry ,automobiles, aircraft and ships,electrical equipment,lighting advertising industry,elevator manufacturing,kitchen electrical appliances and so on.
Product Data:
| Model | HN-1530 laser cutting machine |
| Working area | 1500mm x 3000mm |
| Laser type | Fiber laser |
| Rated laser power(optional) | 1000W |
| Traditional system | Gantry double drive structure |
| Lubrication system | Fully automatic |
| Maximum speed | 100m/min |
| Maximum acceleration | 1.0G |
| Positioning accuracy | ±0.01mm/1000mm |
| Repeated positioning accuracy | ±0.03mm/1000mm |
| Support for graphic formats | CAD,DXF(etc) |
| Work environment | 0-40°C,humidity≤80%,no condensation |
| Total power | 20KW |
| Power demand | Three phase 380V /50HZ /60HZ |
| Outline size | 4450mm x 2450mm x 1800mm |
| Total weight approximately | 4000KG |
Product Application:

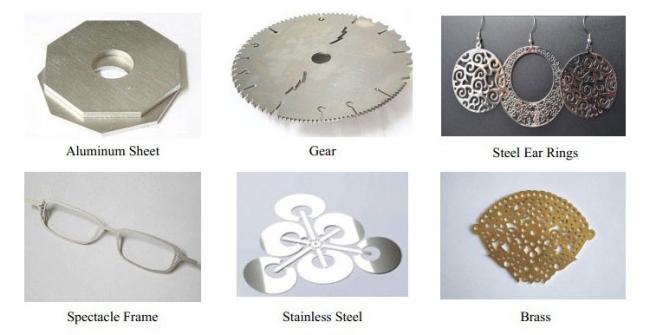

Materials that can be processed by the fiber laser cutting machine: It can cut a variety of metal plates and pipes, mainly suitable for stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet, galvanized steel, pickling Plate, copper, silver,Cutting of metal plates and pipes such as gold and qin.
The applicable range of fiber laser cutting machine: metal sheet processing, advertising sign production, high and low voltage electrical cabinets Production, mechanical parts, kitchenware, automobiles, machinery, metal crafts, saw blades, electrical parts, eye industry, elastic Reeds, circuit boards, electric kettles, medical microelectronics, hardware, knife measuring tools and other industries.
Product Advantage:
The processing advantages of fiber laser cutting machine are as follows:
(1) High precision, fast speed, narrow cutting seam, minimum heat-affected zone, smooth cutting surface without burrs;
(2) The laser cutting head does not touch the surface of the material and will not scratch the workpiece;
(3) The slit is the narrowest, the heat-affected zone is the smallest, the local deformation of the workpiece is small, and there is no mechanical deformation;
(4) Good processing flexibility, can process any graphics, and can also cut pipes and other profiles;
(5) It can cut any hardness materials such as steel plate, stainless steel, aluminum alloy plate, cemented carbide, etc. without deformation Cut.
