1500 X 3000 MM 1500W Fiber Laser Cutting Machine For Metal Sheet
Product Information:
Fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and Japan THK Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G.
| Model | HN-1530 Metal fiber laser cutting machine |
| Working Area | 1500*3000mm |
| Laser Power | 500W/1000W/1500W/2000W Raycus |
| Laser Wave Length | 1064nm |
| Working Table | Saw tooth |
| Maximum Idle Running Speed | 1200mm/s |
| Position Accuracy | ±0.05mm/m |
| Position Speed | 20m/min |
| Minimum Line Width | ± 0.02mm |
| Cutting Thickness | ≤6mm |
| Software and Control System | NC Editor (Optional Cypcut) |
| Position Type | Red dot |
| Power Consumption | ≤12KW |
| Working Voltage | 220V-380V/50-60Hz |
| Auxiliary Gas | oxygen, nitrogen, air |
| Air Proportional Valves | For power 1000W and higher |
| Working life of fiber module | More than 100000 hours |
| Fiber laser cutting head | WEIHONG or Raytools |
| Software | Compatible with various formats |
| Computer | Yes |
| Water cooling system | S&A industry chiller |
| Motor | Japan Yasakawa two 850W Y motors + 850W X motor |
| Driver | Yasakawa 1000W |
| Reducer | Shimpo/ ASG From Japan |
| Liner guider system | Taiwan HIWIN |
| Rack gear | YYC |
| Electric component | Schneider made in France |
| Weight | 3000Kg |

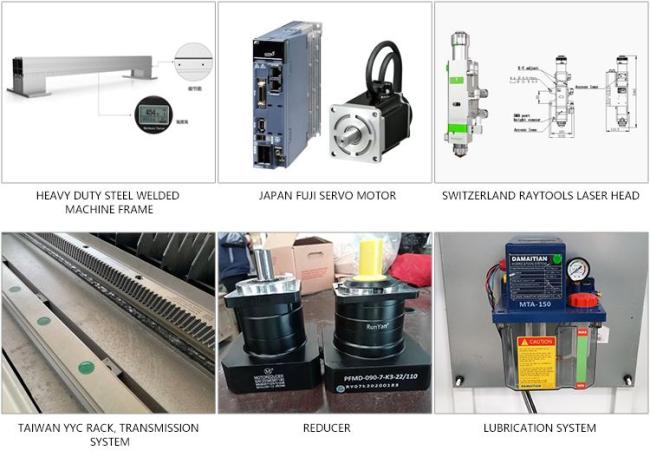

Product Details:
Fiber lasers have higher performance than many similar products. Fiber lasers provide a higher level of beam quality, can be highly focused to achieve a very high level of accuracy, and increase power density. This also means that tasks can be completed at a faster speed and lower power consumption.
Certifications:
All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us.
Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
FAQ:
1. Free consultation service before, during, and after sales;
2. Free project planning and design services;
3. Free debugging of equipment until everything is functional;
4. Free long distance shipping management from seller's factory to named place by buyer;
5. Free maintenance and operating training personally;
6. Free new production techniques and formulas;
7. Provide 1 year complete warranty and life-time maintenance service;
8. We will provide the consumable parts at an agency price.
9. 24 hours online service, free technical support.
10. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions,please kindly tell me.
