1000W Engraving Stainless Laser Sheet Metal Cutter DXF Graphic

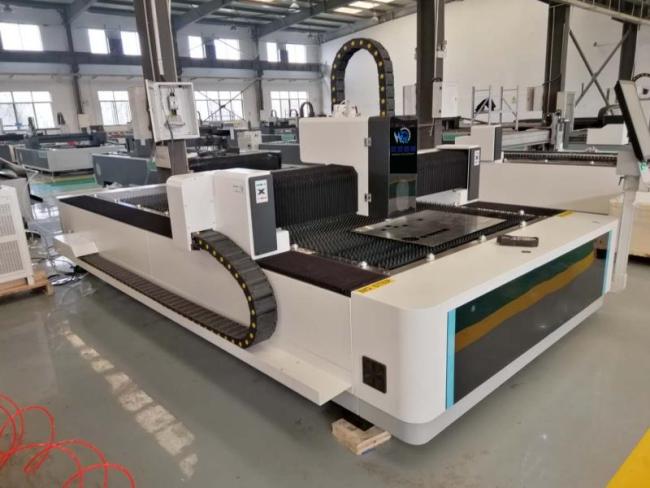

1530 X 1000 Watt Metal Engraving Stainless Cutter Fiber Laser Cutting Machine
Fiber laser cutting machine is a laser cutting machine that uses a fiber laser generator as a light source. A new type of fiber laser is used to output high-energy-density laser beams and gather them on the surface of the workpiece to instantly melt and vaporize the area irradiated by the ultra-fine focus spot on the workpiece. Automatic cutting is realized by moving the spot irradiation position through the CNC mechanical system.
►Machine Data
| NAME | LASER CUTTING MACHINE |
| MODEL | HN-1530-1000W |
| Maximum running speed | 90m/min |
| Laser wavelength | 1080 nm |
| Minimum cutting line width | 0.1mm |
| Rated output power | 50--1000W |
| X, Y axis positioning accuracy | ≤±0.015㎜ |
| Repeated positioning accuracy of worktable | ≤±0.015㎜ |
| Maximum load of worktable | 500KG |
| Effective processing area | 1500*3000mm, |
| Z axis travel | 120mm |
| Area | 4.5*2.5*1.5m |
| Machine power | 12KW |
| Chiller | 2kw |
| Power supply | 380v±10% |
| Red light positioning | provide |
►Product Advantage
1. High electric-optical conversion efficiency of optical fiber laser, with conversion efficiency up to over 30%.
2. Optical fiber laser adopts semiconductor modularization and redundancy design. There is no optical lens in the resonator, and no start-up time is required. It has the advantages of no regulation, no maintenance and high stability, which reduces the cost of accessories and maintenance time, which cannot be compared with the traditional laser.
3. fiber laser output beam quality, high power density, very conducive to the absorption of metal materials, with excellent cutting, welding ability, so that the cost of processing the lowest.
4. The optical route of the whole machine is optical fiber transmission, which does not need complicated light guide system such as reflector. The optical path is simple, the structure is stable, and the external optical path is maintainable.
5. The cutting head contains protective lenses, which makes the consumption of expensive and consumable products such as focusing lenses very small.
►Application
There are many application industries of welding robot, including engineering machinery, petrochemical, energy, nuclear power, rail transit, aerospace, shipbuilding, mining, machinery, automobile, metallurgical equipment, food machinery, medical machinery and other industries.
1. Automobile industry.Many corners of the automobile industry, such as car doors, exhaust pipes and so on, after the formation of some extra corners may burr needs to be dealt with, assuming that the precision is difficult to reach manually, and then a lot of efficiency.Adopting robot laser cutting machine can deal with batch processing quickly.

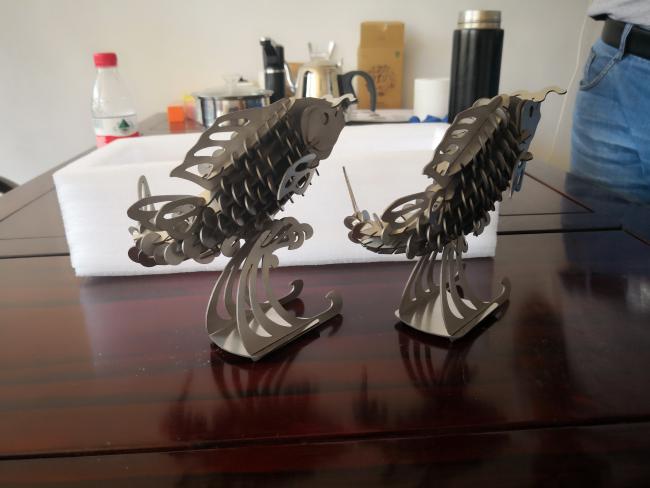

2. Advertising.Advertising industry because of more customization, the effectiveness of traditional methods is very low, the use of laser cutting machine, no matter how thick the plate, no matter how many font, laser cutting machine will make you satisfied.
►After Sale Service
1, accept customer consultation, according to user needs, determine the engraving model, customized equipment for customers.
2. Video training for engraving machine operators.
3, the equipment warranty for one year, lifetime free to receive the factory to learn the engraving machine operation, remedial training, engraving machine maintenance knowledge.
4. Receive technical consultation at any time and provide technical diagnosis for customers.
5, ultra-low price for customers to replace and provide all kinds of engraving machine accessories.
