CNC Laser Steel Cutting Machine Aluminum Metal 100m/Min

Price Negotiable
Price: 20000-40000
MOQ: 1set
Delivery Time: 20-30
Brand: honest
Product Description

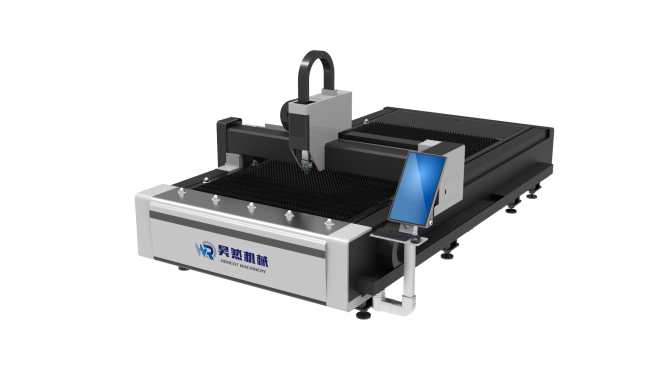

 Manufacture Exhibition Products CNC Aluminum Sheet Metal Price Fiber Laser Cutting Machine

The cutting speed is three times of oxygen cutting, and the production and processing efficiency is high; compared with high-pressure cutting, low-pressure cutting does not need high pressure and high energy consumption air compressor, the comprehensive energy consumption is reduced by 50%, and the use cost is lower.

Model HN-1530
Working area 1500mm*3000mm
Laser type Fiber laser
Rated laser power (optional) 1000W
Traditional system Gantry double drive structure
lubrication system Fully automatic
Maximum speed 100m/min
Maximum acceleration 1.0G
positioning accuracy ±0.01mm/1000mm
Repeated positioning accuracy ±0.03mm/1000mm
Support for graphic formats CAD, DXF(etc)
work environment 0-40 ℃, humidity ≤ 80%, no condensation
Total power 20KW
Power demand Three phase 380V / 50Hz / 60Hz
Outline size 4450mm x 2450mm x 1800mm
Total weight approximately 4000KG





product details

The complete set of reducer, gear and rack, the core transmission parts of the machine tool, are imported from Germany. The selection of high-end brands can ensure that the long-term high-speed cutting accuracy of the equipment remains unchanged.

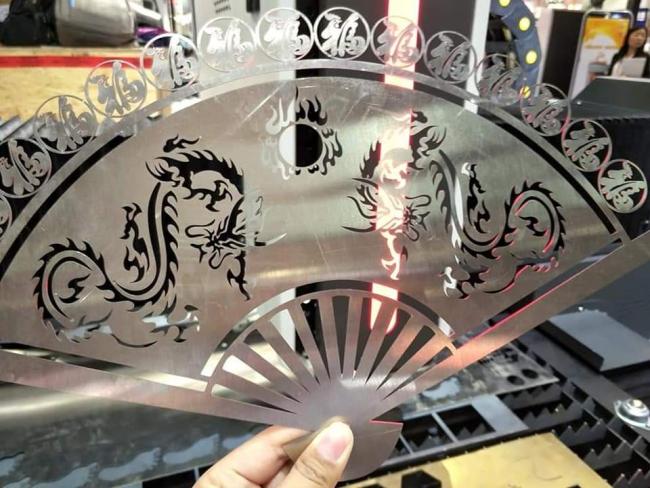

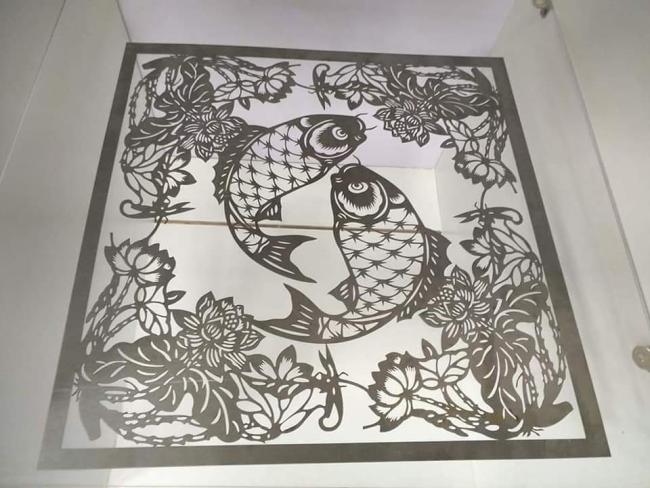

Applications & samples

Fiber laser cutting machines are widely used in aviation, metallurgy, automobiles, ships, equipment and other national key industrial fields and manufacturing industries such as mechanical equipment, electrical equipment, elevators, advertising, home appliances, medical equipment, hardware, decoration, and metal processing services.

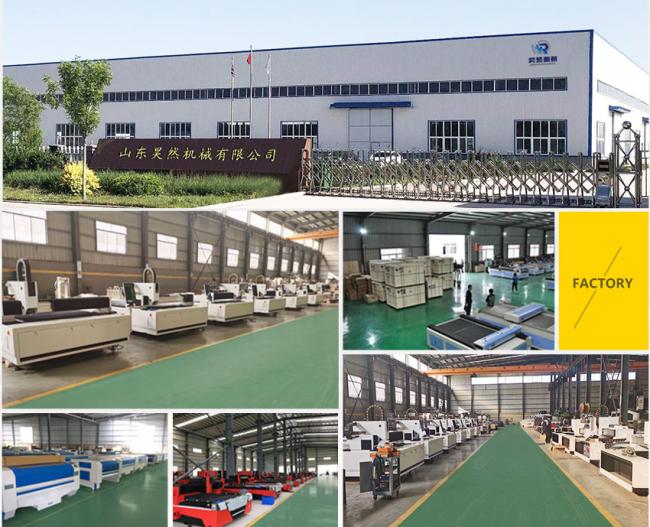

Factory introduction
Shandong Honest Machinery co., LTD., is a provincial key enterprise specializing in the research and development of numerical control equipment. It integrates development, production and sales.
The company has a series of CNC engraving machines, laser machines and other products, which are widely used in machinery, mold, advertising, wood processing, stone processing and other industries.Equipment sales throughout the provinces, autonomous regions, and exported to Russia, Mongolia, South Korea and other countries.Advanced manufacturing technology, large-scale production, high-quality product quality, professional user training, timely after-sales service, is the basis to ensure customer satisfaction.
Honest products have been widely used in the advertising industry, woodworking industry, craft gifts, architectural models, electronics, CAD/CAM industrial mold industry, decoration, clothing, packaging printing, logo, seal and other industries;And because of its distinctive cost performance in each domestic application field has completely replaced the import of similar products.




FAQ
1. Free consultation service before, during, and after sales;
2. Free project planning and design services;
3. Free debugging of equipment until everything is functional;
4. Free long distance shipping management from seller's factory to named place by buyer;
5. Free maintenance and operating training personally;
6. Free new production techniques and formulas;
7. Provide 1 year complete warranty and life-time maintenance service;
8.We will provide the consumable parts at an agency price.
9.24 hours online service, free technical support.
10.Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions,please kindly tell me.
