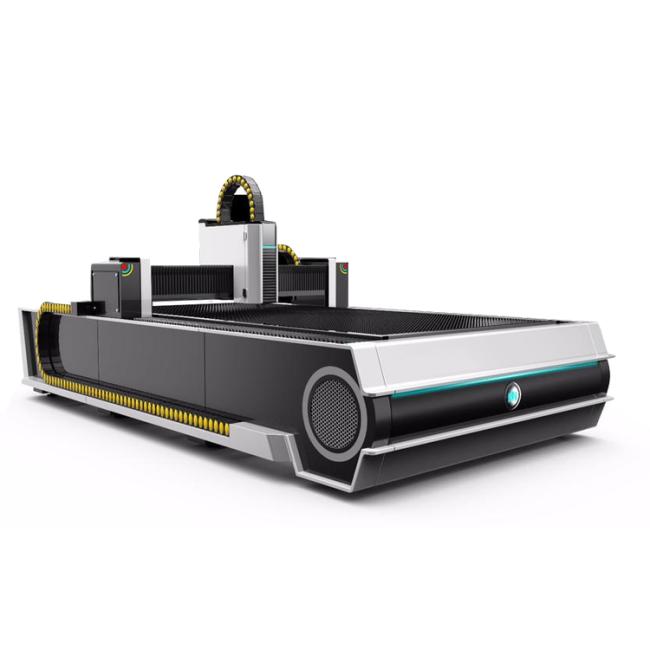

1000W CNC Aluminum Sheet Fiber Laser Cutting Machine HN-1530
Manufacture Exhibition Products CNC Aluminum Sheet Metal Price Fiber Laser Cutting Machine
Casting bed, integrated molding, after aging treatment, its internal stress can be ignored, so the stability is very high, can make the accuracy of the machine tool to maintain for a long time.
| Model | HN-1530 |
| Working area | 1500mm*3000mm |
| Laser type | Fiber laser |
| Rated laser power (optional) | 1000W |
| Traditional system | Gantry double drive structure |
| lubrication system | Fully automatic |
| Maximum speed | 100m/min |
| Maximum acceleration | 1.0G |
| positioning accuracy | ±0.01mm/1000mm |
| Repeated positioning accuracy | ±0.03mm/1000mm |
| Support for graphic formats | CAD, DXF(etc) |
| work environment | 0-40 ℃, humidity ≤ 80%, no condensation |
| Total power | 20KW |
| Power demand | Three phase 380V / 50Hz / 60Hz |
| Outline size | 4450mm x 2450mm x 1800mm |
| Total weight approximately | 4000KG |
Product details

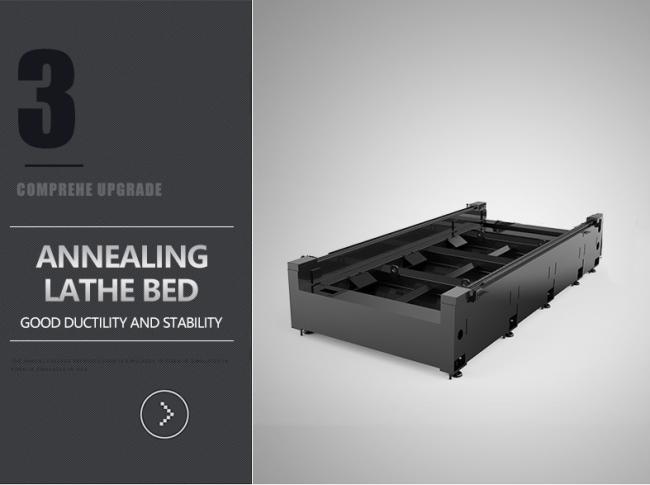

The casting bed is made of gray cast iron with high carbon content and is not easy to be deformed by heat

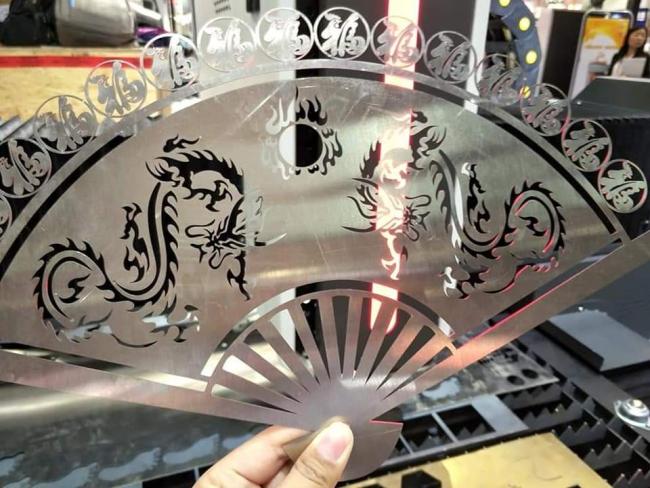

Applications & samples
Material
It can cut many kinds of metal plates and pipes. It is mainly suitable for the fast cutting of stainless steel, carbon steel, manganese steel, galvanized plate, various alloy plates, rare metals and other materials.
Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 3-20 working days after payment.
Customer visiting
We welcome customers to visit the factory, we will let you buy, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you.
Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
FAQ
1: I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect solutions and suggestions.
2: When I got this machine, but I don’t know how to use it. What should I do?
We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.
3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. While we alsosupply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
4: Before sending me an inquiry on our fiber laser, it is better for you to provide me the following information
1)Your metal or non-metal material size. Because in our factory, we have different models according to working area.
2)Your materials.
Metal/Acrylic/plywood/MDF?
3)You want to engrave or cut?
If cut, could you tell me your cutting thickness? Because different cutting thickness need different laser laser power.
