Raycus Integrated Plate And Tube Fiber Laser Cutting Machine Aluminium Industrial

3015 Aluminium Industrial Raycus Integrated Plate And Tube Fiber Laser Cutting Machine

►Machine overview

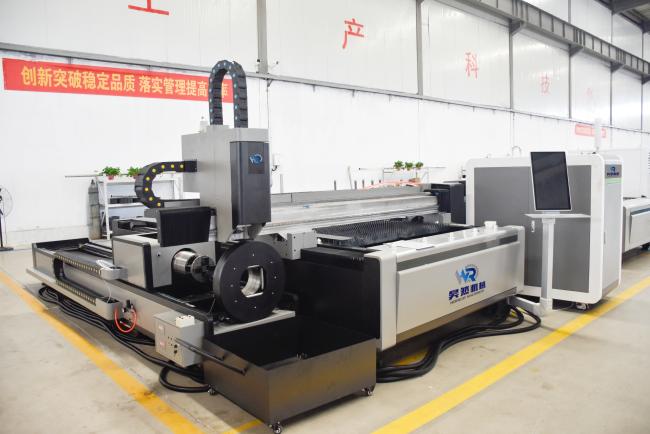

The tube-sheet dual-purpose fiber laser cutting machine 3015 adopts a tube-sheet dual-purpose laser cutting machine that integrates square tube, round tube, oblate tube, and plane cutting into one. It is multi-functional, practical, and saddle-shaped tube with precision scales. The support frame can ensure that the 6-meter-long tube is not deformed. It is a dual-purpose fiber laser cutting machine for plate and tube recommended by the manufacturer.

►Machine Data

►Application

① It has strong cutting ability, low operating cost, excellent stability, high-quality processing and strong adaptability, and can process large plates to meet the market's demand for large-format fiber laser cutting production. Its workbench has been It is more capable, and at the same time meets the needs of cutting boards and pipes, with various cutting styles.

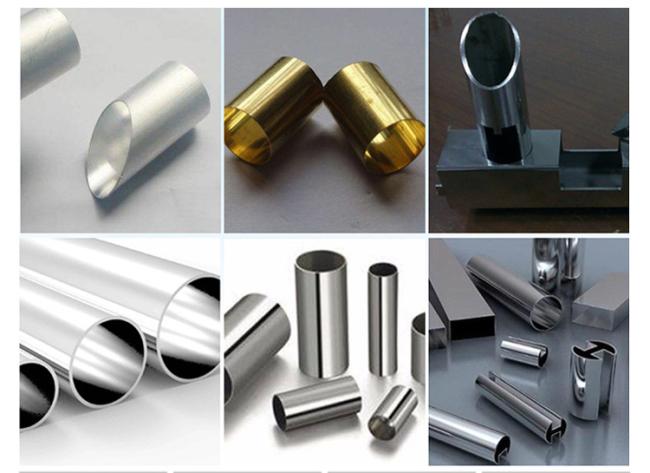

②Material application: stainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate, gold, silver and other metal sheet cutting.

③Processing method: pipe and sheet cutting.

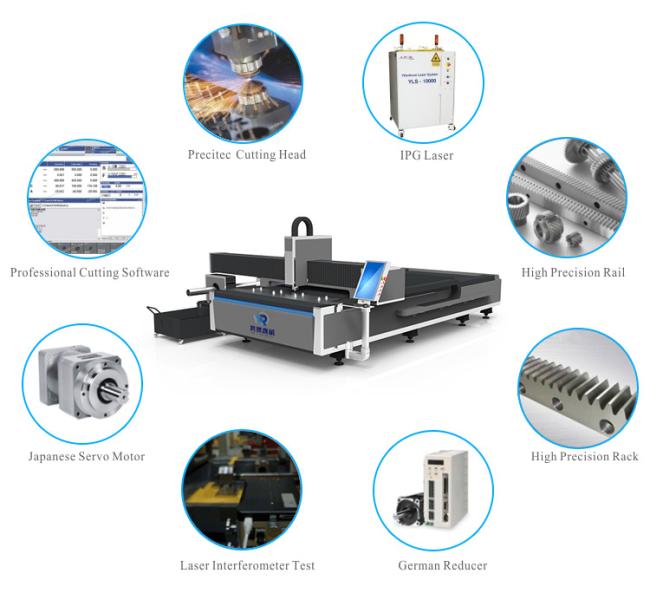

►Product Detail

1.High-performance fiber laser: wavelength range 1070-1090nm, beam quality TEM00 (M2<1.4), more than 100,000 hours of pump diode life, maintenance-free operation, single-mode fiber transmission, better spot mode and cutting efficiency, professional Applied to metal cutting.

2.High dynamic automatic focusing system: adopts the speed and position double closed loop algorithm to control the laser cutting capacitor follower, which has high dynamic response accuracy, supports leapfrog lifting, and realizes high-speed following.

3.Precise and efficient motion components: Original imported rack and pinion transmission system is equipped with grinding-grade rack and pinion. Compared with screw transmission, it overcomes the vibration defect of high-speed and long-distance operation and realizes high-speed and high-precision transmission.

4.Japan Yaskawa Servo Motor: Choose the best quality Japan Yaskawa high-inertia servo system, which has the highest amplifier response in the industry, greatly shortens the setting time, can achieve high-speed acceleration and deceleration, and helps improve the stability of the machine.

5.Newly upgraded intelligent cooling device: intelligent dual-temperature dual-control chilled water system, with over-temperature alarm flow protection, water level protection and other safety alarm prompts. Even under the climatic conditions of high temperature difference and high temperature humidity environment, the normal operation of the equipment can be ensured.
