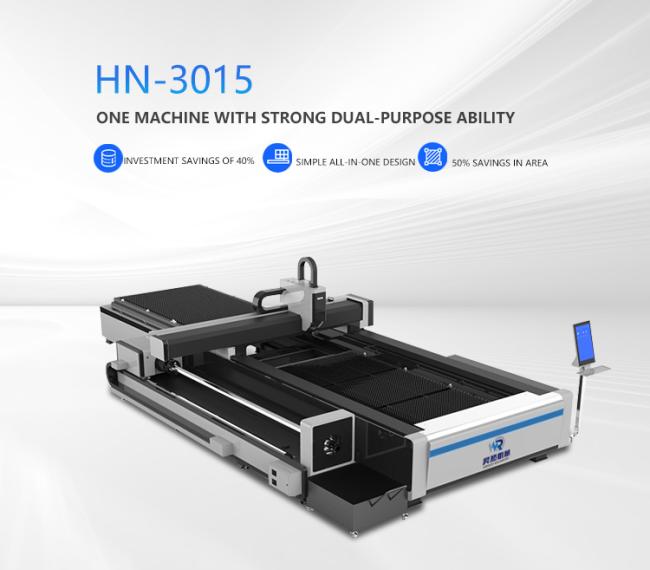

3000 X 1500 1500W Fiber Laser Cutter For Metal Aluminum Pipe And Tube
3000 X 1500 1500W Stainless Carton Aluminum Pipe And Tube Fiber Laser Cutting Machine
►Machine overview
1 cutting quality is good, because the laser spot is small, high energy density, cutting speed, so laser cutting can get better cutting quality.
2. The incision is narrow, the two sides of the slit are parallel and the verticality of the surface is good, and the dimensional accuracy of the cutting parts is high. Cutting surface smooth and beautiful, even as the last processing process, without mechanical processing, parts can be directly used.
3. After laser cutting, the width of the heat affected zone is very small, the performance of the material near the slit is almost not affected, and the workpiece deformation is small, and the cutting precision is high.
4. Cutting speed, high efficiency.
5. Contact cutting, laser cutting nozzle and workpiece no contact, almost no tool wear.
►Machine Data
| NAME | LASER CUTTING MACHINE |
| MODEL | HN-1530-1000W |
| Maximum running speed | 70m/min |
| Laser wavelength | 1080 nm |
| Minimum cutting line width | 0.1mm |
| Rated output power | 50--1000W |
| X, Y axis positioning accuracy | ≤±0.015㎜ |
| Repeated positioning accuracy of worktable | ≤±0.015㎜ |
| Maximum load of worktable | 500KG |
| Effective processing area | 1500*3000mm, |
| Z axis travel | 120mm |
| Area | 4800*2300*1800 MM |
| Machine power | 12KW |
| Chiller | 2kw |
| Power supply | 380v±10% |
| Red light positioning | provide |

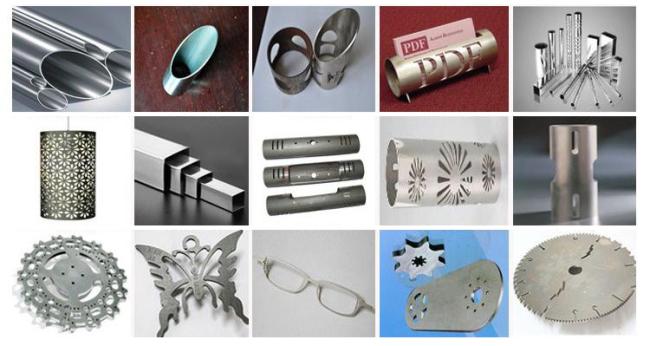

►Application
Applicable material range:
It can meet the cutting needs of carbon steel, stainless steel and other metal plates. It is an ideal choice for the processing of medium and thin plates.
Industry application:
Laser cutting machine is widely used in automobile manufacturing, kitchenware industry, sheet metal processing, advertising industry, machinery manufacturing, chassis cabinet, elevator manufacturing, fitness equipment and other industries with its wide cutting range, high cutting speed, narrow cutting seam, good cutting quality, small heat affected area, flexible processing and other advantages. But the general laser cutting machine is mainly divided into two kinds of metal cutting and non-metal cutting, there are also mixed cutting, metal and non-metal can be, but not recommended. Different laser cutting machine production enterprises produce different types of laser cutting machine, focus is also different

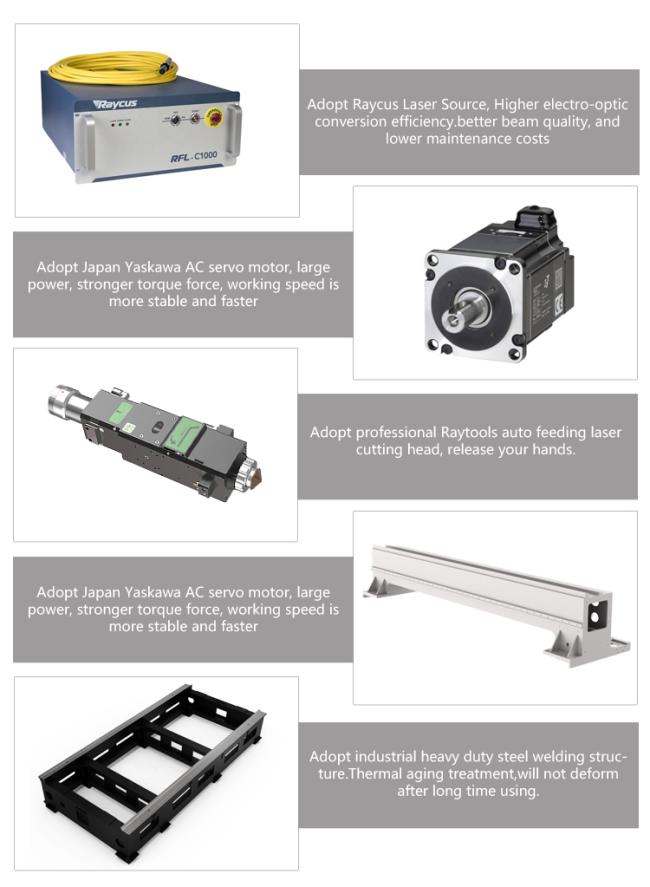

►Product Advantage
1) Excellent beam quality: smaller focused spot, finer cutting lines, higher work efficiency and better processing quality;
2) Extremely high cutting speed: 2 times of the same power CO2 laser cutting machine;
3) Extremely high stability: The world's top fiber laser is used, with stable performance, and the service life of key components can reach 100,000 hours;
4) Extremely high electro-optical conversion efficiency: fiber laser cutting machine has 3 times higher electro-optical conversion efficiency than CO2 laser cutting machine, which is energy-saving and environmentally friendly;
5) Very low cost of use: the power consumption of the whole machine is only 20-30% of that of similar CO2 laser cutting machines;
6) Very low maintenance cost: no laser working gas; optical fiber transmission, no need for reflective lenses; it can save a lot of maintenance costs;
7) Convenient product operation and maintenance: optical fiber transmission, no need to adjust the optical path;
8) Super flexible light guide effect: small size, compact structure, optical fiber transmission, easy to flexible processing requirements.
