CNC Round Tube Fiber Laser Cutting Machine 1000W
Cutting Round Tubes Tube Fiber Laser Cutting Machine
The advantages of fiber laser cutting machine:
* Germany originally imported Alpha rack&pinion, compared to made in China or Taiwan, has higher precision ensuring best dynamic performance.Cabinet is well protected: Dust-proof, water-proof; Taiwan imported computer is special for industrial usage with long time working.
* 600℃ heat treatment, 24 hours cooling in the oven, 8 meters gantry milling, accurate CO2 precision welding, make sure 20 years usage without deformation.
* Waste collection device could be moved both sides which have no special request for machine location.
* Air cylinder helps to feed sheet metal easily and prevent scratching.
Machine Data:
| Model | 3015 Fiber laser cutting machine |
| Working Area | 3000*1500mm |
| Laser Power | 1000W |
| Laser Generator | Raycus |
| Laser Wave Length | 1064nm |
| Working Table | Sawtooth |
| Maximum Idle Running Speed | 120m/min |
| Maximum acceleration | 1.5G |
| Position Accuracy | ±0.02mm/m |
| Repeat Positional Accuracy | ± 0.01mm |
| Position Type | red dot |
| Power Consumption | ≤40KW |
| Working Voltage | 220V/380V ±10 % 50/60Hz |
| Auxiliary Gas | oxygen,nitrogen,air |
| Working life of fiber module | More than 100000 hours |
| Cooling System | S&A industrial water chiller |
| Work Environment | 0-45°C, Moisture 45-85% |
| Delivery time | 30-35 working days (According to actual season) |
Machine Detail:
①. Fiber laser has high electro-optical conversion efficiency, with conversion efficiency of more than 30%, which can greatly save power consumption, operation cost and high production efficiency; Compared with other types of cutting equipment, the cutting effect is more precise and more stable (such as plasma cutting)
②. When the laser operates, it only needs electric energy, does not need to generate additional gas of the laser, and has low operation and maintenance costs;
③. The output wavelength of fiber laser is 1.064 μ m, which is 1 / 10 of CO2 wavelength. The output beam quality is good and the power density is high, which is very conducive to the absorption of metal materials and has excellent cutting ability, so that the processing cost is low;
④. The optical route of the whole machine is optical fiber transmission, the structure is stable, and the external optical path is maintenance free;
⑤. The bridge gantry rack double drive structure is adopted, and the maximum free travel is 80m / min. 0.8g acceleration;
Machine Application:
Industry application: it is used in various manufacturing and processing industries such as sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway accessories, automobiles, grain machinery, textile machinery, engineering machinery, precision accessories, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, metal external processing, kitchenware processing, etc.

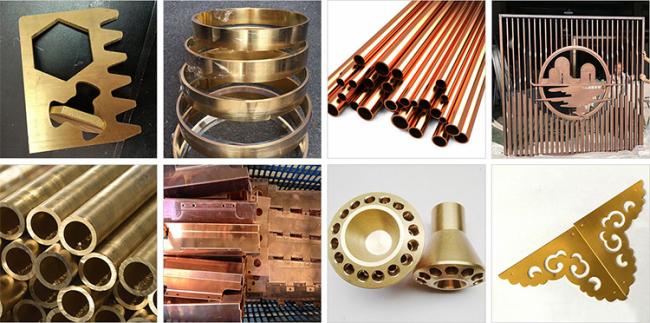

Processing materials: stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet, aluminum zinc plate, pickling plate, copper, silver, gold, titanium and other metal sheet cutting.
