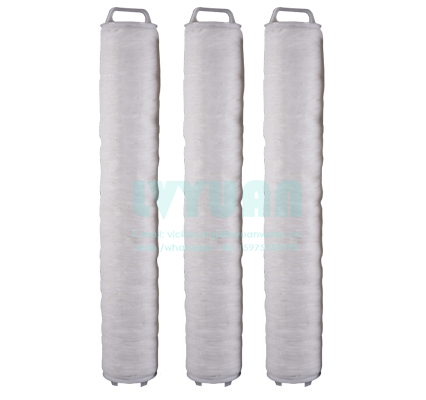

40 Inch 5 Microns Pleated PP Spun High Flow Filter Cartridges
Price:
$65.00
MOQ:
10-49 Pieces
Delivery Time:
Negotiable
Product Description
Big flow PP 10/20/30/40 inch 5 microns pleated pp spun cartridge filter for ro plant
The high flow replacement filter cartridge series designed to be used in the different filter housings which contains 1-37 filter cartridges. It can be used for different flow rate request. The large diameter with big filter area insures to reduce the number of filter cartridges and the dimension of housing required. This filter cartridges has various applications on water treatment system. Higher dirt holding capacity and longer service life with further specifications of the large industrial water plant projects.
Most of the raw materials are imported from abroad.Pleated filter element is a kind of deep filtration filter,it is usuaslly used as liquid overheating,clarification, filtration and terminal filter.
|
Product Name
|
Big flow PP 10/20/30/40 inch 5 microns pleated polypropylene folded filter for industrial RO pre water plant
|
|
|
||
|
Filtration media
|
Polypropylene membrane & Fiberglass membrane
|
|
|
||
|
Support material
|
Polypropylene
|
|
|
||
|
Core & Structural components
|
Polypropylene
|
|
|
||
|
Inner core
|
Polypropylene
|
|
|
||
|
Packing method
|
Polybag with single box
|
|
|
||
|
Filtration precision
|
1μm, 2μm, 3μm, 5μm, 10μm, 20μm, 25μm, 30μm, 50μm
|
|
|
||
|
Length
|
10", 20", 30", 40", 50", 60", Customized
|
|
|
||
|
Adaptor
|
SOE/DOE
|
|
|
||
|
Sealing method
|
Hot melting welding
|
|
|
||
|
Sealing gasket & O-ring material
|
Silicone/EPDM/VITON/PTFE/NBR
|
|
|
||
|
Filter cartridge diameter
|
165mm
|
|
|
||
|
Max. working temperature
|
Pleated polypropylene: 82℃
Pleated fiberglass: 121℃
Melt blown: 65℃
|
|
|
||
|
Applications
|
Chemical industry; Organic solvents; Various of alcohols; Chemical reagents filtration; Sterile tank breathing apparatus; Pharmaceutical industry; Food industry; Electronic industry; RO water treatment; Medical liquid filtration;
|
|
|
||
Features
All contaminants can be removed within the cartridges because of the flow direction. Up to 110m³/h flow rate per one filter cartridge for water filtration. Max. 50% reduction of filter system. Multi membrane layers for large dirt holding in the high flow filter elements. Thermally bonded construction for stronger pressure resistance. Handle design quick installation, safe and reduce the cost.
General Description
The LY-HFM filter cartridge series designed to be used in the different filter housings which contains 1-37 filter cartridges. It can be used for different flow rate request. The large diameter with big filter area insures to reduce the number of filter cartridges and the dimension of housing required. This filter cartridges has various applications on water treatment system. Higher dirt holding capacity and longer service life with further specifications of the large industrial water plant projects.
General Description
The LY-HFMH filter cartridge series designed to be used in the different filter housings which contains 1-37 filter cartridges.The LY-HFPM series high flow filter cartridge is the horizontal pleated big flow water filter cartridge.It can be used for different flow rate request. The large diameter with big filter area insures to reduce the number of filter cartridges and the dimension of housing required. This filter cartridges has various applications on water treatment system. Higher dirt holding capacity and longer service life with further specifications of the large industrial water plant projects.
General Description
The LY-HFPK filter cartridge series is a replacement cartridges for the depth filtration and 2-1/2” diameter cartridges for the high flow applications. Pre-filtration for RO system is an example.The Lvyuan filter pleated design with high flow area and contamination removal capacity. This design helps end user to reduce capital investment, save space, and easy to change-out and etc. Up to 1300LPM flow rate per filter cartridge reduced the number of filter cartridges and the dimension of the filter housing required. Water treatment volume per super-high flow filter cartridge equals to 10x40” length, 2-1/2” diameter filter cartridges. Inner O-ring insures no by pass and handle design makes the installation easier.
