oil filed treatment OD 2.5 inch 222/fin 5 microns pleated fiber material oil filter element cartridge
Price:
$9.50
MOQ:
10 - 499 Pieces
Delivery Time:
Negotiable
Brand:
LVYUAN/OEM
Product Description
oil filed treatment OD 2.5 inch 222/fin 5 microns pleated fiber material oil filter element cartridge
Product Description
Product Name | OD 2.5 inch 222/fin 10 microns pleated fiber material oil filter element cartridge for oil filed 40 inch filter treatment | ||||||
Length: | 10"/20"/30"/40"/50" | ||||||
OD: | 64mm | ||||||
ID: | 28mm | ||||||
Filter membrane media: | Glass fiber, Polypropylene PP, PET | ||||||
Seal Material: | EPDM, Silicone, NBR, Viton | ||||||
End cap material: | 222+FIN END; DOE; 222+Flat End | ||||||
Center core: | Polypropylene PP | ||||||
Outer cage: | Polypropylene PP, blue/red/white colors optional. | ||||||
Microns rating: | 1um, 2um, 3um, 5um, 10um, 20um, 25um, 30um, 50um, 75um,100um | ||||||
Operating pressure: | Withstand differential pressure up to 60psi(4bar) at ambient temperature. Differential pressure is 35psi (2.5bar) up to 52℃. | ||||||
Service condictions: | 5 bar at 20℃； 3bar at 65℃ | ||||||
Applications: | RO water treatment prefiltration; Electronic; Oil & Gas liquid; Petroleum industry. | ||||||
MOQ | 50pcs/Box, 25pcs/Box | ||||||
Detailed Images
DOE opened pleated filter
The membrane's micron rating is optional. Options to order for this site include 0.03 to 0.45 microns in 10" to 40" length with either.
OEM customized size filter
Different length & variety end cap are optional.
Different end caps pleated filter
SDouble Open End (DOE), 222 or 226 end configurations, all come standard with EPDM/PTFE/SILICONE/TEFLON seals.

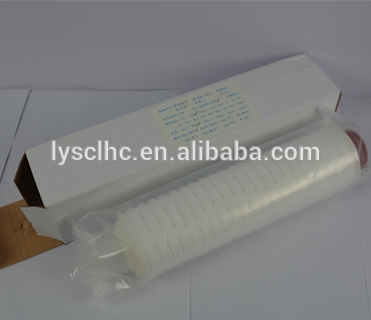

Packing & Delivery
