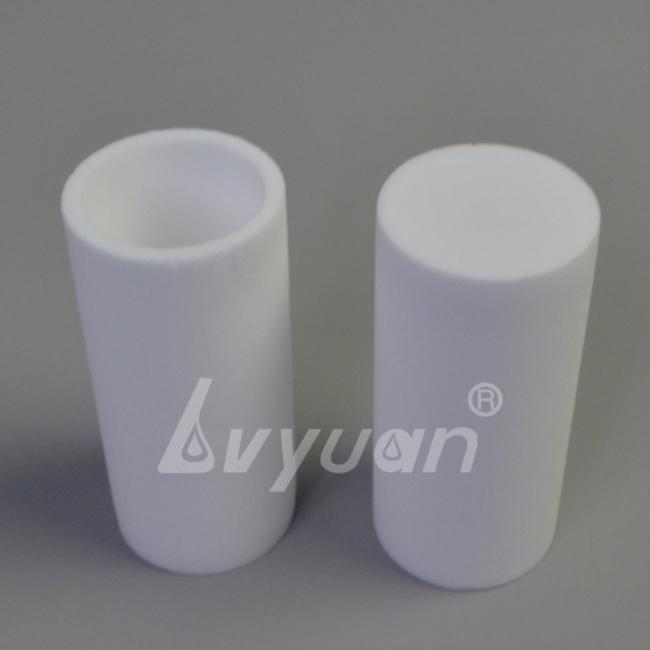

Microporous Sintered Plastic Filter
Price:
$0.50 - $2.00 / Piece
MOQ:
1 Piece
Delivery Time:
Negotiable
Brand:
Lvyuan / OEM
Product Description
Micro PE Sintered Plastic Porous Polypropylene PP Sintering Filter
Sintered Plastic Filters mainly refer to PTFE, PE, PP sintered filter elements. They’re made of pure PTFE, polyethylene, polypropylene raw materials and sintered at high temperature and high pressure. Therefore, the sintered plastic filter element has strong resistance to strong acids and alkalis, and the porous plastic filter element has high strength and toughness. Filtering size from 0.2 to 100 microns, easy to clean. The inner and outer surfaces are very smooth, and fully sintered under high temperature and high pressure, there will be no "threshing" phenomenon during use and no pollution the fluid, so it is widely used in the water, air and gas filtration industries.
Product Feature
1. High porosity to ensure a greater flow per unit area; 2. Smooth outer surface, impurities are not easy adhesion, back washing easy and thorough; 3. Anti-fouling ability: the small size of the filter so that impurities can’t be retained in the filter body; 4. Resistance to strong acid, alkali corrosion, resistance to organic solvents; 5. Excellent mechanical properties; 6. No particle release. 7. Wide Product range and wide scope of application
| Filter Media | PE, HDPE, PTFE, PVDF, PA/Nylon etc |
| Micron rate | 0.2um, 0.5um, 1um, 3um, 5um, 10um, 25um, 30um, 50um, 75um, 100um, etc |
| Reference dimension | 31x12x1000, 31x20x1000, 38x20x1000, 38x18x1000, 38x20x1200, 38x20x1300, 38x20x150, 38x20x400, 38x20x250, 38x20x200, 38x20x180, |
| (mm) | 38x20x150, 50x20x1000, 50x31x1000, 50x38x1000, 65x31x1000, 65x38x1000, 64x44x1000, 78x62x750mm, etc. |
| Connector type | DOE, SOE, Flat, insert, thread, 226, 222, 215, M36, M30, M27, M25, M22, M14, M12, or as request. |
| Max. operating temperature | PE≤82℃; PTFE≥200℃; PA≤120℃ |

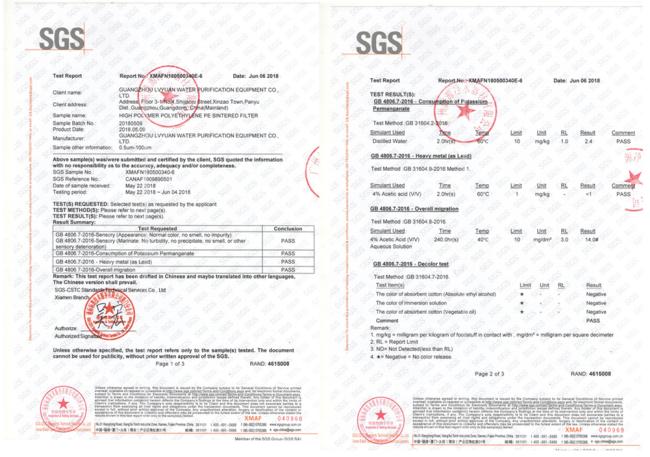

Certifications

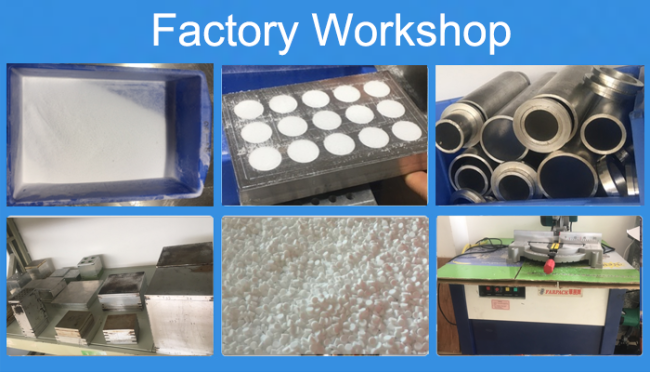

Our Company
