20" Micron Cartridge Filters Desalination Ro Seawater Membrane Elements
Price:
$18.00 - $101.00 / Piece
MOQ:
1 Piece/Pieces
Delivery Time:
Negotiable
Brand:
Lvyuan / OEM
Product Description
Sea water desalination ro membrane Seawater Membrane Elements
Seawater desalination uses reverse osmosis membrane, which is a kind of membrane without pores, also called semi-permeable membrane. It is not the principle of screening, but the principle of reverse osmosis. A membrane that is selective to the substance that passes through is called a semi-permeable membrane. Generally, the dilute solution and the concentrated solution of the same volume should be placed between each other in a container with a semi-permeable membrane in the middle. The solvent in the dilute solution will naturally pass through the semi-permeable membrane and flow to the side of the concentrated solution.
The liquid level on the solution side will be higher than the liquid level of the dilute solution by a certain height, forming a pressure difference and reaching a state of osmotic equilibrium, so that the pressure difference is the osmotic pressure. The size of the osmotic pressure depends on the type of the concentrate, and the concentration and temperature have nothing to do with the properties of the semipermeable membrane. The flow direction of the solvent is opposite to the original permeation direction. This process is called reverse osmosis.
The reverse osmosis membrane used for seawater desalination can intercept cations such as calcium, magnesium and sodium, and impurities such as chloride and sulfate in the seawater, allowing the water to pass through. It adopts cross-flow filtration, and the wider flow channel guarantees its pollution resistance performance. However, it is still necessary to periodically regenerate the membrane with a special cleaning agent.

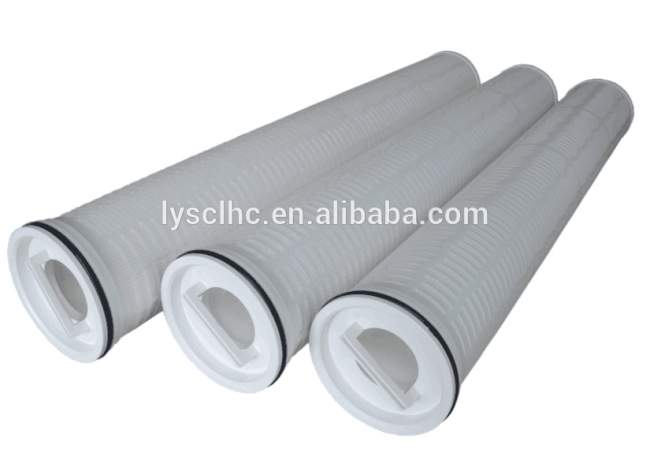

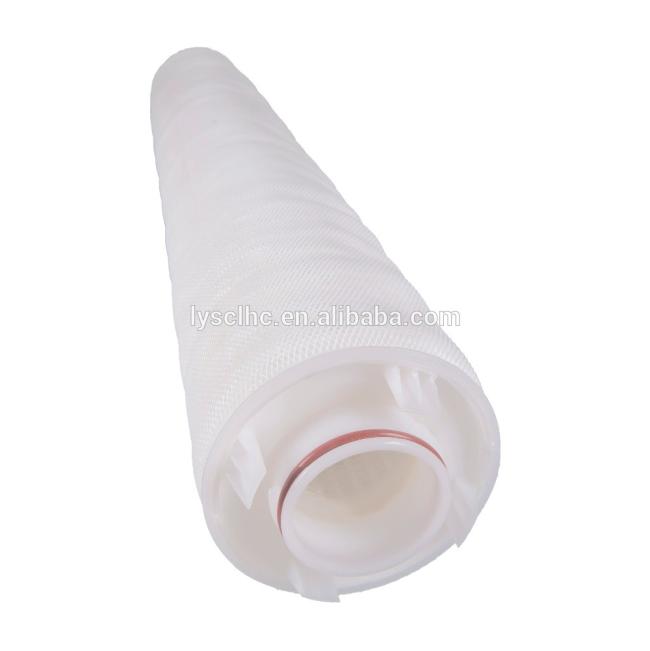

High flow 3/M replacement filter
High flow 3/M replacement filter
High flow Park/er replacement filter
High flow P/all replacement filter
Specification
|
Replacement
|
P/all
|
Park/er
|
3/M
|
|
Length
|
20", 40'', 60''
|
40''
|
20", 40'', 60''
|
|
Micron Rate
|
1μm,5μm,10μm,15μm,20μm,40μm,70μm,100μm
|
1μm,5μm,10μm,15μm,20μm,40μm,70μm,100μm
|
1μm,5μm,10μm,15μm,20μm,40μm,70μm,100μm
|
|
Filter Medium
|
Polypropylene, Cellulose, Melt Blown PP
|
Polypropylene, Cellulose, Melt Blown PP
|
Polypropylene, Cellulose, Melt Blown PP
|
|
Support
|
Polypropylene
|
Polypropylene
|
Polypropylene
|
|
End Cap
|
Glass Fiber Reinforced Polypropylene
|
Glass Fiber Reinforced Polypropylene
|
Glass Fiber Reinforced Polypropylene
|
|
Outer Diameter
|
6'', 152mm
|
6'', 152mm
|
6'', 152mm / 6.5'', 165mm
|
|
Gasket/O ring material
|
EPDM/NBR/Viton
|
EPDM/NBR/Viton
|
EPDM/NBR/Viton
|
|
Max. Operating Differential Pressure
|
PP: 3.44bar@82°C,50psi@180°F Glass Fiber: 3.44bar@121°C, 50psi@180°F
|
PP:3.44bar@82°C,50psi@180°F Glass Fiber: 3.44bar@121°C, 50psi@180°F
|
PP:3.44bar@82°C,50psi@180°F Glass Fiber: 3.44bar@121°C, 50psi@180°F
|
|
Suggestion Flow
|
20" 660LPM
40" 1300LPM
60" 1900LPM
|
40" 1300LPM
|
20" 660LPM
40" 1300LPM 60" 1900LPM |
Our Company
Guangzhou Lvyuan Water Purification Equipment Co.,Ltd is located in Panyu District, Guangzhou city. We're a comprehensive enterprise. Our competitive production lines including:
1. All kinds of filter Cartridges
2. Cartridge filter housings and bag filter housings
3. RO, UF, MBR water purifier and equipment
4. Many kinds of Water treatment equipments
5. Many kinds of Water purifiers and equipments, water softners, and more.
We devote to filtration development for more than 10 years. We can supply advanced technical support and solution for all of our customers.
