PP PE BAG 20 Microns 235psi Multi Cartridge Filter Housing
Pleated PP membrane 20 microns stainless steel 304 316L ss multi round filter housing

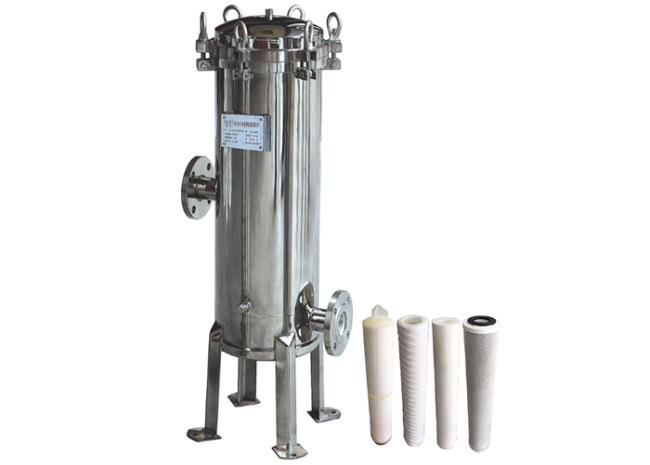

Stainless steel multi round cartridge filter housing, also known as Precision filters or security filters, are generally installed before the pressure vessel to remove fine particles with a turbidity of more than 1 micron to meet the requirements of subsequent processes for water inflow; sometimes they are also installed at the end of the entire water treatment system to prevent fineness Particles (such as broken resin) enter the product water.
|
Product name
|
multi round filter housing
|
|
|
||
|
Raw material
|
SUS304, SUS316L
|
|
|
||
|
Inlet & Outlet
|
Flange/Thread
|
|
|
||
|
Seal material
|
EPDM/Silicone/Viton/PTFE
|
|
|
||
|
Surface treatment
|
Polished/Sandblast
|
|
|
||
|
Working temperature
|
50℉ to 250℉
|
|
|
||
|
Max. working temperature
|
100psi to 235psi
|
|
|
||
|
FEATURE
|
|
|
|
1
|
Inlet & outlet size is 1/2", 3/4", 1 inch, easy installation.
|
|
|
2
|
Working pressure 8kg/0.8Mpa is supported.
|
|
|
3
|
Use the tap water pressure to provide power, no power consumption.
|
|
|
4
|
This is suitable for using in the water master switch, for the pre filtration system and RO system protection.
|
|
|
5
|
Resistance to strong acid and alkali.
|
|
|
6
|
Low cost, it fits different kind of filter elements.
|
|
| No. | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | In/Out | Drain |
|---|---|---|---|---|---|---|---|---|
| W5L3 | 250 | 600 | 1250 | φ200 | φ120 | 340 | 1 1/2'' -2'' | 1/2'' |
| W5L4 | 250 | 700 | 1500 | φ200 | φ120 | 340 | 1 1/2'' -2'' | 1/2'' |
| W7L3 | 300 | 700 | 1300 | φ250 | φ150 | 390 | 1 1/2'' -2'' | 1/2'' |
| W7L4 | 300 | 800 | 1550 | φ250 | φ150 | 390 | 1 1/2'' -2'' | 1/2'' |
| W11L3 | 360 | 700 | 1380 | φ300 | φ200 | 440 | 2" -3'' | 1/2'' |
| W11L4 | 360 | 900 | 1620 | φ300 | φ200 | 440 | 2" -3'' | 1/2'' |
| W15L3 | 380 | 800 | 1420 | φ350 | φ200 | 530 | 2" -3'' | 3/4" |
| W15L4 | 380 | 900 | 1660 | φ350 | φ200 | 530 | 2" -3'' | 3/4" |
| W20L3 | 400 | 800 | 1460 | φ400 | φ200 | 560 | 2" -4'' | 3/4" |
| W20L4 | 400 | 900 | 1700 | φ400 | φ200 | 560 | 2" -4'' | 3/4" |
| W27L3 | 460 | 800 | 1530 | φ450 | φ250 | 630 | 2" -4'' | 3/4" |
| W27L4 | 460 | 1000 | 1770 | φ450 | φ250 | 630 | 2" -4'' | 3/4" |
1.It can be widely used in UF, RO, EDI security filtration and end- filtration, medicine injection, large infusion, eye drops,.
2. Chinese herbal medicine, such as liquid filtration, biological agents extraction, purification and concentration.
3. Electronics, semiconductor industry with high purity water preliminary filter, terminal filter.
4. Oil field back to water injection, boiler makeup water, chemical reagent, liquid organic products, high purity chemicals, strong medicine and other filtration.
5. Drinking pure water, mineral water, fruit juice, tea beverages, health drinks filtering.
6. Liquor, wine, beer, yellow wine and other fruit wine filtration, pure draft beer aseptic filtration (alternative pasteurized)
7. The life and production waste water treatment and water recycling process of pre-treatment filtering or security filtering.
8. Biological engineering, oil refining, printing and dyeing, textile industry water supply and waste water treatment, research and test filter, etc.
