Trolley Water Pump Set 2.0Mpa SS316 Liquid Filtration Machine
Product Features

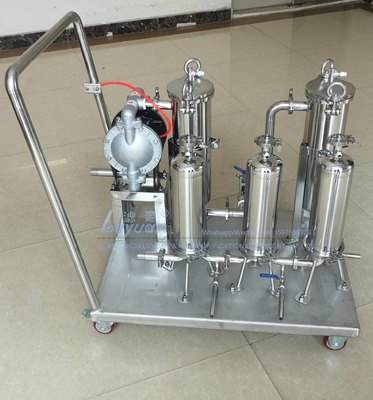

PTD Series Is A Complete Set Of Filtration Systems Designed For Industrial Liquid Filtration, Assembled With Pressure Sources, Storage Tanks, Filters, Pipes, Pressure Gauges, Discharge Valves And A Cart. Customers Only Need To Connect The Inlet Port For Filtering Operation.
Consists Of Multi-Stage Filtration, Through Three-Stage, Four-Stage Filtration, To Make The Fineness Of The Raw Liquid With Competitive Cost.
To Meet Different Fineness Requirements Of Different Raw Materials, Various Filter Types Are Available. All Of Purefilter’s Standard Filter Series Can Be Applied to Different Liquid Conditions. We Have Different Sources Of Pressure: Stainless Steel Screw Pump, Gear Pump Or Diaphragm Pump.
In Addition To Single Core Filter Fast Loading, Others Adopt Flange Joint, And The Design Pressure Can Reach 10bar.
Product Performance
Polished By Internal And External The Polishing Grade Of The Contact Part With The Material Liquid Reaches 0.6 Micron. Easy To Clean
The Accessories Used In The System Are Top Brands To Ensure The Stability Of The Whole System.
Reasonable Design, As Far As Possible To Minimize The Waste
| Raw material | SUS304, SUS316L | ||
| Filter stage | 1/2/3/4/5/6/7/8 stage, or customized. | ||
| Filter elements type | Filter cartridges, Filter bags. | ||
| Inlet & Outlet | Flange/Thread/Customized | ||
| Filtration microns | 1 microns to 100 microns available. | ||
| Liquid flow type | Side Entry; Top Entry. | ||
| Seal material | EPDM/Silicone/Viton/PTFE | ||
| Surface treatment | Polished/Sandblast | ||
| Working temperature | 0.5℉ to 380℉ | ||
| Min./Max. | 100psi to 235psi | ||
| working pressure | |||
| Housing design pressure | 0.1-2.0Mpa | ||
| Pump | Air/liquid pump, booster pump, wheel pump, air pump, pneumatic pump, etc. | ||
| Production time | 7 ~ 15 working days | ||
| Movable cart type |
The configurations only for reference, it is depended on different customers' requirement.
|
||
Our Service
1.100% factory tested before shipment
2 Services of 24h after sale
3 One year equipment warranty
4.Professional after sales service
5.Factory-sale
FAQ
Q: Are you trading company or manufacturer?
A:We are the Top professional manufacturer in China, more than 10 years experience in the water treatment.
Q: What's your delivery time?
A:Normally,it need about 10-30 days.The exact time depends on your quantity.
Q:What's the information we need to know?
A1: what's your raw water ?
B1: what's the capacity per hour of the equipment ?
C1: What's the application of purifier water ?
