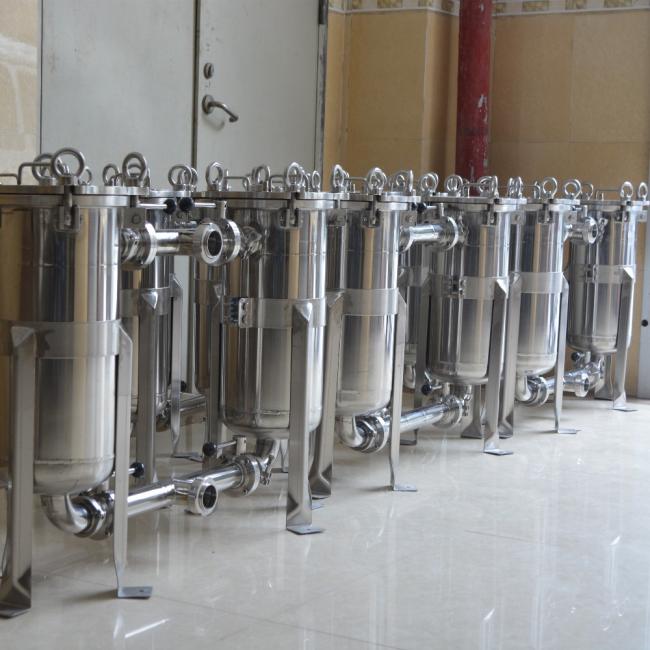

SGS 1.0Mpa 0.3um SS304 SS316 Duplex Bag Filter Housings
| Polishing type | Mirror reflection |
|---|---|
| Polishing accuracy | Inner wall0.3um/Outer wall0.4um |
| Maximum working pressure difference | 1.0Mpa(10bar) |
| Working temperature | 130℃(266℉) |
| Sterilization | 121℃/30min |
| Filter housing | 304/316L |
| Vent | 304/316L |
| Exhaust valve clamp | 304 |
| Eye bolt | 304 |
| Sealing ring | Silicon/fluorine |
| Feet | 304 |
FEATURES
1. The bag filter has large flow rate capacity, small volume and dirt holding capacity.
2. It is convenient and quick to replace the filter bag, and the filter is no-clean, saving labor and time.
3. The side leakage rate of the filter bag is small, which greatly improves the filtration quality.
4. The bag filter can withstand greater working pressure, low pressure loss, low operating cost and obvious energy saving effect.
5. Filter bag filtration accuracy has been continuously improved and has reached 0.5um.
6. The bag filter has a wide range of applications, flexible use and various installation methods.
|
material
|
SS304
|
|
bag material
|
PP/PE/SS
|
|
surface treatment
|
Polishing or matte treatment
|
|
Top Cap installed
|
Flange type
|
|
inlet/outlet connection
|
Flange type
|
|
seal O-ring material
|
silicon,NBR, EPDM, Viton
|
|
usage
|
liquid filtration
|
|
accept
|
OEM
|
|
max.working pressure
|
150 psi
|
The operation steps are as follows:
1. Close the input valve.
2. Open the intake valve.
3. The gas is introduced into the bag filter to exhaust the remaining liquid under pressure.
4. Check the outlet pressure gauge to confirm that the gauge pressure is equal to the compressed air pressure; confirm that no liquid flows out of the outlet.
5. Close the intake valve.
6. Open the exhaust valve slowly; the outlet of the exhaust valve has residual liquid sprayed out, which must be led to a safe place or the suction port of the filter.
7. After the compressed air is exhausted, close the exhaust valve. There should be no pressure inside the filter and the cover can be opened.
