Clamp Triclover SUS304 200mm Cartridge Filter Housings

Price Negotiable
Price: $181.00
MOQ: 1-9 Pieces
Delivery Time: Negotiable
Brand: Lvyuan,OEM,ODM
Product Description

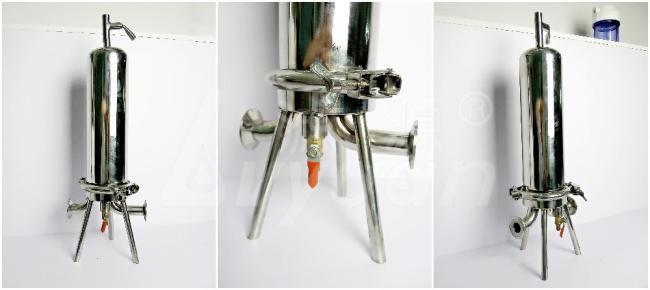

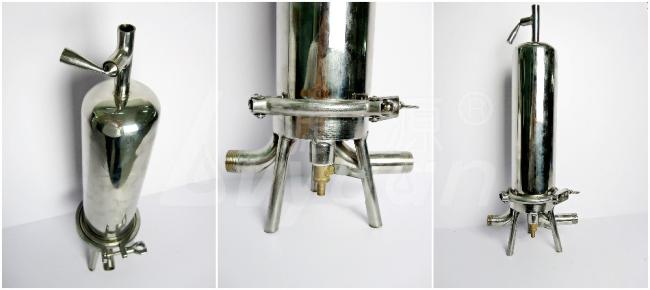

10 inch ss 304 316 filter stainless steel sanitary filter housing

The filter shell can be used together with various types of cartridges. The inside and outside surfaces are polished finish with reasonable structure and no dead angle. It is convenient to install and clean, can achieve to the filtration effects required by the customers. Its design conforms to GMP standards in medical industry. The filter includes liquid filter and gas filter.

Specifications and technical parameters
Shell material -304 or 316L stainless steel
Shell type -- liquid, gas
Length (matched cartridge) -5", 10", 20", 30", 40"

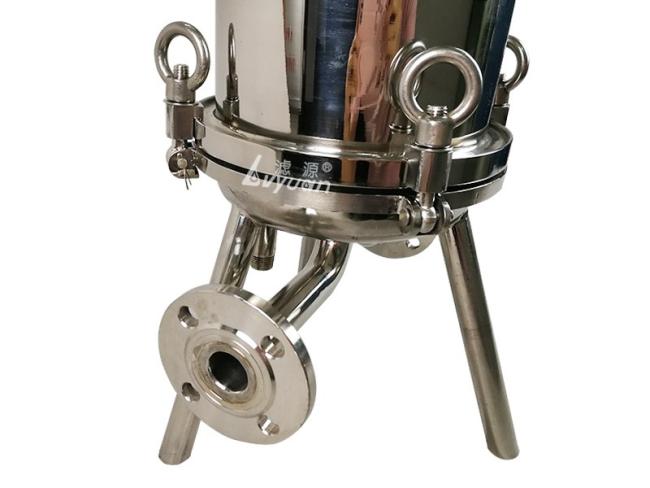

Connection methods (inlet and outlet): quick opening, screw thread, flange
Connection methods (shell and end plate): quick opening, flange
Sealing O-ring: Silastic, NBR, EPDM, Viton
Interface: various specifications
Other: special specification of filter shell can be customiz


Sanitary stainless steel filter housing's main technical parameters:

Material
SS304 or SS316
Cartridge length
5,10, 20 ,30 ,40 inch
Cartridge core
1 to 22 core
Surface treatment
Polishing or matte treatment
Closure
Clamp

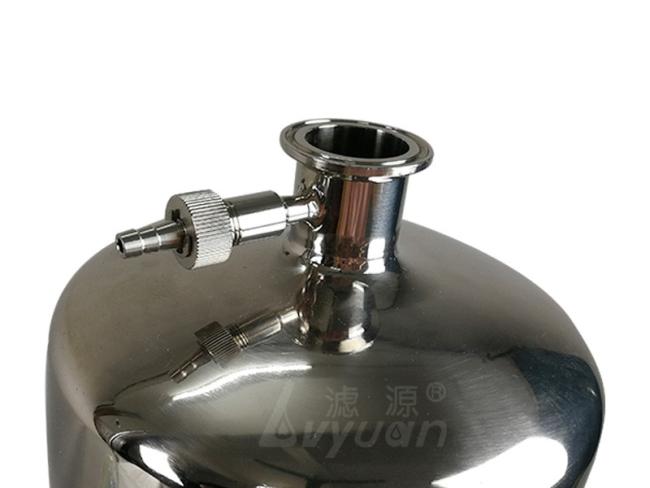

Inlet/outlet
Triclover is standard, others are optional
Seal O-ring
Silicone (food grade)
Drain/vent
1/4 inch
Working pressure
0.1-0.6Mpa
Working temperature
5-150 degrees, depending on the material of pleated filter cartridge
Thickness
1.8mm or 2.0mm
Body diameter
102mm or 200mm
Flow rate
0.05-20 T/H



Product Description


General Decription



It consists of a stainless steel housing and filter elements. The filter housing is made of high-quality stainless steel. It is quick-opening, and clamp type replacement filter doesn't require tools. It is convenient and quick.

The filter element adopts different materials such as pleated filter cartridge as the replacement cartridges to remove tiny suspended, bacteria and other impurities in the water, the filter medium enters the housing body from the outside, is filtered through the filter element, and the liquid is discharged from the bottom, and the filter residue is blown back or compressed by compressed air. The liquid is mixed and flown back.





  It can filter out liquids and gases above 0.1um particles and bacteria, it has high filtration precision, fast transition speed, less adsorption, no the advantages of medium separation, acid and alkali corrosion resistance, and convenient operation.



Accept: customized length/material/core/filter cartridge/package



Any request are warmly welcomed O(∩_∩)O~~~pl feel free to contact me






Different stainless steel multi-cartridges filter housing is customized, as long as you offer us picture and drawing.
