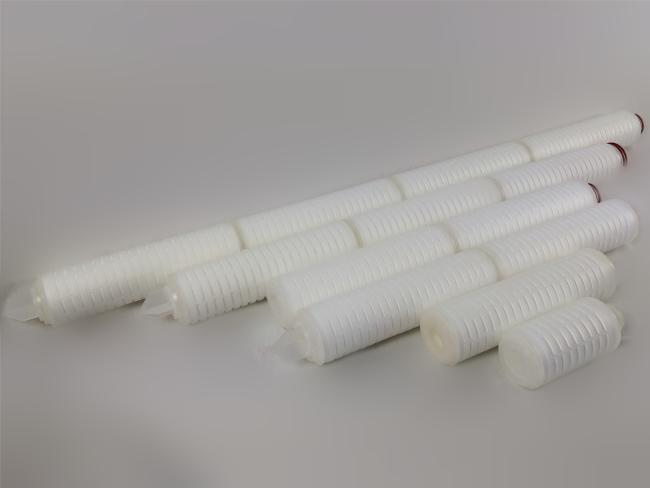

222 Fin Pleated Filter Cartridge
High flow cartridge filters with 6” diameter and length up to 60” adopt microfiber PP or Fiberglass as filtration media with high flow capacity. Standard coreless, single open, and inside-out flow direction structure ensure the filter retain contaminant even during change-out. With the same flow capacity, high flow filters take less footprint than traditional sediment filters and pleated filters, also it is easy and cost effective for saving time and labor during change-out.
Lvyuan pp pleated filter cartridge specification:
|
Filter media /support/core /end cap material
|
PP(polypropylene)
|
|
Seal material
|
Silicone, EPDM, NBR, VITON, TEFLON, etc
|
|
Code
|
DOE, 215 flat, 22flat, 222fin, 226flat, 226fin,or customized
|
|
Pore size
|
0.1, 0.2, 0.45, 0.65, 0.8, 1, 2, 3, 5, 10, 20, 25, 30, 50, 60 um
|
|
Outer diameter
|
69mm, or customized
|
|
Length
|
9.15'', 10'', 20'', 30'', 40'', or customized
|
|
Effective filtration area
|
0.4-0.7㎡
|
|
Max. operating temperature
|
88℃, 0.28Mpa /60℃, 0.42Mpa
|
Features
- Large Diameter pleated type for high flow rate
- Multi-layer structure for high flow efficiency & safety.
- Max 500GPM in a single 60” cartridge
- Applications
- Pre-RO
- Desalination
- Chemicals
- Beverage and Food
- Cooling water
Accept customized code and length, as you can provide the specification, we will arrange to produce.
1. 5 kinds of filter media
Accept end cap with internal stainless steel reinforcing ring.

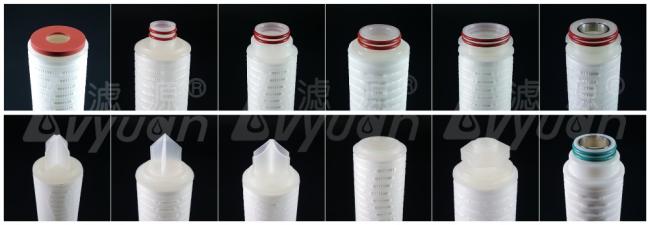

2. customized multi-adapter
Accept customized code, as you can provide the picture.
3. customized specification
Accept customized length,as you can provide the specification.
We built a long-term relationship with our customers and earn a good reputation from our customers. Providing the best service as we can.
1. Accept customized length, Package, logo etc, as you offer your drawing and picture.
2. Accept Sample purchases order, accept MOQ=10.
3. We will reply within 24 hours.
4. Received the payment, we will contact you at the first time and arrange the production and let you know the latest process.
5. Any doubt, pl contact with us, we will help you solve the problem asap.
Our workers are efficient and our sales are professional. we will try our best to make sure delivery your goods to your company. you will enjoy the good service.
Packaging:
Products are packed by high quality carton/wooden case, suitable for long distance ocean freight transportation as well as climates and with good resistance to moisture and shocks.
Delivery time:
1.If this kind of products is in stock, the product will be sent for you 1-7 days after payment.
2.If this kind of products is not in stock, the products will take about 7-25 days to produce.
