152mm PP Melt Blown Filter
General Description
The LY-HFPL filter cartridge is a new product developed by lvyuan water purification Equipment Co.,Ltd. In Guangzhou China. It has a 6inch/152mm large diameter, and it is coreless, single open-ended with an inside to outside flow pattern. the large diameter with big filter area insures to reduce the number of filter cartridges and the dimension of housing required. The long service life and high flow rate result in low investment and less manpowder in many applications. this kind of LY-FPL product has various application on water treatment.
LY-FPL high flow filter cartridge specification:
|
Filter media material
|
pleated glass fiber, pleated depth pp, pp melt blown.
|
|
Surpport
|
PP
|
|
End caps
|
glass fiber reinforced pp
|
|
Seal material
|
EPDM, NBR, VITON,TEFLON, etc
|
|
Pore size
|
1/4/5/10/15/20/40/70/100 micron
|
|
outer diameter
|
152 mm(6")
|
|
length
|
20/40/60inch
|
|
suggested max.flow of water
|
20 inch: 660LPM, 40 inch: 1300LPM, 60 inch : 1900LPM
|
|
max. operating temperature
|
pleated fiber glass:121℃, pleated pp : 82℃, pleated pp meltblown:65℃
|
|
max.differential pressure
|
pleated fiber glass:3.4 bar at 121℃, pleated pp : 3.4 bar at 82℃, pleated pp melt blown:1.03 bar at 65℃
|




1. Municipal tap water, prefiltration of Ro, Pre treatment of sea water desalination
2. Condensate water filtration, hot water recovery in power generation
3. API, solvents, and water filtration in Biopharm market.
4. The filtration of bottled water, high fructose, edible oil, soft drinks and milk.
5. Paints and coatings, petrochemical, refineries.
6. Microelectronics, film, fiber and resin.
7. Deionized water pre-filtration



1. 10 years professional manufacturer experience.
2. We provide OEM and ODM customization service, you can find all kinds of industrial water filter parts in our company.

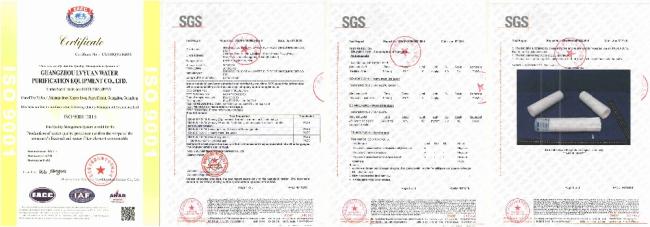

3. All products have quality warranty. Our Certification: CE ISO SGS
4. Our workers are efficient and our sales are professional, we will give the professional customized service.
5. Our products are exporting to more than 100 countries and regions.received a good reputation.
6. Many cooperator stand by us for many years.
7. We are determined to provide the best service and good quality to our global customers, we will be more and more professional company in the future.
