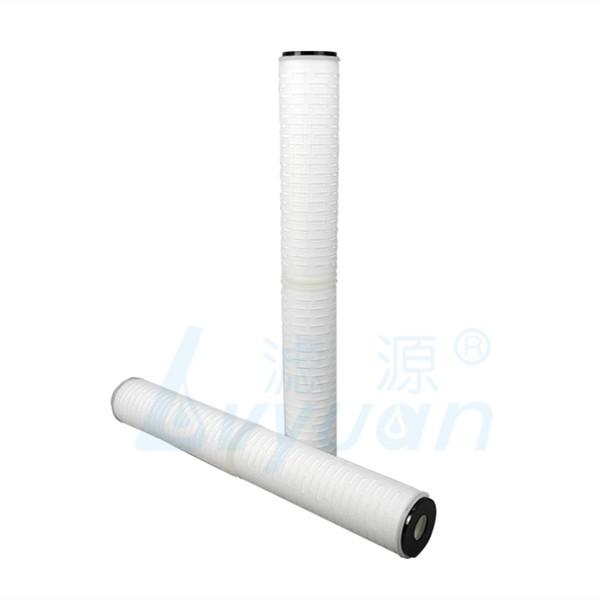

Beverage Filtration 20inch 0.2 Micron Pleated Membrane Filter Cartridge
PP Pleated filter cartridge deliver high efficiency and consistent filtration of fluids in a wide range of critical applications.They are constructed of pleated melt blown filter media tahe provides removal of particals from 0.1 to 50um.The high surface area ensures long service life and low initial pressure drops.All cartridge hardware components are made from high purity polypropylene materials for use in critical process application.
-high performance filter media
-Pleated configuration with high filtration area.
-large 6 inch(152mm) cartridge diameter suitable for high flow/high contaminant applications
-High mechnical strength
-Easily retrofit into exsiting size 1 and size 2 bag housings.
-The inside-to-outside fluid flow ensures the unwanted particles are trapped with the element.
|
Filter media material
|
PP(polypropylene)
|
|
Surpport/end cap/core
|
PP
|
|
Seal material
|
Silicone, EPDM.
|
|
Adaptors
|
DOE, 222lat, 222fin, 226flat, 226fin,
|
|
Pore size
|
0.1 to 50 micron
|
|
Outer diameter
|
69mm
|
|
length
|
20 inch
|
|
Effective filtration area
|
0.4-0.7㎡
|
|
Max. operating temperature
|
88℃,0.28Mpa.
60℃,0.42Mpa |
With years of manufacturing membrane filter cartridges, We accept customized adaptors, customized specification, customized filter media, pp, pes, pvdf, ptfe, nylon. pl feel free to contact me. Any request will respond within 20 hours.
Application
1. Filtration for electronic, mico-electronic and semiconductor water.
2. High pure chemical filtration
3. Medical liquid filtration
4. Food & beverage filtration
