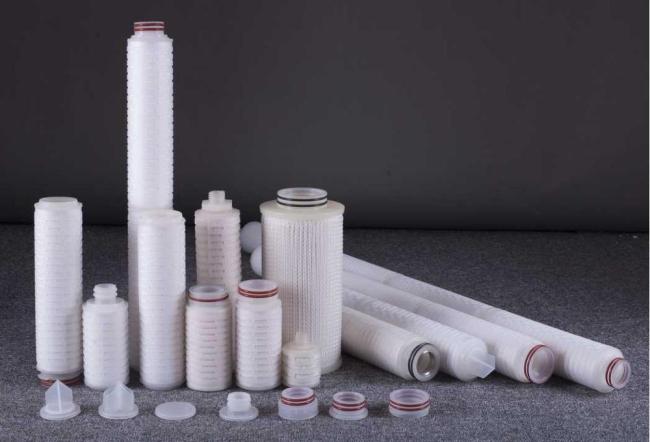

28mm ID PTFE PP Pleated Filter Cartridge With 226 222 Flat / Fin

0.2 micron pleated Ptfe PP cartridge filter for filter Housing with 226/222 Flat/Fin

Product Description

Basic Parameters

Length:5"/10"/20"/30"/40"

Filter Media:PTFE membrane  (PP, Nylon, PES, PVDF membrane option)

Micron Rate:0.2 micron, 0.45micron (and more as required)

End Cap:DOE,222+Fin,222+Flat,226+Fin,226+Flat

ID:30mm

OD:68mm

Gasket/O ring material:Silicon/EPDM/NBR/Viton/PTFE

Main Features

Excellent performance of high temperature resistance,repeat steam ability in situation

Has hydrophobic and hydrophilic membrane

Low pressure drop,high flow rate,long service life

Non fiber-releasing

Technical Data

effective filtration area:≥0.72m²(10 inch)

max.working pressure difference:  0.42Mpa at 25℃

max.back pressure difference:  0.35Mpa at 25℃

max. working temperature:80℃ at 0.173Mpa

sterilizing temperature:121℃, 30mins

water(air)flow rate:refer to following chart

Typical Applications

Pharmaceutical industry: medicine liquid, cell debris, biological products filtration.

Chemical industry: Organic solvents, chemical reagents, ink, plating solution filtration.

Food industry: Drinking water, mineral water, soft drinks, beer, red wine, fruit wine filtration.

Electronics industry: pre filtration of reverse osmosis water system, deionized water system.

Air filtration: fermentation tank, vent filter of hold tank,ultrapure gas filtration.

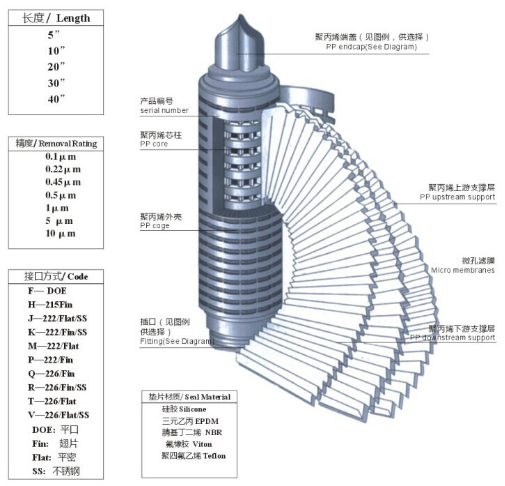

End Cap Choice

Package & Shipping

Company Honor

Company products certified by CE certification, the European Union BV, SGS certification and national health inspection and quarantine departments inspection report and the ministry of health approval documents issued by the hygiene license etc.
